GXV3240

Grandstream

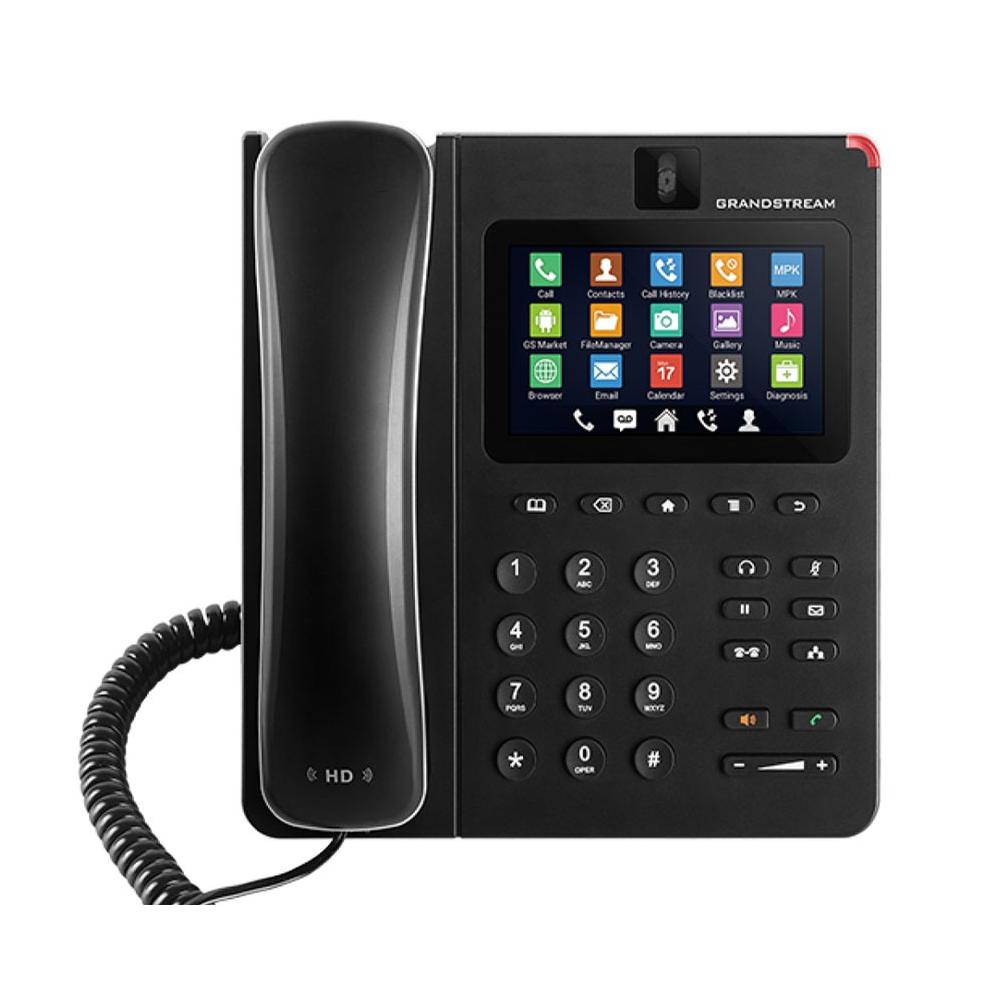

Grandstream GXV3240 Multimedia IP Phone, Video, HD audio, PoE, 6 Line


Model#: GXV3240

Sku: IT1071

Out of stock

Your Price: N/A


  • The GXV3240 Video IP Phone for Android™ combines a 6-line IP video phone with a multi-platform video conferencing solution and an Android smartphone to offer an all-in-one communications solution.

  • This Video IP Phone runs the Android Operating System and therefore offers full access to the many Android apps in the Google Play Store™, including popular productivity and business apps.

  • The phone features integrated Bluetooth, Gigabit ports, a built-in web browser, integrated WiFi, a 4.3 inch touch screen, HD audio and PoE. By combining the power of multiple devices into one, the GXV3240 is the ideal solution for all communication, productivity and video conferencing needs.

  • 4.3 inch (480×272) capacitive (5 points) touch screen TFT LCD, mega pixel CMOS sensor camera with privacy shutter.

  • 6 lines with up to 6 SIP accounts including FREE IPVideoTalk account with video mail, up to 6-way audio conference and 3-way video conference, phonebook with up to 1000 contacts, call history with up to 1000 records.

  • Integrate with Grandstream’s GXV-series of IP video surveillance cameras to view live camera feeds and to receive alerts/alarms from IP cameras installed on the same network.

  • HD wideband audio, full-duplex hands-free speakerphone with advanced acoustic echo cancellation.

  • Offers a multi-platform video conferencing solution (Grandstream’s Free IPVideoTalk, Skype, Microsoft Lync, and more)

  • Protocols / Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP

  • Network Interfaces: Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE

  • Graphic Display: 4.3"(480×272) capacitive (5 points) touch screen TFT LCD

  • Camera: Tiltable mega pixel CMOS camera with privacy shutter

  • Bluetooth: Yes, integrated. Bluetooth 4.0 + EDR

  • Wi-Fi: Yes, integrated. 802.11 b/g/n

  • Auxiliary Ports: RJ9 headset jack (allowing EHS with Plantronics headsets), USB, SD, Mini-HDMI, extension module port

  • Feature Keys: 11 function keys for PHONEBOOK, BACKSPACE, HEADSET, MUTE, HOLD, MESSAGE, TRANSFER, CONFERENCE, SPEAKERPHONE, SEND⁄REDIAL, VOLUME. 3 dedicated Android keys for HOME, MENU, and BACK

  • Voice Codecs: Support for G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus (pending), G.729 (pending), in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)

  • Video Codecs and Capabilities: H.264 BP/MP/HP, video resolution up to 480p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference, anti-flickering, auto focus and auto exposure, PIP (Picture-in-Picture), on-screen-display, camera block, still picture capture/store, video recording, visual voice message indicator

  • Telephony Features: Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 6-way audio conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable phone book (XML, LDAP), call waiting, call history, boss-secretary virtual button, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over

  • Sample Applications: Skype, Google Hangouts, Microsoft Lync, Web browser, Adobe Flash, Facebook, Twitter, YouTube, news, weather, stock, Internet radio, Pandora, Last.fm, Yahoo Flickr, Photobucket, alarm clock, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development

  • Applications Deployment: Allows Android OS version 4.2 compliant applications to be developed, downloaded and run in the embedded device with provisioning control

  • HD Audio: Yes, both handset and speakerphone support HD (wide-band) audio

  • Base Stand: Yes, integrated stand with 2 adjustable angles. Wall mountable

  • Extension Module: Yes, can power up to 4 GXP2200EXT modules which feature a 128x384 graphic LCD, 20 quick-dial/ BLF keys with dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit

  • QoS: Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

  • Security: User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control

  • Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more

  • Upgrade/Provisioning: Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file

  • Power & Green Energy Efficiency: Universal power adapter included: Input 100-240VAC 50-60Hz; Output 12VDC, 1.5A (18W) Integrated PoE+ (Power-over-Ethernet) 802.3at, Class 4

  • Physical: Dimension/ 196.5mm (W) x 206.2mm (L) x 85.2mm (H) Unit Weight/ 0.92kg; Package Weight: 1.45kg

  • Temperature and Humidity: Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing

  • Package Content: GXV3240 phone, handset with cord, base stand, universal power supply, network cable, lens cleaning cloth, quick installation guide, brochure, GPL license

  • Compliance: FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter) CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268
