GXV3611IR_HD-BD8

Grandstream

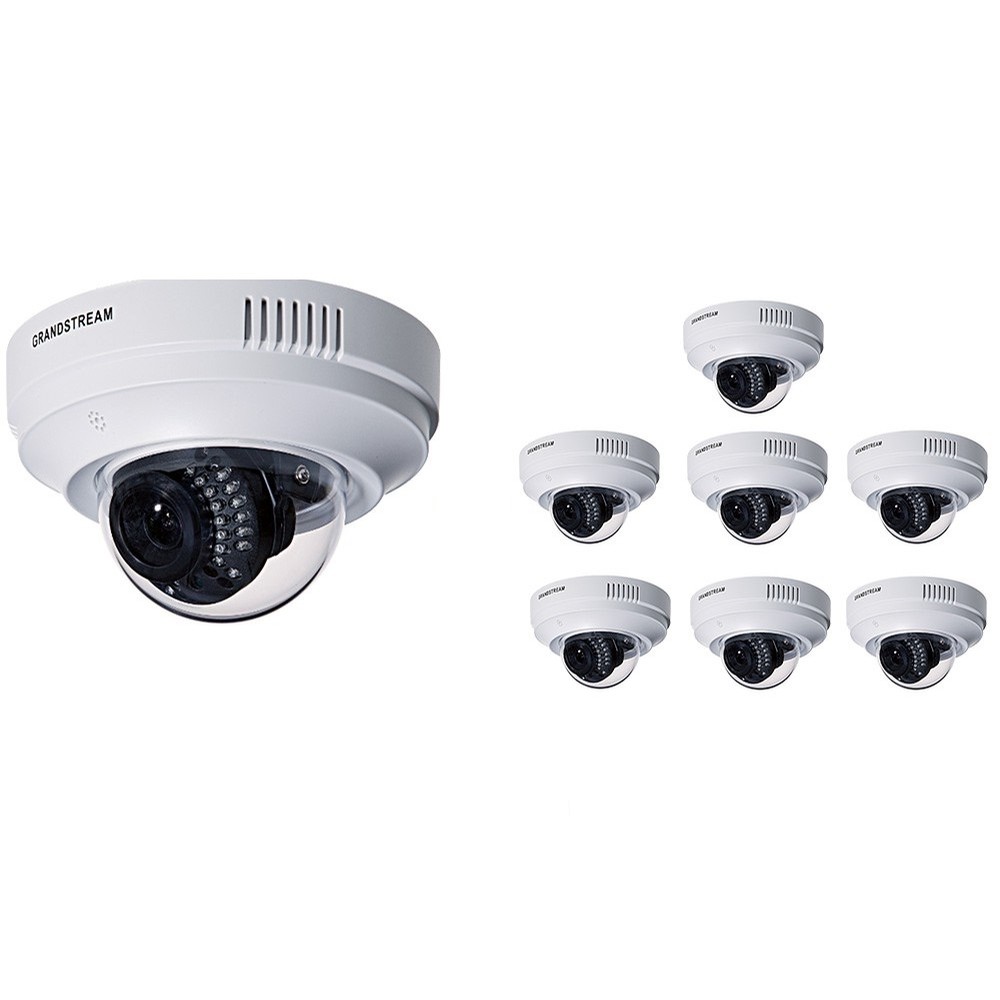

Grandstream Dome Camera GXV3611IR_HD Indoor Infrared Fixed IP Camera with Integrated Micro SDHC and PoE ( 8-PACK)


Model#: GXV3611IR_HD-BD8

Sku: IT1086

Out of stock

  • The GXV3611IR_HD is an indoor Infrared (IR) fixed dome IP camera with a high-definition 2.8mm lens – making it ideal for wide angle monitoring of nearby subjects in environments such as banks, hotels, retail, offices or building entrances.

  • The camera’s advanced Image Sensor Processor (ISP) is powered by a state of the art auto-exposure/auto-white-balance algorithm which allows for exceptional performance in all lighting conditions.

  • Pair the GXV3611IR_HD with Grandstream’s GVR3550 Network Video Recorder (NVR), which supports plug-n-play with all Grandstream IP cameras, to create a powerful recording and monitoring solution.

  • The GXV3611IR_HD can also be managed by GSURF Pro (Grandstream’s FREE Video Management Software that allows simultaneous control of up to 72 cameras) along with other ONVIF-compliant video management systems.

  • The GXV3611IR_HD IP camera features industry-leading SIP/VoIP for 2-way audio and video streaming to both video and smart phones.

  • It contains integrated PoE, IR-CUT for day and night mode, microphone, speaker, and a flexible HTTP API for easy integration with other surveillance systems.

  • High quality Megapixel CMOS sensor and 2.8mm HD lens

  • Advanced multi-streaming real-time H.264, Motion JPEG at full frame rate

  • Firmware Update and Factory Reset performed using the GS_Search utility tool

  • Supports Time-lapse photography

  • Embedded Video Analytics and SIP/VoIP/IMS support

  • Integrated micro SDHC interface for local embedded storage

  • High quality Megapixel CMOS sensor and 2.8mm HD lens

  • Advanced multi-streaming real-time H.264, Motion JPEG at full frame rate

  • Firmware Update and Factory Reset performed using the GS_Search utility tool

  • Supports Time-lapse photography

  • Embedded Video Analytics and SIP/VoIP/IMS support

  • Integrated micro SDHC interface for local embedded storage

  • Full ONVIF conformance with extensions

  • Smart IR for optimal White Balance and Exposure

  • High-performance streaming server allowing multiple simultaneous viewers

  • Automatic discovery by Windows “Network” (UPnP) or Apple Mac (Bonjour) with Safari native support if MJPEG is selected

  • Supports both variable bit rate and variable frame rate

  • Enhanced H.264 encoder for lower bit rate Automatic Provisioning via DHCP Option 66 Supports Privacy Masks, Disable Telnet to enhance security

  • Video Compression: H.264, MJPEG

  • Image Sensor Resolution: Megapixel Progressive Scan CMOS, 1280H x 720V

  • Image Sensor Sensitivity: Day & Night mode, exceptionally low noise levels and low-light sensitivity Shutter: 1/10000 – 1/30 second

  • Focal Length: 2.8mm

  • Aperture: F1.8

  • IR Cut Filter: Yes, Mechanical

  • Day & Night Mode: IR LED with Smart IR software control

  • Minimum Illumination: 0 lux

  • Pan: 176°

  • Tilt: 60°

  • Sensitivity: 3300mV / (lux-sec)

  • Supported Maximum Video Resolution and Frame Rate: 1280x720 (30fps)

  • Video Bit Rate: 32 Kbps ~ 8Mbps, Multi-rate for Preview and Recording

  • Audio Input: Built-in Microphone and 3.5mm Line-In

  • Audio Output: Built-in Speaker and 3.5mm Line-Out

  • Alarm Input: Yes, Vin < 15V, PINs

  • Alarm Output: Yes, 125VAC/0.5A, 30VDC/2A, Normal Open, PINs

  • Integrated Microphone: Yes

  • Integrated Speaker: Yes

  • SIP/VoIP Support’: Yes

  • Network Protocol: TCP/UDP/IP, RTP/RTCP, RTSP, DHCP, DDNS, HTTP, HTTPS, SMTP, FTP, NTP

  • Privacy Mask Support: Yes (4 zones)

  • Smart IR Support: Yes, optimal White Balance and Exposure

  • Time Lapse Photography: Yes

  • Micro SDHC Card Support: Yes, up to 32GB

  • Snapshots: Triggered upon Events, Sent via email and/or FTP

  • Audio Compression: G.711u/A, AAC

  • Embedded Analytics: Motion Detection (up to 16 target areas)

  • Pre-/Post-Alarm Recording: Yes

  • Power over Ethernet (PoE): IEEE 802.3af Class 2; 10M/100M Auto-sensing; 2KV Lighting Surge Protection

  • Cable Connections: External: RJ45 Ethernet, 3.5mm Line-In, 3.5mm Line-Out, Power Input Internal: PINs for Alarm-In and Alarm-Out

  • Dimensions (D x H): 138mm(D) x 86mm (H)

  • Weight: 0.4Kg

  • Temperature / Humidity: Operating: 0°C ~ +45°C (32°F ~ 113°F), 10-90% RH (non-condensing) Storage: -20°C ~ +60°C (-4°F ~ 140°F)

  • Power Adapter: Output: 12VDC/0.5A; Input: 100-240VAC, 50-60Hz

  • Casing: Plastic case for indoor use only

  • Compliance: FCC Part 15, Subpart B Class B; CE EN 55022 Class B, EN 61000-3-2, EN 61000-3-3 EN 55024, EN 60950-1; RCM AS/NZS CISPR 22 and CISPR24, AS/NZS 60950
