XR5

Ubiquiti

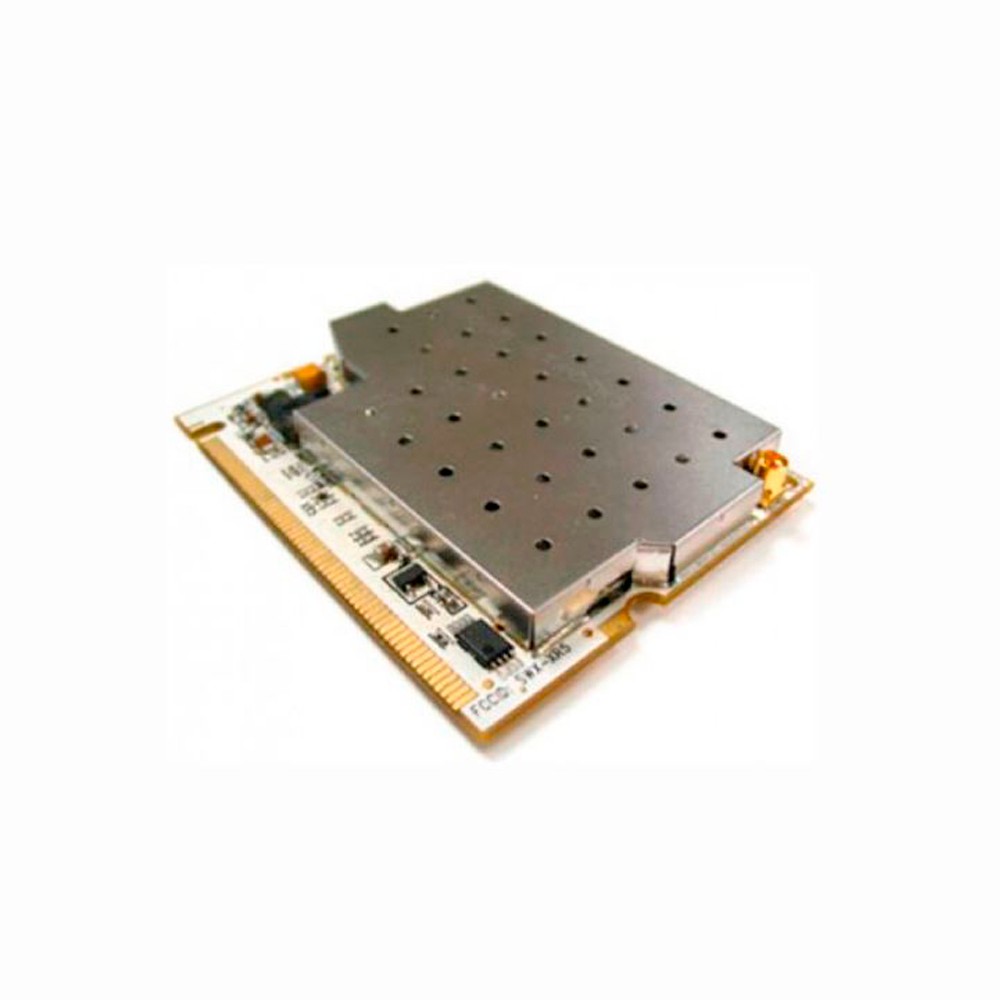

Ubiquiti XR5 XtremeRange 5 5GHz 802.11a 600mW Carrier-Class Radio Module proven 300+km Range


Product Highlights
  • The XtremeRange5 represents the first true carrierclass 802.11a based 5GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the highest levels of performance and reliability without compromise.
  • The XtremeRange series of radio modules by Ubiquiti leverages the knowledge and experiences gained from customer interaction, field performance evaluations, and lab research
  • Improves upon the original and highly successful SuperRange series of high-performance 802.11 radio cards
  • Temperature Range -40C to +80C (extended temp version up to +95C)
  • Chipset Atheros, 6th Generation, AR5414 with SuperA/Turbo Support

    • Model#: XR5

    Sku: IT1291



    MSRP: $119.99


    Out of stock

    Ubiquiti XR5 World-Record Breaker with Proven 300+km Range

    • The XtremeRange series of radio modules by Ubiquiti leverages the knowledge and experiences gained from customer interaction, field performance evaluations, and lab research -- and improves upon the original and highly successful SuperRange series of high-performance 802.11 radio cards.

    • The XtremeRange5 represents the first true carrier-class 802.11a based 5GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the highest levels of performance and reliability without compromise.

    • Chipset Atheros, 6th Generation, AR5414 with SuperA/Turbo Support

    • TX Channel Width Support 5MHz / 10MHz / 20MHz / 40MHz

    • Data Rates 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps

    • RoHS Compliance YES

    • Temperature Range -40C to +80C (extended temp version up to +95C)

    • Security WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP

    • Operation Voltage 3.3VDC

    • Antenna Ports Single MMCX

    • Radio Operation IEEE 802.11a, 5GHz

    • Interface 32-bit mini-PCI Type IIIA
