SR71-15

Ubiquiti

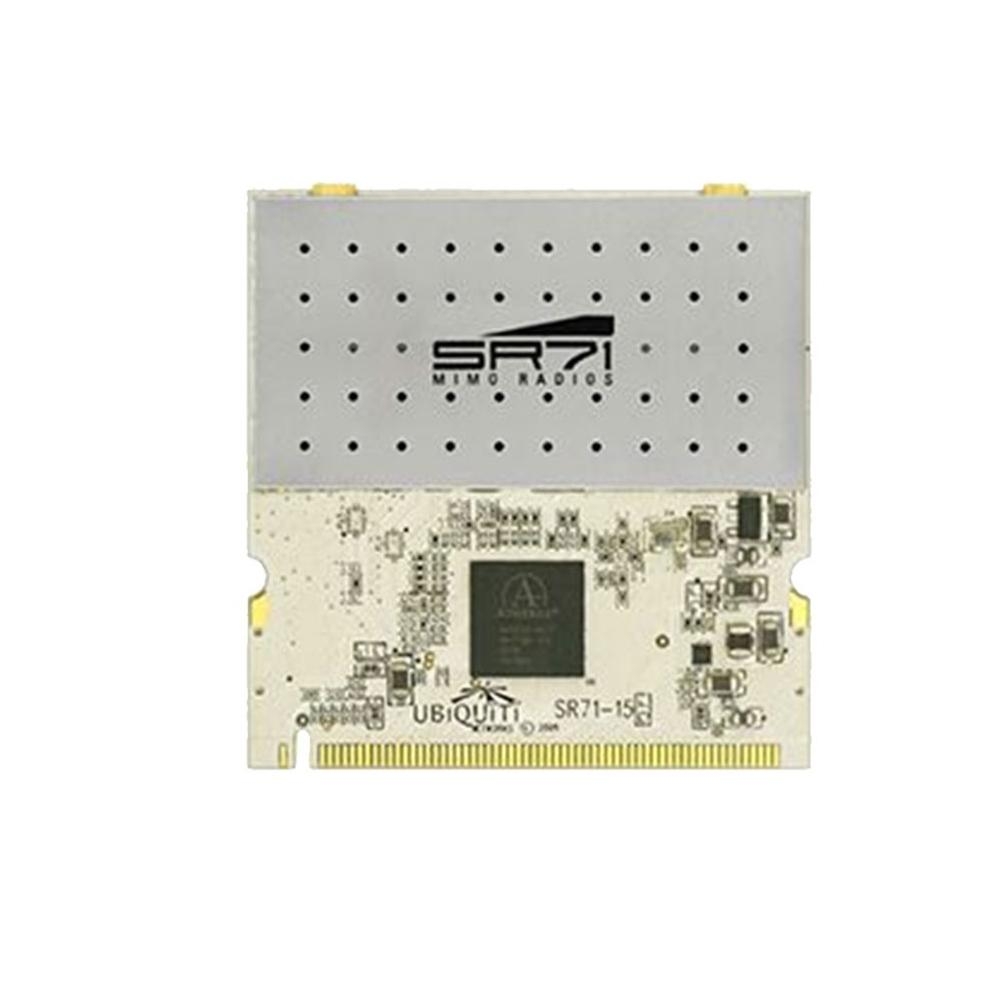

Ubiquiti SR71-15 Hi Performance 320mw 5GHz 802.11n Radio Module mini-PCI


Product Highlights
  • 5 GHz
  • 32-bit mini-PCI Type IIIA
  • 2x2 MIMO
  • 802.11a/b/g/n

    • Model#: SR71-15

    Sku: IT1296



    MSRP: $89.99

    In Stock

    Your Price: $79.99






    Model: SR71-15

    • The World's First 802.11a/n 5GHz Hi-Power mini-PCI Radio. Optimized for Hi-Speed Outdoor Backhaul Links. Two MMCX connectors for 2x2 MIMO Operation. Atheros AR9220 chipset with DFS support.

    Specifications

    • Chipset: Atheros AR9160 with DFS SUPPORT

    • Radio Operation: IEEE 802.11a/n

    • Interface: 32-bit mini-PCI Type IIIA

    • Operation Voltage: 3.3VDC

    • Antenna Ports: (2) MMCX for 2x2 MIMO Operation

    • Temperature Range: -20C to +70C (extended temp version up to +95C)

    • Security: 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP

    • Data Rates: up to 300Mbps

    • TX Channel Width Support: 20MHz / 40MHz

    • RoHS Compliance: YES

    • Hi-Power Frequency Operation: 5475-5725MHz(CE), 5745-5825(FCC)

    • Avg. TX Power: 27dBm, +/-2dB

    • Max Avg. Current Consumption: 1.25A, +/-100mA

    • RoHS Compliance: YES

    • Indoor Range (Antenna Dependent): over 150m

    • Outdoor Range (Antenna Dependent): over 50km

    • Operating System Support: Linux
