AM-2G16-90

Ubiquiti

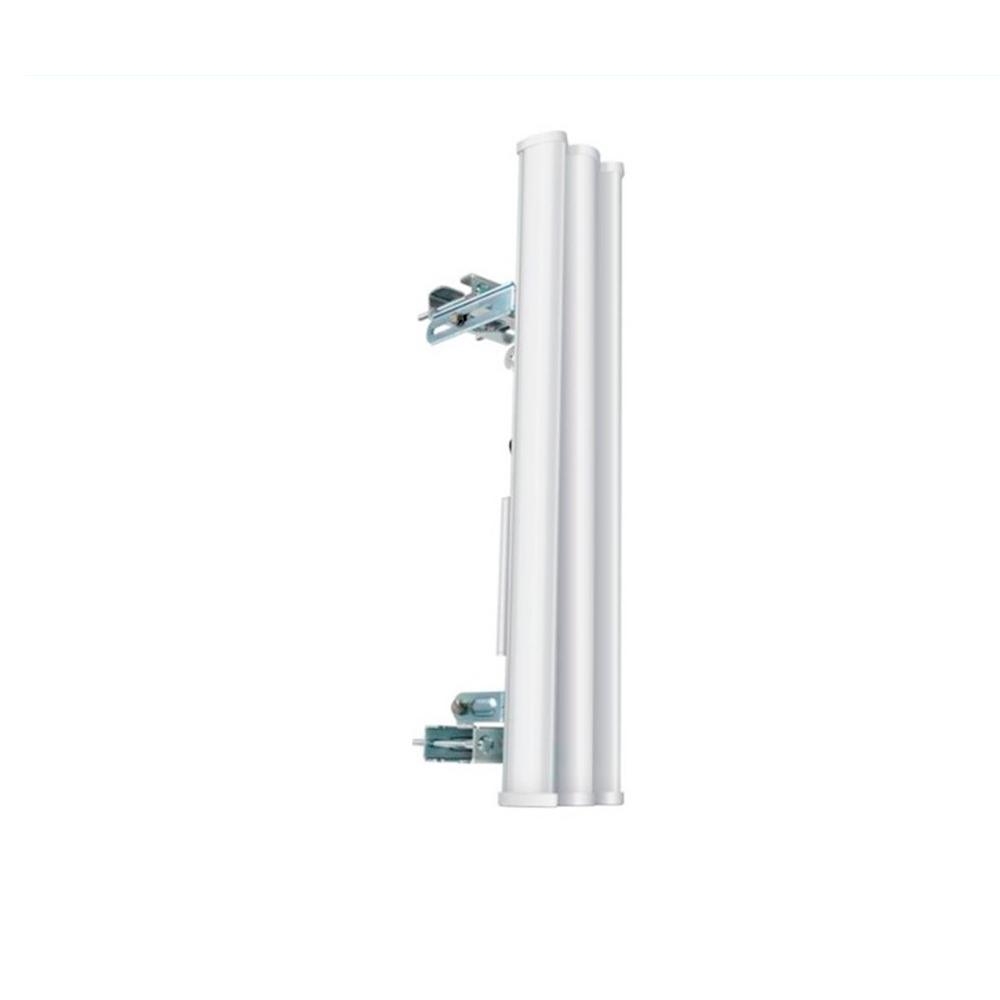

Ubiquiti Networks AM-2G16-90 2.4GHz airMAX 90° Sector 16dBi


Product Highlights
  • Ubiquiti AirMax Sector Antenna AM-2G16-90 BaseStation 2.4GHz 16dBi
  • Pair the airMAX Sector Antenna with a Rocket M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
  • The innovative airMAX Sector Antennas feature carrier-class construction and 2x2, dual-polarity performance.
  • The airMAX Sector models feature advanced RF isolation and adjustable beamwidth option: 90°
  • Every airMAX Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

    • Model#: AM-2G16-90

    Sku: IT1300



    MSRP: $169.00


    Out of stock

    Your Price: $169.00


    Model: AM-2G16-90

    Airmax 2.3-2.7GHZ Hi-Gain Base Station Antenna, Dual-Pol 90-Degree 16DBI

    AirMax BaseStation 2.4GHz Sector

    World Class Antenna Designs
    Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M2 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

    Rocket M Seamlessly Integrates with AirMax BaseStation Sectors

    Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

    Specifications AM-2G16-90

    Frequency Range 2.3-2.7 GHz
    Gain 16.0-17.0dBi
    Polarization Dual Linear
    Dual Linear DC jack or passive POE, min. 7V to max. 20V
    Cross-pol Isolation 28dB min
    Max VSWR 1.5:1
    Hpol Beamwidth (6dB) 91 deg.
    Vpol Beamwidth (6dB) 90 deg.
    Electrical Downtilt 4 deg.

    Datasheet

    PDF File Ubiquiti Networks AM-2G16-90 2.4GHz airMAX 90° Sector 16dBi
