AM-5G17-90

Ubiquiti

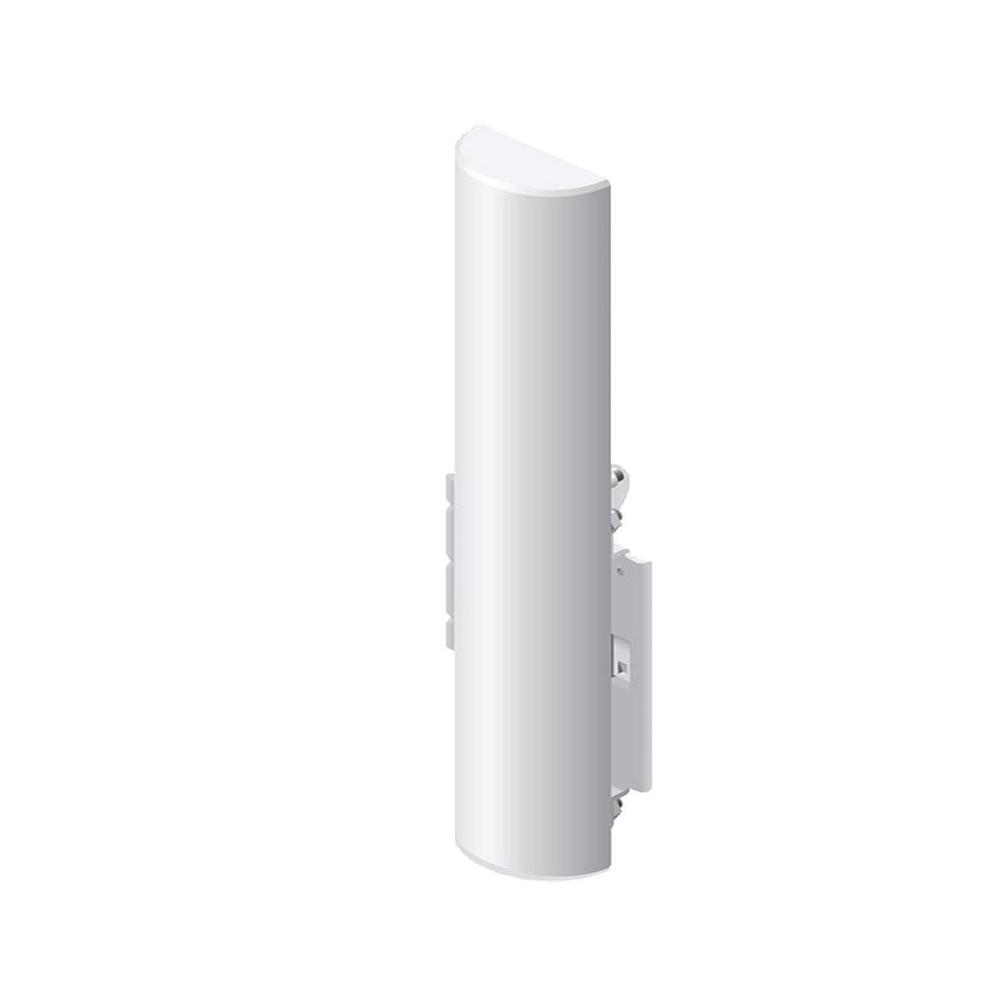

Ubiquiti Networks AM-5G17-90 5GHz airMAX 90° Sector 17dBi


Model#: AM-5G17-90

Sku: IT1302



MSRP: $99.99

In Stock

Your Price: $99.99






MODEL: AM-5G17-90

Ubiquiti Airmax 4.9-5.9GHZ Mid-Gain Base Station 17dBi Antenna, Dual-Pol 90-Degree 17DBI

AirMax BaseStation 5GHz Sector World Class Antenna Designs Patent-pending next-generation technology achieves gain, cross-pol isolation, and beam-shaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.

Rocket M Seamlessly Integrates with AirMax BaseStation Sectors Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specifications AM-5G17-90

Frequency Range 4.90-5.90 GHz
Gain 16.1-17.1dBi
Polarization Dual Linear
Cross-pol Isolation 22dB min
Max VSWR 1.5:1
Hpol Beamwidth (6dB) 72 deg.
Vpol Beamwidth (6dB) 93 deg.
Elevation Beamwidth 8 deg.
Electrical Downtilt 4 deg.

Datasheet

PDF File Ubiquiti Networks AM-5G17-90 5GHz airMAX 90° Sector 17dBi
