AM-5G19-120

Ubiquiti

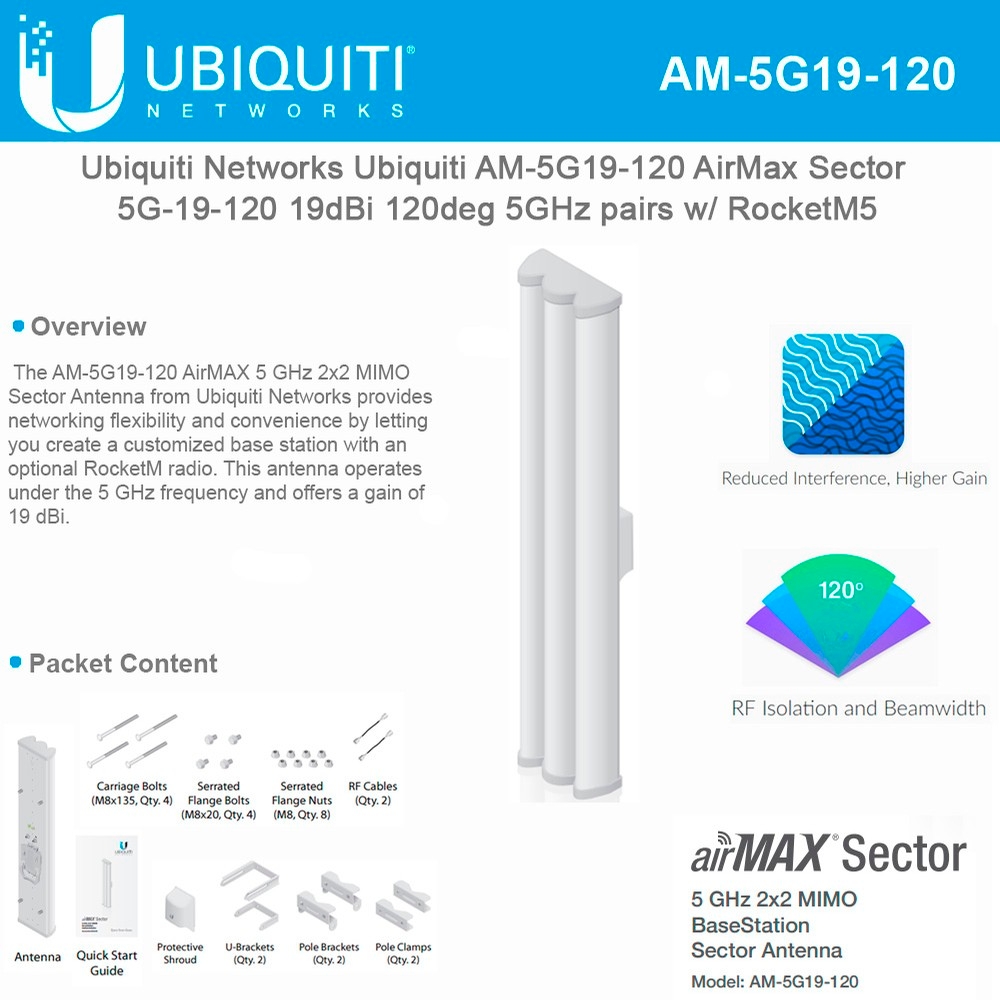

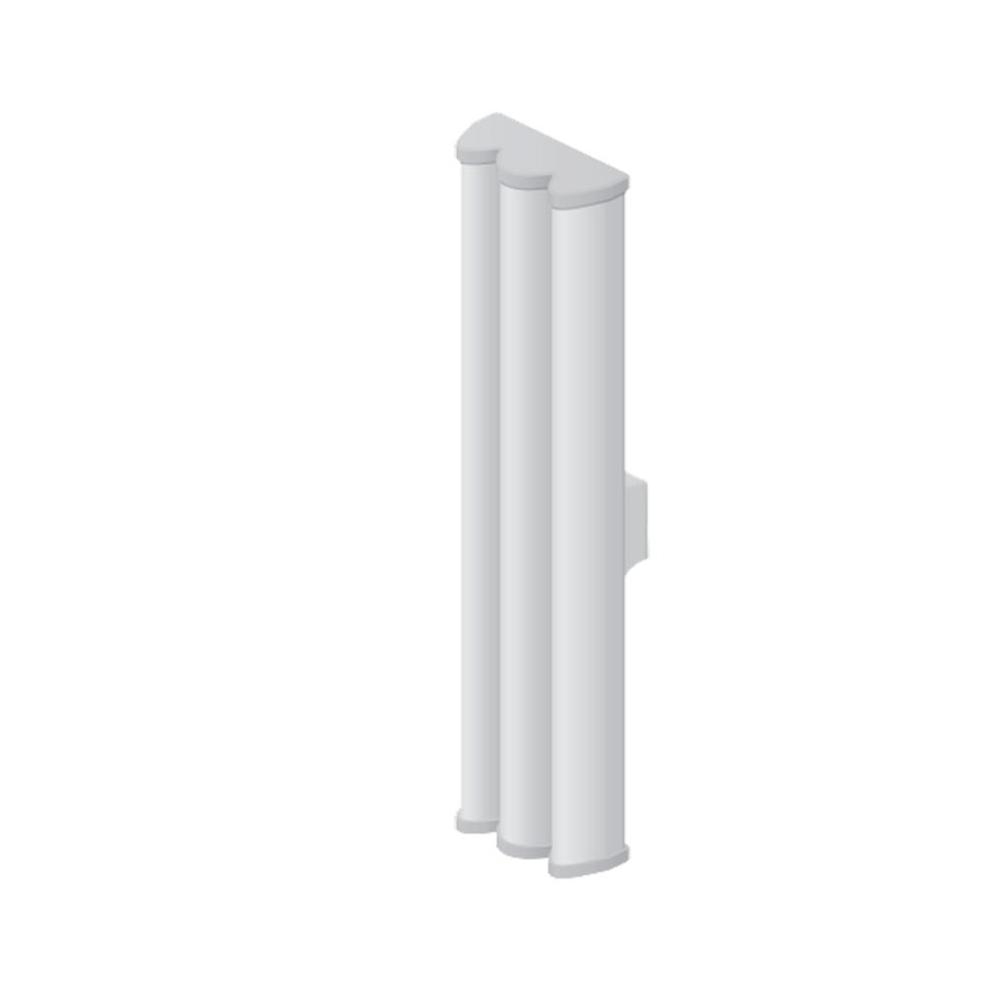

Ubiquiti Networks AM-5G19-120 5GHz airMAX 120° Sector 19dBi


Model#: AM-5G19-120

Sku: IT1303



MSRP: $149.99

In Stock

Your Price: $149.99






The airMAX Sector Antenna is a Carrier Class 2x2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).

Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.

  • 5.15 - 5.85 GHz
  • 18.6 - 19.1 dBi
  • Electrical Beamwidth: 4°
  • Electrical Downtilt: 2°
  • Dual-Linear Polarization
  • Universal Pole Mount (Included)
  • RocketM Bracket (Included)
  • Weatherproof RF Jumpers (Included)
  • Frequency Range: 5.10-5.85GHz

  • Gain: 18.6-19.1dBi

  • Polarization: Dual Linear

  • Cross-polarization Isolation: 28dB min

  • H-Pol beamwidth (6 dB): 123 deg

  • V-Pol beamwidth (6 dB): 123 deg

  • Elevation Beamwidth (6dB): 4 deg

  • Electrical Downtilt: 2 deg

  • ETSI Specification: EN 302 326 DN2

  • Dimensions: 700X145X79mm

  • Weight: 5.9kg

  • Wind Loading: 160 mph

  • Includes two SMA RP jack sockets for radio connections.

  • Antenna is supplied with two pigtails to connect a Rocket M5|


Datasheet

PDF File Ubiquiti Networks AM-5G19-120 5GHz airMAX 120° Sector 19dBi
