AM-3G18-120

Ubiquiti


Ubiquiti AM-3G18-120 3GHz 18dBi Sector Antenna pairs with RocketM3 or RocketM365


Model#: AM-3G18-120

Sku: IT1308



MSRP: $345.00

In Stock

Your Price: $345.00

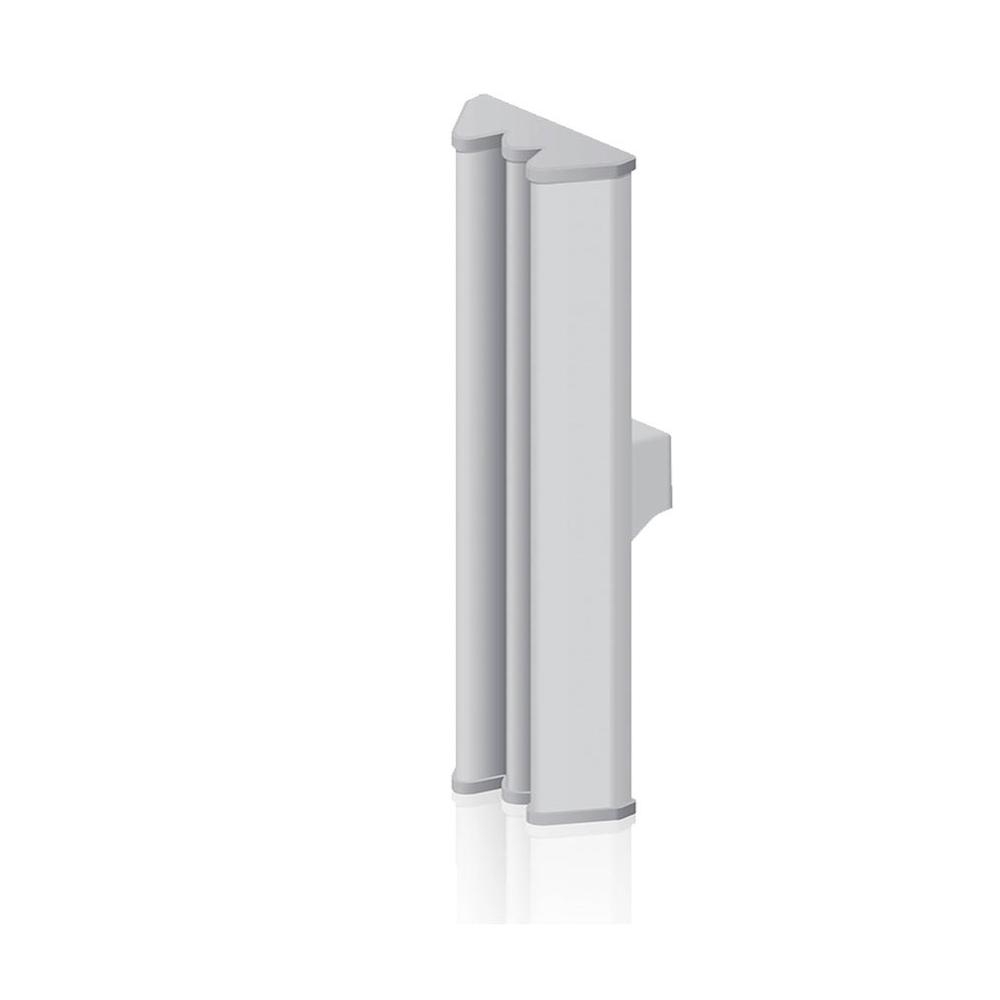

AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna

The AM-3G18-120 AirMAX 3 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 3 GHz frequency and offers a gain of 18 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

  • Seamlessly integrates with RocketM radios
  • Remarkable cross-polarization isolation
  • Scalability: High capacity and scalability
  • Long Distance: Capable of high-speed, carrier-class links
  • Up to 100 airMAX clients can be connected to an airMAX sector antenna
  • Revolutionary Cost/Performance Carrier Class 3GHz MIMO BaseStation Antenna
  • Instantly pair with RocketM365 to create a powerful AirMax 2x2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
  • Frequency Range 3.3-3.8 GHz
  • Gain 17.3-18.2 dBi
  • Polarization Dual Linear
  • Cross-pol Isolation 28dB min.
  • Max VSWR 1.5:1
  • Hpol Beamwidth (6dB) 118 deg.
  • Vpol Beamwidth (6dB) 121 deg.
  • Elevation Beamwidth 6 deg.
  • Electrical Downtilt 2 deg.
  • ETSI Specification EN 302 326 DN2
  • Dimensions 700x145x93mm
  • Weight 5.9 kg
  • Windloading 160 mph
