AG-HP-5G23

Ubiquiti

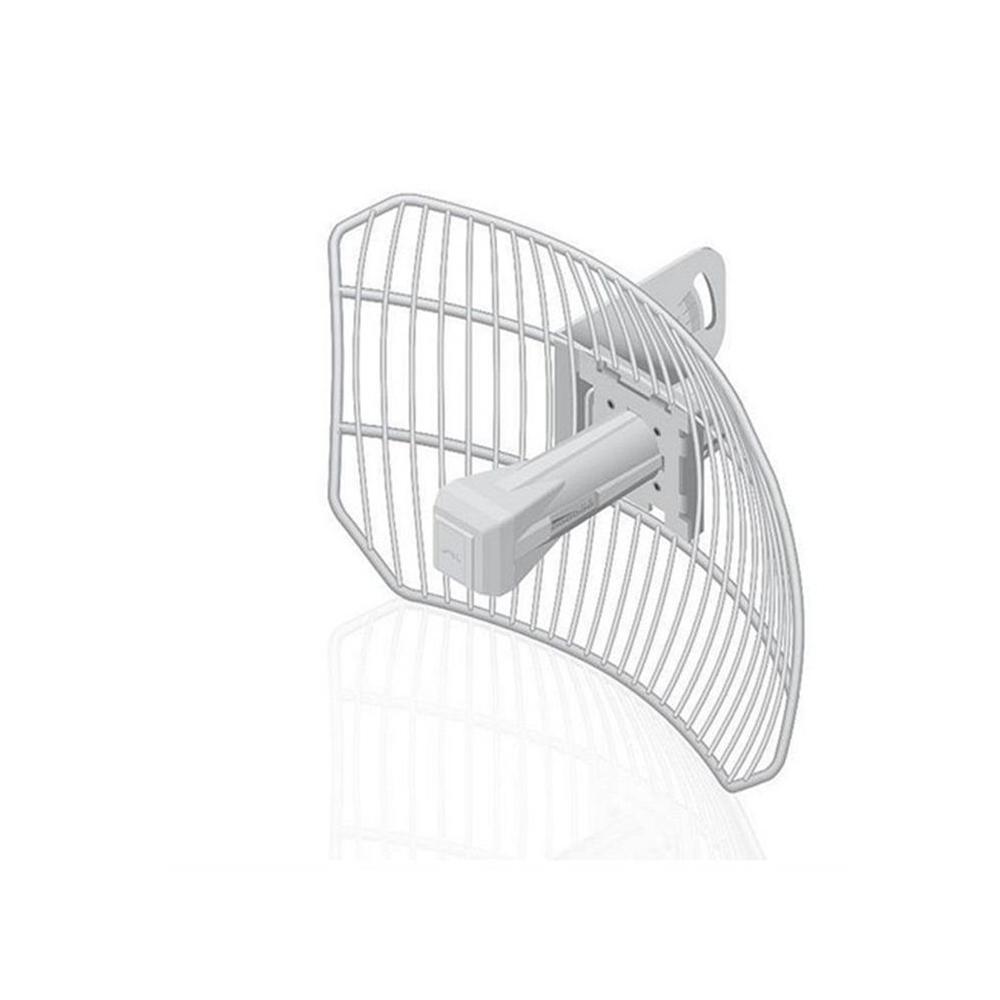

Ubiquiti Networks AG-HP-5G23 airGrid M5 HP 5 GHz High-Performance Integrated InnerFeed Antenna


Product Highlights
  • Deploy outdoor wireless broadband service with the AG-HP-5G23 airGrid M Wireless Broadband Antenna from Ubiquiti Networks.
  • This package includes five AG-HP-5G23 antennas. Boasting a range up to 18.6 miles and up to 100 Mb/s of data throughput, the 23 dBi antenna comes equipped with a Fast Ethernet port that supports PoE (Power over Ethernet).
  • The antenna is powered by a 560 MHz Atheros MIPS 74Kc, 64MB of DDR2 RAM and 8MB of flash memory.
  • Each antenna comes with a PoE adapter and a pole mounting kit.
  • Operates in the worldwide, license-free 5 GHz frequency range, and features performance of up to 100 Mb/s in real outdoor throughput and range of up to 18.6 miles.

    • Model#: AG-HP-5G23

    Sku: IT1320



    MSRP: $190.00


    Out of stock

    Your Price: $190.00


    AG-HP-5G23

    Is a high powered airMAX airGrid, manufactured by Ubiquiti Networks. Operating on 5GHz with 23dBi gain, it's a great all in one CPE solution.


    • Breakthrough Wireless Performance, airMax and airControl Support

    100+Mbps of real outdoor throughput and up to 30km+ range. airGrid products utilize Ubiquiti's revolutionary airMAX TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, airControl application allows operators to centrally manage 100's of devices.

    • Product Specifications:

      • Gain: 23dBI
      • Processor Specs: Atheros MIPS 74Kc, 560MHz
      • Memory Information: 64MB DDR2, 8MB Flash
      • Networking Interface: (1) 10/100 Ethernet Port
      • Wireless Approvals: FCC Part 15.247, IC RS210, CE
      • RoHS Compliance: Yes
      • Enclosure Characteristics: Outdoor UV Stabilized Plastic
      • Mounting Kit: Pole Mounting Kit (included)
      • Max. Power Consumption: 3W
      • Power Supply: 24V, 0.5A PoE Adapter (included)
      • Power Method: Passive Power over Ethernet (Pairs 4,5+; 7,8 Return)
      • Operating Temperature: -40 to 75°C (-22 to 167°F)
      • Operating Humidity: 5 to 95% non-condensing
      • Shock and Vibration: ETSI300-019-1.4
      • ETSI Specifications: EN 302 326 DN2
      • Dimensions: 370 x 270 x 260mm (14.57 x 10.63 x 10.24")
      • Weight (mount included): 1452g (3.201lbs)
      • Wind Survability: 200km/h (125mph)
      • Wind Loading: 58N @ 200km/h (13lbf @ 125mph)
      • Operating Frequency: 5170 - 5875MHz
      • Max. VSWR: 1.5:1
