ROCKETM3

Ubiquiti

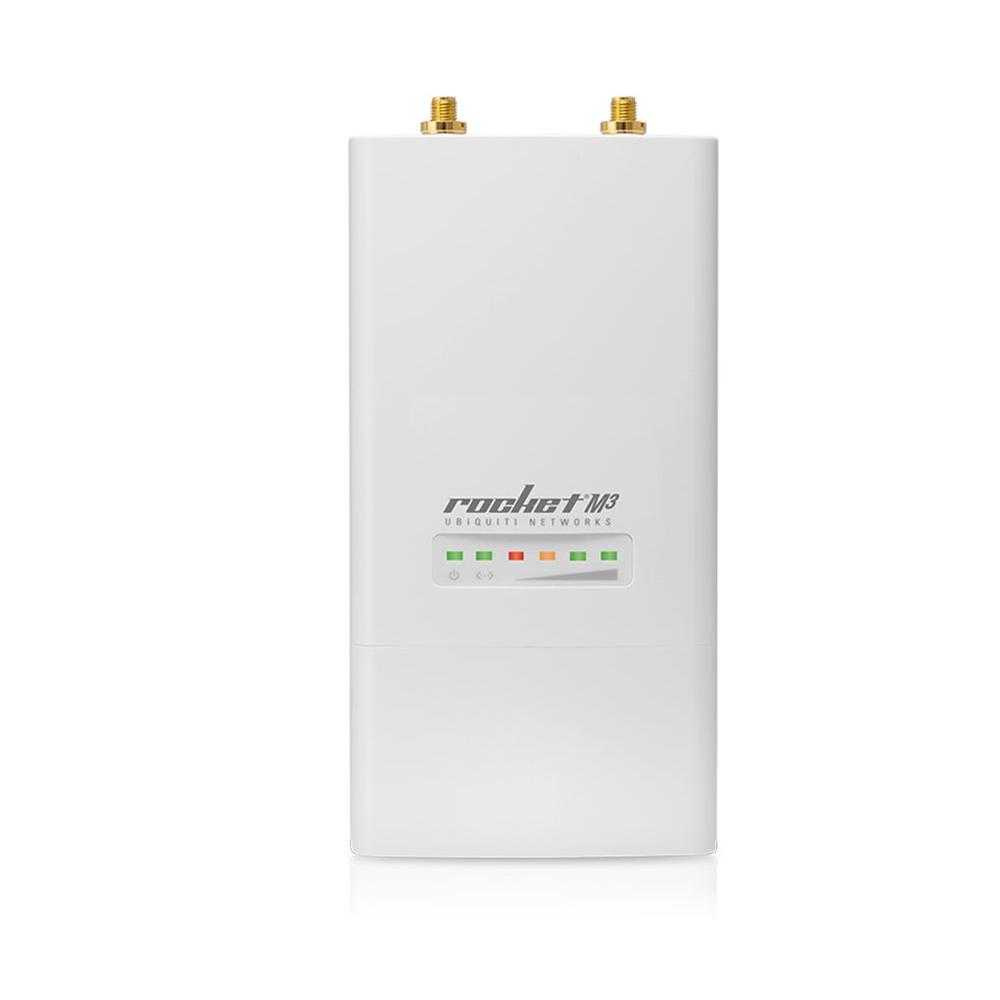

Ubiquiti ROCKET M3: 3.4-3.7GHz Hi Power 2x2 MIMO AirMax TDMA BaseStation.


Model#: ROCKETM3

Sku: IT1325



MSRP: $209.99


Out of stock

Model: ROCKETM3

  • The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications.

  • Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.





Model: ROCKETM3

  • Dimensions: 160 x 80 x 30 mm (6.30 x 3.15 x 1.18")
  • Weight: 500 g (1.1 lb)
  • Networking Interface: (1) 10/100 Mbps
  • RF Connectors: (2) RP-SMA (Waterproof)
  • Enclosure: Outdoor UV Stabilized Plastic
  • Max. Power Consumption: 6.5W
  • Power Supply: 24V, 1A PoE Adapter (Included)
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Certifications: CE, FCC, IC
  • Operating Temperature: -30 to 75° C (-22 to 167° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Shock and Vibration: ETSI300-019-1.4
  • Operating Frequency (Mhz): 3400 - 3730 MHz*
  • Processor: MIPS 24Kc
  • Memory: 64 MB SDRAM, 8 MB Flash
  • Networking Interface: (1) 10/100 Mbps
  • RF Connections: (2) RP-SMA (Waterproof )
  • LEDs: Power, Ethernet, (4) Signal Strength
  • Enclosure Characteristics: Outdoor UV Stabilized Plastic
  • ESD/EMP Protection: ± 24KV Air / Contact
  • Wireless Approvals: FCC, IC, CE
  • RoHS Compliance: Yes
  • Modes: Access Point, Station
  • Services: Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
  • Utilities: Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
  • Distance Adjustment: Dynamic Ack and Ackless Mode
  • Power Adjustment: Software Adjustable UI or CL
  • Security: WPA2 AES Only
  • QoS: Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
  • Statistical Reporting: Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
  • Other: Remote Reset Support, Software Enabled/Disabled, VLAN Support, 64QAM, 5/8/10/20/25/40 MHz Channel Width Support
  • Ubiquiti Specific Features: airMAX Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
