PBM3

Ubiquiti

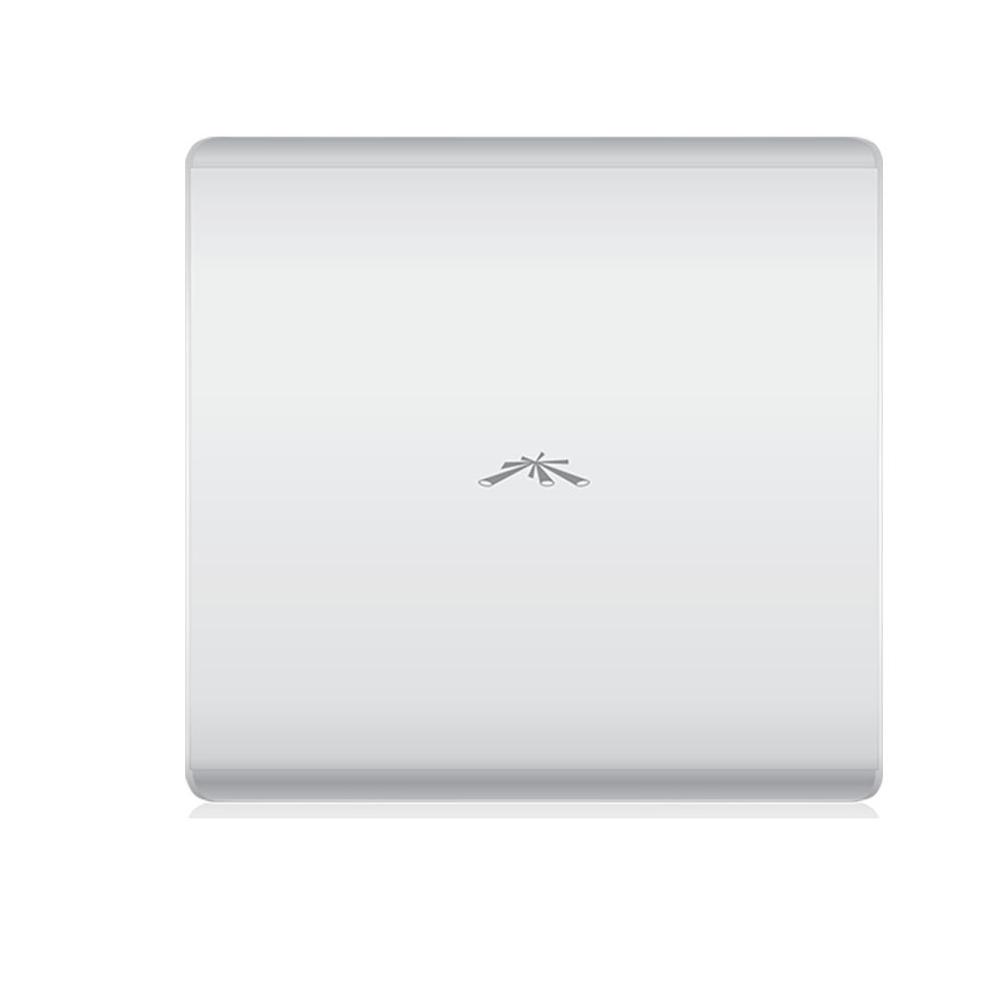

Ubiquiti PowerBridge M3 Carrier Class Licensed 3.5GHz AirMax Bridge up to 20km+ range carrier-class


Model#: PBM3

Sku: IT1343



MSRP: $449.95


Out of stock

Model: PBM3
Carrier Class Licensed 3.5 GHz AirMax Bridge

Featuring a leading edge hi-gain MIMO panel antenna array in a robust and compact design, the PowerBridge M series provide 150+Mbps of real outdoor throughput and up to 20km+ range. Featuring AirOS and Ubiquiti's revolutionary AirMax™ TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, AirControl™ application allows operators to centrally manage 100's of devices.

Model: PBM3

PowerBridge M3: Carrier Class Licensed 3.5GHz AirMax Bridge

  • Processor Specs: Atheros MIPS 24KC, 400MHz
  • Memory Information: 64MB SDRAM, 8MB Flash
  • Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
  • Wireless Approvals: FCC Part 90Y
  • RoHS Compliance: YES
  • Enclosure Size: 445 x 416 x 34mm
  • Weight: 3.82kg
  • Enclosure Characteristics: Outdoor UV Stabalized Plastic
  • Mounting Kit: Pole Mounting Kit included
  • Max Power Consumption: 8 Watts
  • Power Supply: 24V, 1A surge portection integrated POE adapter included
  • Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
  • Operating Temperature: -30C to +80C
  • Operating Humidity: 5 to 95% Condensing
  • Shock and Vibration: ETSI300-019-1.4
  • Frequency Range: 3.3-3.8GHz
  • Gain: 20 dBi
  • Polarization: Dual Linear
  • Cross-pol Isolation: 28dB minimum
