AF5x2

Ubiquiti

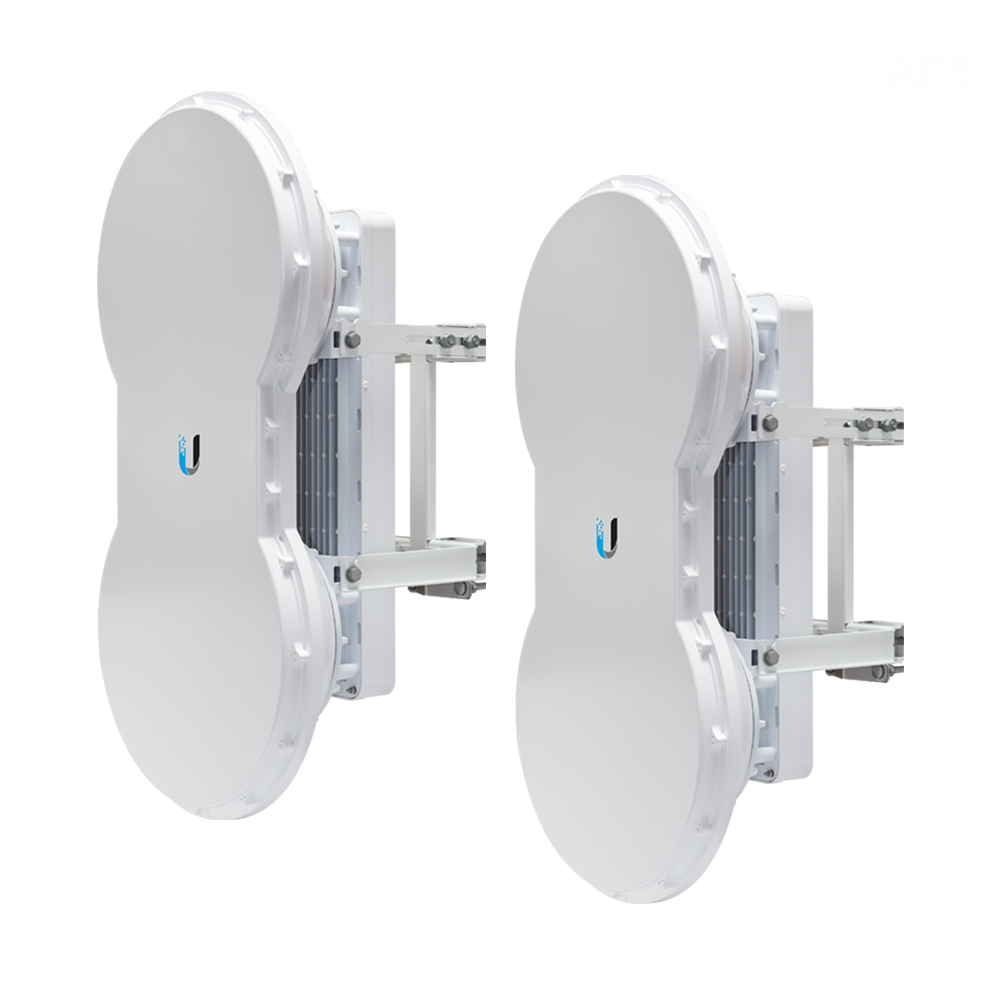

Ubiquiti airFiber AF5 2-PACK 5GHz Full Duplex PTP Gigabit Radio 100+km


Product Highlights
  • Operating on the 5 GHz frequency band, the AF-5 airFiber High-Band 5 GHz Carrier Class Point-to-Point Gigabit Radio from Ubiquiti Networks offers point to point connectivity at long distances of over 62 miles (100 kilometers).
  • Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.
  • Designed to be a high-performance backhaul, the airFiber®5 performs at a range of up to 100+ km.
  • The airFiber®5 supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.
  • The airFiber®5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).

    • Model#: AF5x2

    Sku: IT1392



    MSRP: $2,999.95


    Out of stock

    • Complete KIT 2 End Points.

    • Ubiquiti airFiber delivers gigabit performance at 1.0+ Gbps for airFiber AF5.

    • To put this in perspective, airFiber can transmit a 100 MB file in less than a second. Rivaling common broadband providers, airFiber download speed is up to 100x faster.

    • With speed and throughput surpassing conventional wired backhauls, airFiber prevails over expensive and labor-intensive wired infrastructures.



    • Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08 in)

    • Weight 16 kg (35.27 lb) Mount Included

    • Max. Power Consumption 40 W

    • Power Supply 50V, 1.2A PoE GigE Adapter (Included)

    • Power Method Passive Power over Ethernet (42-58VDC)

    • Certifications CE, FCC, IC

    • Mounting Pole Mount Kit (Included)

    • Wind Loading 863 N @ 200 km/hr (194 lbf @ 125 mph)

    • Wind Survivability 200 km/hr (125 mph)

    • Operating Temperature -40 to 55° C (-40 to 131°F)
