UVC-Dome-3

Ubiquiti

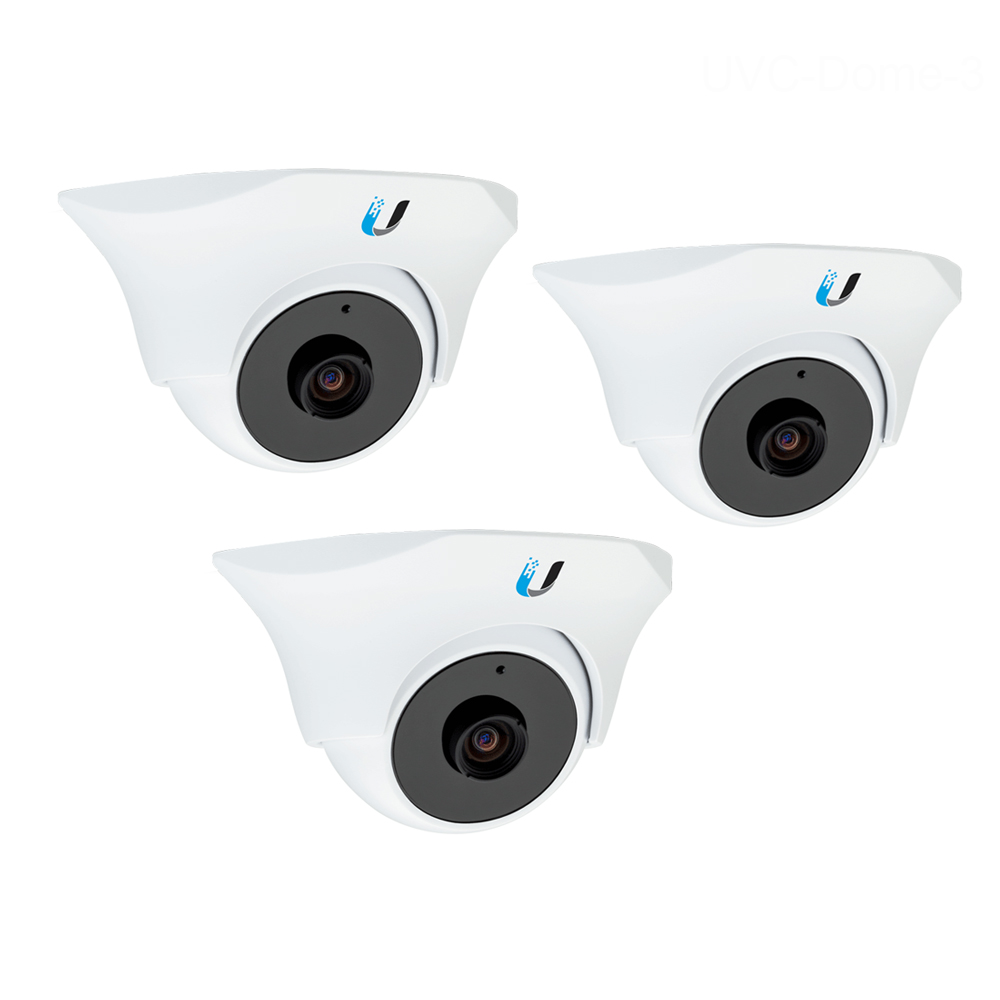

Ubiquiti Networks UVC-Dome-3 UniFi 720p Indoor Dome Video Camera with IR LEDs (3-Pack)


Model#: UVC-Dome-3

Sku: IT1395

Out of stock

This three-pack of the Ubiquity Networks UniFi 720p Indoor Dome Video Camera with IR LEDs comes with three cameras, each with a 1/4" CMOS sensor and powered by Power-over-Ethernet; you can mount the camera anywhere you can run an Ethernet cable without having to run separate power lines to the cameras. The camera features a 3.6mm f/1.8 lens that covers a wide viewing area. Built-in IR LEDs and IR cut filter that minimizes IR pollution of the images during daylight recording, moves out of the image path during IR recording, thus providing clear and sharp images during both day and night time recording.

The camera mounts to a ceiling, and includea a mounting kit for drop-ceiling tiles. It also has a built-in microphone for capturing audio, and records files locally to a user-supplied microSD card.

·  1280 x 720p video resolution
·  Minimum illumination of 0 lux with IR on
·  IR cut filter for day (color) video, that automatically moves out of the image path when the IR LEDs activate
·  The camera works with an available Ubiquity Networks UniFi NVR, not included. You can download and install software to allow you to interface with the camera from a compatible Windows or Linux computer

General
Processor: ARM 1136J-S, 528 MHz
Memory: 256 MB DDR3
Viewing Angle:
88.8° (H)
63.0° (V)
98.2° (D)

Video
Compression: H.264
Resolution: 720p
Frame Rate: Max: 30 FPS
Image Settings:  Brightness
Contrast
Sharpness
Saturation
Noise Reduction
Mirror
Flip
50/60 Hz

Specifications
Sensor:  1/4" CMOS
Lens
 Focal Length: 1.96mm
Maximum Aperture: f/2.0
IR:  850 nm
Microphone: Yes
Interface: 10/100 Ethernet Port, microSD card slot
Power: Passive PoE (12 to 24 VDC)
Maximum Power Consumption: 4W
Indicator LEDs
Power: Amber
Link/Activity: Green
Mounting: Ceiling
Certifications: CE, FCC, IC
Operating Temperature              : 32 to 104°F (0 to 40°C)
Operating Humidity: 20 to 90% Non-condensing
Dimensions (Ø x D): 3.8 x 4.4" / 96 x 111 mm
Weight:  6.3 oz (178 g)
