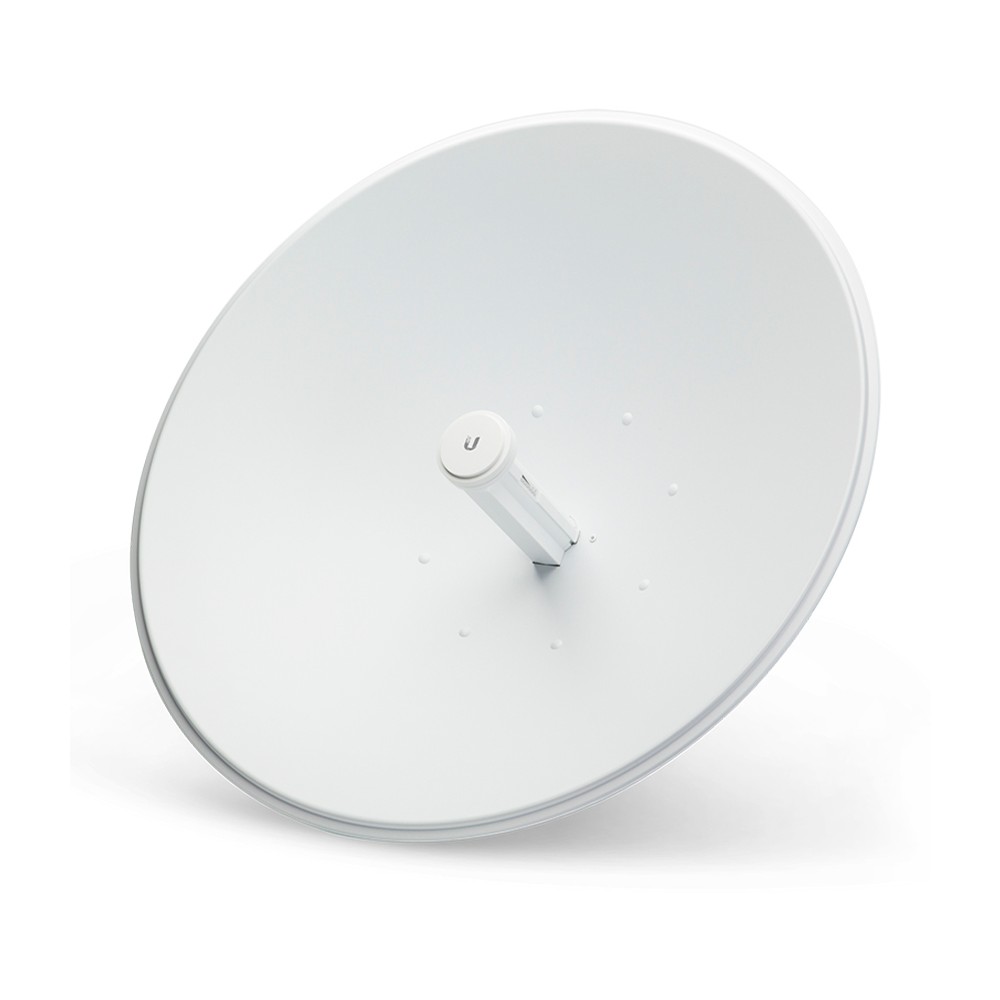

Ubiquiti PBE-M5-620 PowerBeam airMAX Bridge from Ubiquiti Networks features an all-in-one design functioning as a CPE (Customer Premises Equipment).
Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
The form factor of the PowerBeam enables high gain and enhanced beam directivity which provides optimal performance in high-noise environments. Ubiquiti's airMAX technology exhibits enhanced performance in outdoor environments.
The TDMA airMAX protocol enables optimal scalability, high throughput and low latency in unlicensed, multi-point networks.
The PowerBeam is plug-and-play and requires no tools for assembly.
airOS is a highly developed, user-friendly Ubiquiti firmware technology. Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality.
With built-in mechanical tilt, the mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
Dimensions 620 x 620 x 386 mm (24.41 x 24.41 x 15.2")
Weight 6.4 kg (14.11 lb)
Power Supply 24V, 0.5A Gigabit PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5W
Gain 29 dBi
Operating Frequency
Worldwide
USA
Wind Loading 872 N @200 km/h (196 lbf @125 mph)
Wind Survivability 200 km/h (125 mph)
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
5170 - 5875 MHz
5725 - 5850 MHz
