PBE-M5-300 US

Ubiquiti


Ubiquiti Networks PBE-M5-300-US 5GHz PowerBeam M5 22dBi 300mm US



Product Highlights
  • 5 GHz
  • 22 dBi 300 mm
  • (1) 10/100 Ethernet Port
  • Atheros MIPS 74Kc, 560 MHz
  • 24V, 0.5A PoE
  • Model#: PBE-M5-300 US

    Sku: IT1404

    Out of stock

    Your Price: N/A


    Model: PBE-M5-300-US

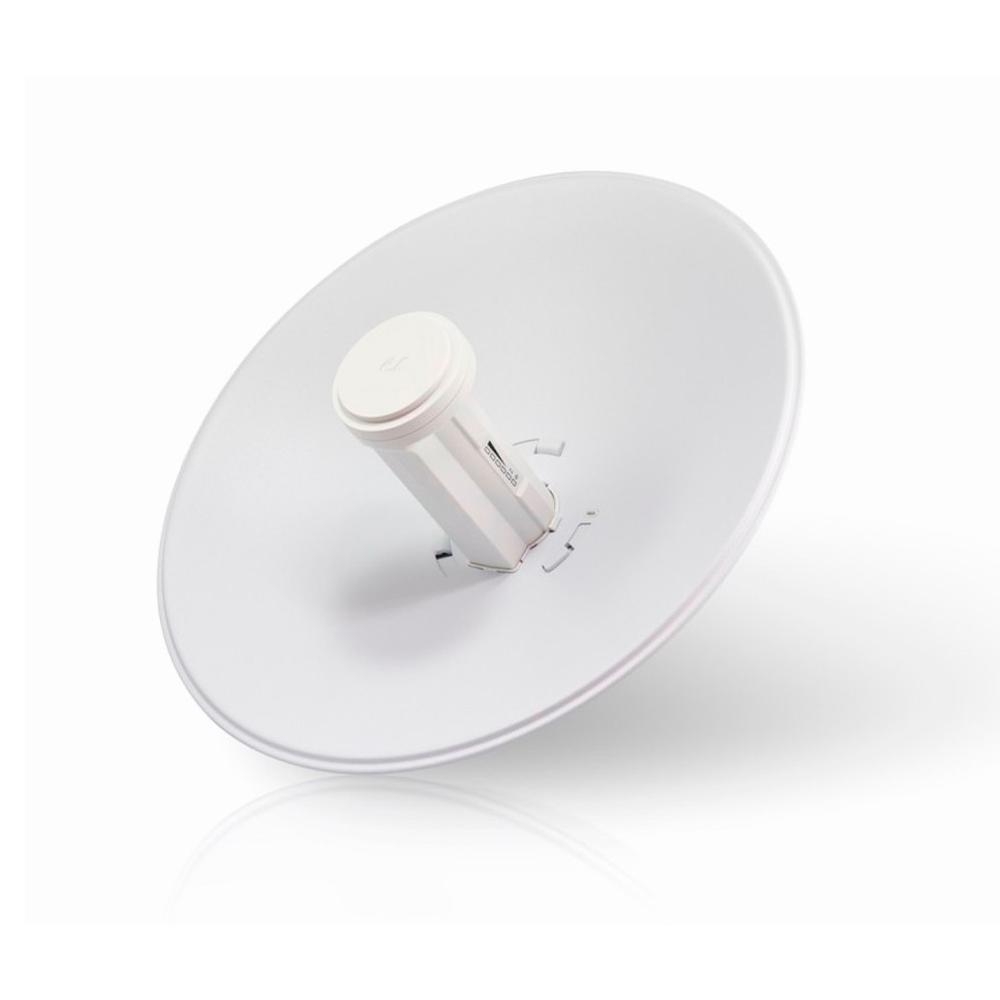

                                          PowerBeam M5

                                           High-Performance airMAX Bridge

    Incorporating a dish reflector design witth advanced technology, the PowerBeam is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.

    The PBE-M5-300 US is an airMAX PowerBeam M5 CPE. Designed for long distance links, this 5GHz 22dBi CPE uses InnerFeed technology for a smaller form factor.The new PowerBeam M has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The PowerBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design.



    • Integrated Radio Design

    Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.



    • Incredible Antenna “Beam” Performance

    The form factor of the PowerBeam features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.

    • Advanced Software Technology

    Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.



    Processor Specs

    • Atheros MIPS 74Kc, 560 MHz

    Memory

    • 64 MB DDR2, 8 MB Flash

    Networking Interface

    • (1) 10/100/1000 Ethernet Port

    Dimensions

    • 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")

    Weight

    • 1.753 kg (3.87 lb)

    Gain

    • 22 dBi

    Operating Frequency

    • USA 5 GHz

    Channel Sizes

    • 5/8/10/20/30/40 MHz

    Polarization

    • Dual Linear

    Enclosure

    • Outdoor UV Stabilized Plastic


    Datasheet

    PDF File Ubiquiti Networks PBE-M5-300-US 5GHz PowerBeam M5 22dBi 300mm US
