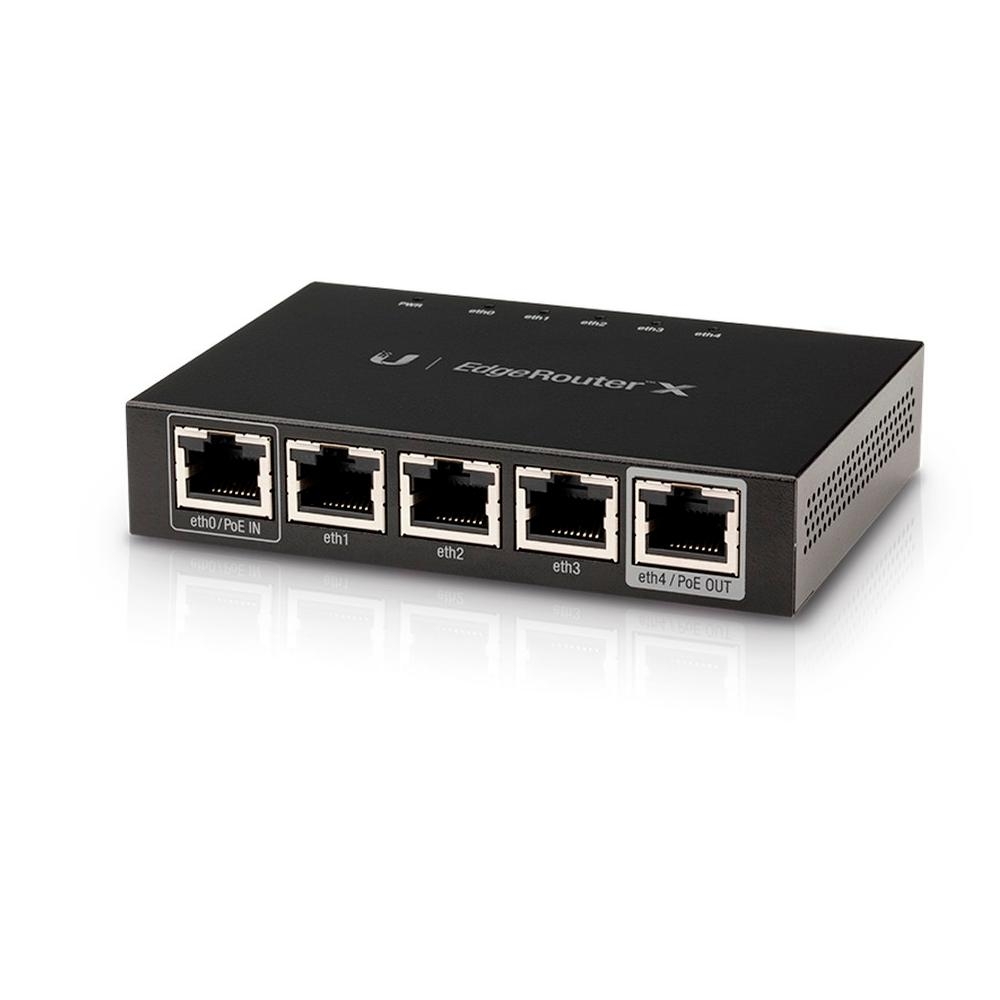

Ubiquiti Networks ER-X EdgeRouter X 5-Port Gigabit PoE
Product Highlights
Model#: ER-X
Sku: IT1428
MSRP: $67.99
Out of stock
Your Price: $67.99
Model: ER-X
Ubiquiti Networks introduces the EdgeRouter™ X, part of the EdgeMAX® platform. The EdgeRouter X combines carrier?class reliability with excellent price?to?performance value in an ultra?compact form factor
Powered by a proprietary and intuitive graphical interface, EdgeOS™, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Specifications ER-X
| Dimensions | 110 x 75 x 22 mm (4.33 x 2.95 x 0.87") |
| Weight | 175 g (6.17 oz) |
| Max Power Consumption | 5W |
| Max total PoE Output | 50W @ 24V |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Button | Reset |
| LED | Power, Ethernet 0-4 |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| System Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Certifications | CE, FCC, IC |
| Wall-Mount | Yes |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Data/PoE Output Port | (1) 10/100/1000 RJ45 Port |
| Data Port | (3) 10/100/1000 RJ45 Ports |
| Data/PoE Passthrough Port | (1) 10/100/1000 RJ45 Port |
