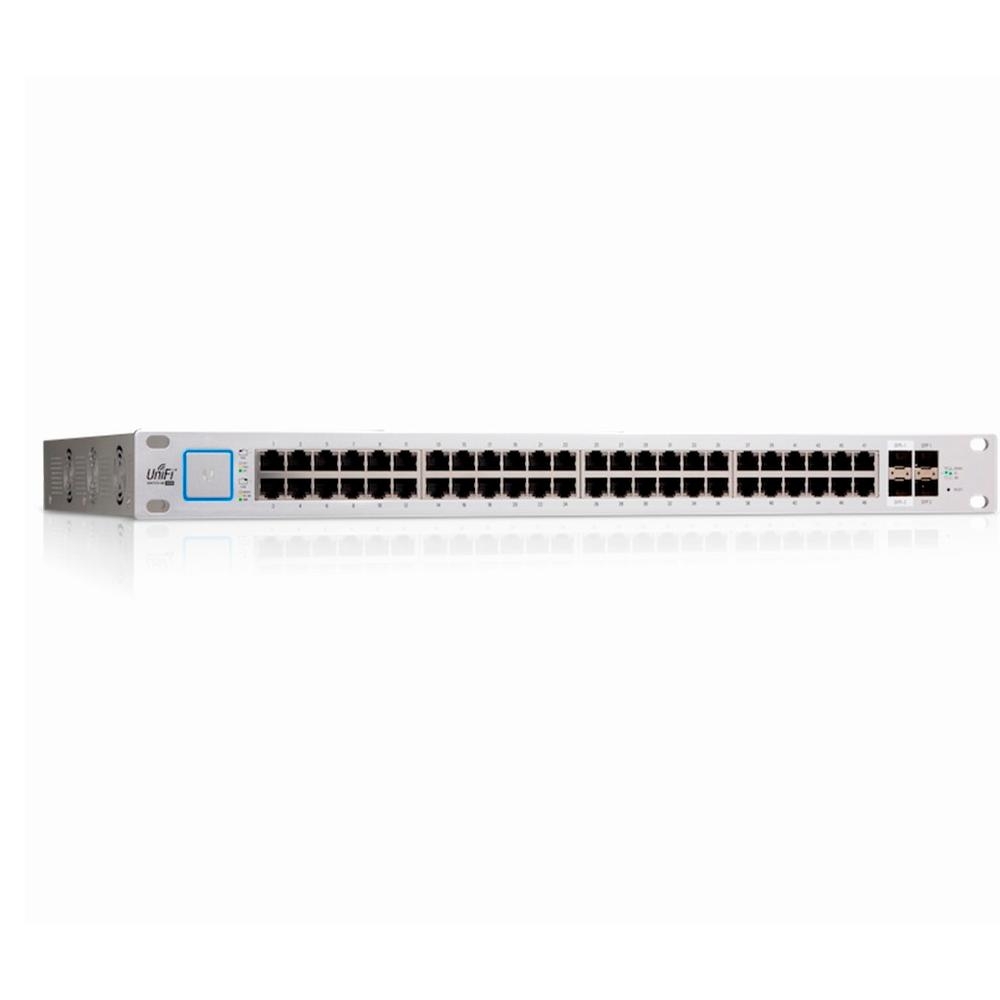

Model: US-48-500W
Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The UniFi® Switch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) - as well as 802.1X Authentication and Radius VLAN support.
Optical Fiber Connectivity
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
The UniFi® Switch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.
Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
Weight | 6.1 kg (13.5 lb) |
Total Non-Blocking Throughput | 70 Gbps |
Switching Capacity | 140 Gbps |
Forwarding Rate | 104.16 Mpps |
Max. Power Consumption | |
Including PoE Output | 500W |
Excluding PoE Output | 64W |
Power Method | 100-240VAC/50-60 Hz, Universal Input |
Power Supply | AC/DC, Internal, 500W DC |
LEDs Per Port | |
RJ45 Data Ports | PoE, Speed/Link/Activity |
SFP Data Ports | Speed/Link/Activity |
Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
Management Interface | (1) RJ45 Serial Port Out-of-Band (Reserved for Future Use), Ethernet In-Band |
Certifications | CE, FCC, IC |
Rack Mount | Yes, 1U High |
ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
Operating Temperature | -5 to 40° C (23 to 104° F) |
Operating Humidity | 5 to 95% Noncondensing |
Shock and Vibration | ETSI300-019-1.4 Standard |
PoE Per Port | |
PoE Interfaces | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
Max. PoE+ Wattage per Port by PSE | 34.2W |
Voltage Range 802.3at Mode | 50–57V |
Max. Passive PoE Wattage per Port | 17W |
24V Passive PoE Voltage Range | 20-27V |
