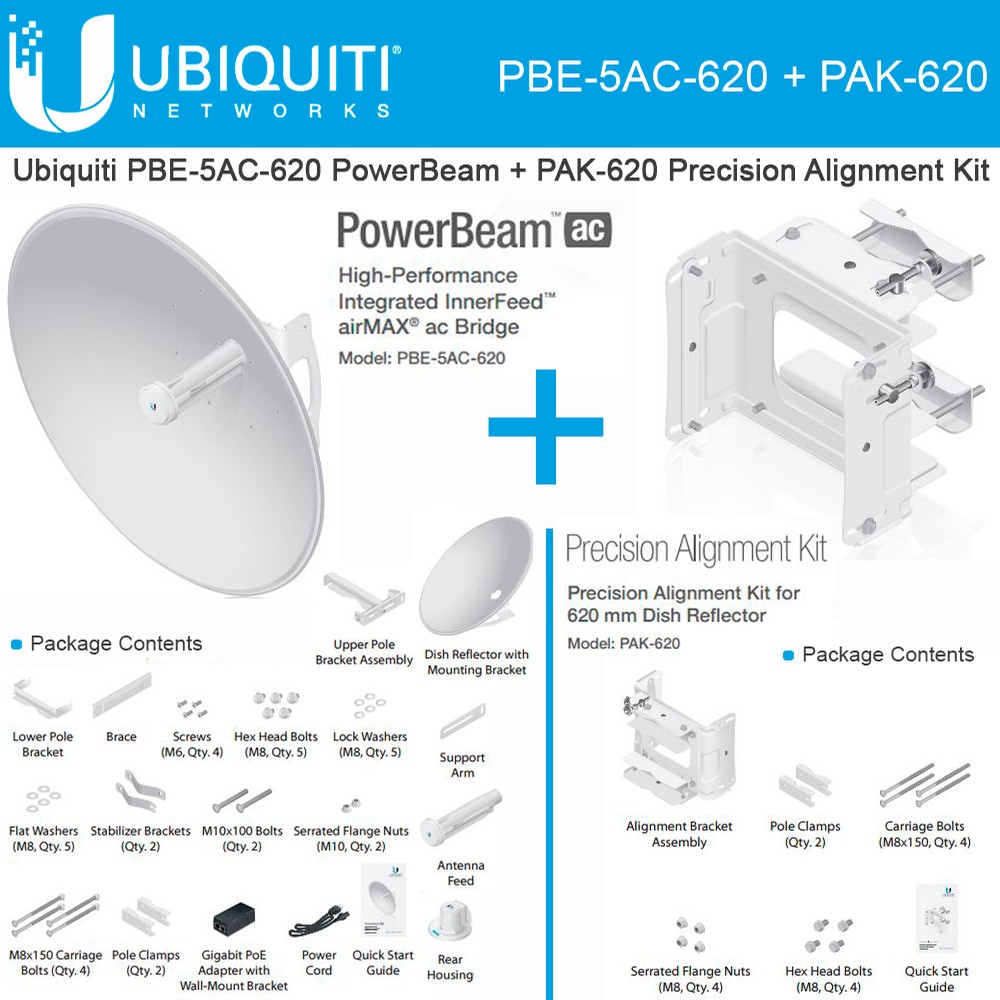

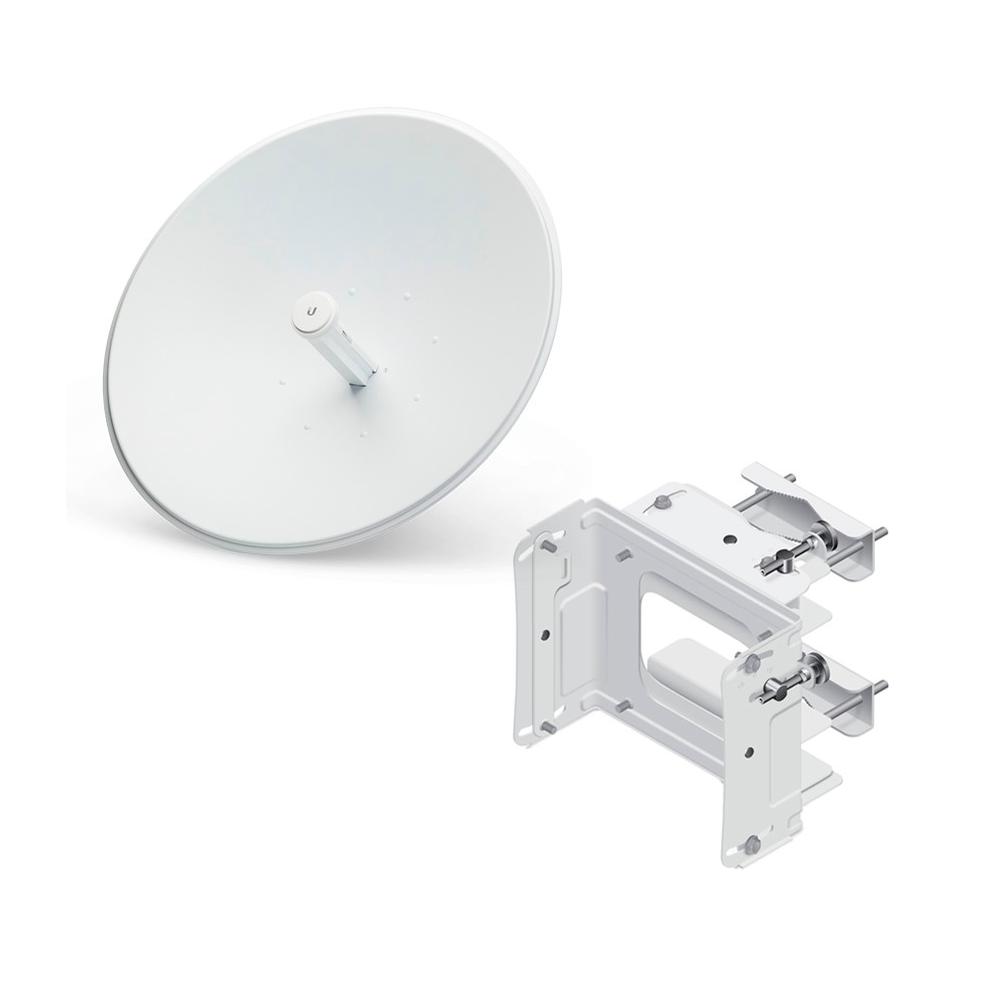

Model: PBE-5AC-620-US

                                     PowerBeam AC

                                      High-Performance airMAX ac Bridge

The PBE-5AC-620-US PowerBeam ac High-Performance airMAX Bridge from Ubiquiti Networks is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 150+ Mb/s and also offers wide range of 25+ km.

 It supports airMAX ac protocol and has a long-range Point-to-Point (PtP) link mode. This offers selectable channel width of 10/20/30/40/50/60/80 MHz in PtP and 10/20/30/40 MHz in PtMP. Integrated airMAX ac technology boosts the advantages of proprietary TDMA protocol. The mounting bracket of the PowerBeam offers 20° of uptilt and 10° of downtilt, while the mounting bracket offers ± 15° of tilt.



• Integrated Radio Design

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

• Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

• Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

• Incredible Antenna “Beam” Performance

The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

• Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks



Model: PAK-620

The Precision Alignment Kit enables extremely accurate aiming to optimize airFiber and airMAX Point-to-Point (PtP) links.



• Optimal Link Deployment

Precision two-axis alignment enhances beam directivity for maximum PtP or backhaul performance.

Key Features:

• Plug and play compatibility
• Optimal link deployment



• Plug and play compatibility:

Use the Precision Alignment Kit with any of these dish antennas: airFiber AF-5G30-S45, PowerBeam PBE-5AC-620, PowerBeam PBE-M5-620, and RocketDish RD-5G30-LW.



• Optimal link deployment:

Precision two-axis alignment enhances beam directivity for maximum PtP or backhaul performance.
