BulletM5-HP+WAE-5AG

Ubiquiti

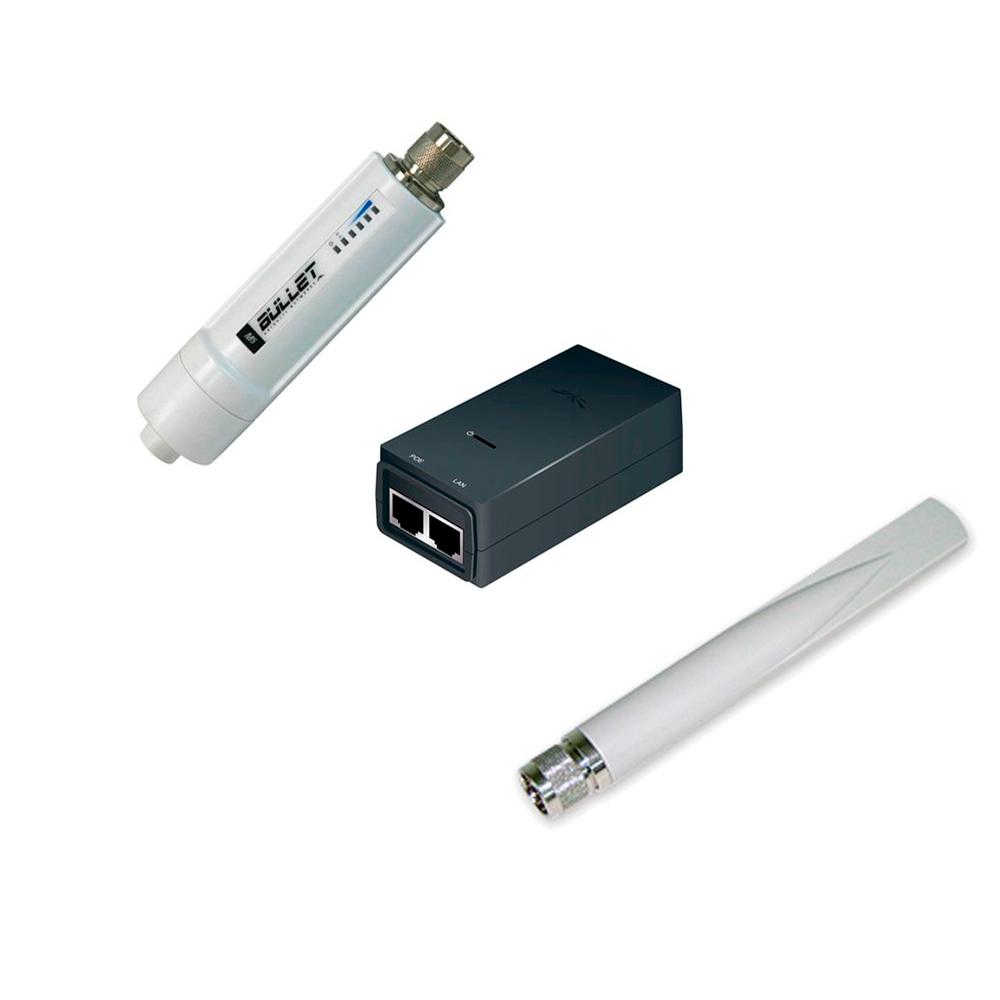

Ubiquiti Bullet M5 BulletM5-HP Wireless Access Point airMAX Radio with Airlive Omni directional 5dbi


Product Highlights
  • Bullet M5 HP High Power version 11N Bullet ships standard with the powerful and intuitive AirOS
  • The Bullet M series can be paired with any antenna to deliver 100Mbps+ of real TCP/IP speed over the air.
  • 100Mbps+ Speed with no Special Antenna Required
  • The WAE-5AG is a 5dBi wireless antenna constructed of weather resistant material. It can operate in both 2.4GHz and 5GHz spectrum.
  • This makes it ideal to work with Dual Band outdoor AP. The antenna is equipped with male N-Type connector for direct installation on the outdoor AP.

    • Model#: BulletM5-HP+WAE-5AG

    Sku: IT1451



    MSRP: $200.00


    Out of stock

    Your Price: $200.00


    Model: BulletM5-HP

                                                    Bullet M

                                           Zero-Variable Outdoor airMAX Radio



    • Carrier-Class Throughput

    The Bullet M delivers up to 100+ Mbps real TCP/IP throughput.

    • Durability to Last Outdoors

    The robust, weatherproof case withstands harsh outdoor conditions.

    • Powerful Performance

    The Bullet M features up to 600 mW of power and an enhanced receiver design for PtP or PtMP deployment.

    • Long-Range Links

    The Bullet M provides high performance at a range of up to 50+ km, depending on its antenna.

    • Plug and Play Integration

    Connect the Bullet M to any existing antenna with an N-type female connector to create an airMAX® basestation.



    +

    Model: WAE-5AG

    The WAE-5AG is a 5dBi wireless antenna constructed of weather resistant material. It can operate in both 2.4GHz and 5GHz spectrum. This makes it ideal to work with Dual Band outdoor AP. The omni-directional (360 degree horizontal) coverage is suitable l for outdoor AP or multi-point Bridge use. The antenna is equipped with male N-Type connector for direct installation on the outdoor AP.

    Model: BulletM5-HP

    • 5 GHz
    • 100Mbps+ of REAL TCP/IP Throughput over outdoor multi-km links
    • No radio card / host board issues
    • No RF cable quality concerns
    • No mechanical stability concerns
    • No enclosure mounting requirements
    • Just Plug and Go.
    • Processor Specs: Atheros SOC, MIPS 24 KC, 400MHz
    • Memory Information: 32MB SDRAM, 8MB Flash
    • Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
    • Approvals: FCC Part 15.247, IC RS210, CE
    • RoHS Compliance: YES





    Model: WAE-5AG

    • Works in Both 5G and 2.4G frequency band
    • Up to 7dB in 11a mode
    • Up to 4.5dB in 11g/b mode
    • For up to 1km distance
    • Male N-Type Connector for Direct Installation on outdoor AP
    • Design for AP+Bridge and Hotspot installations
