NBE-M5-16X4

Ubiquiti

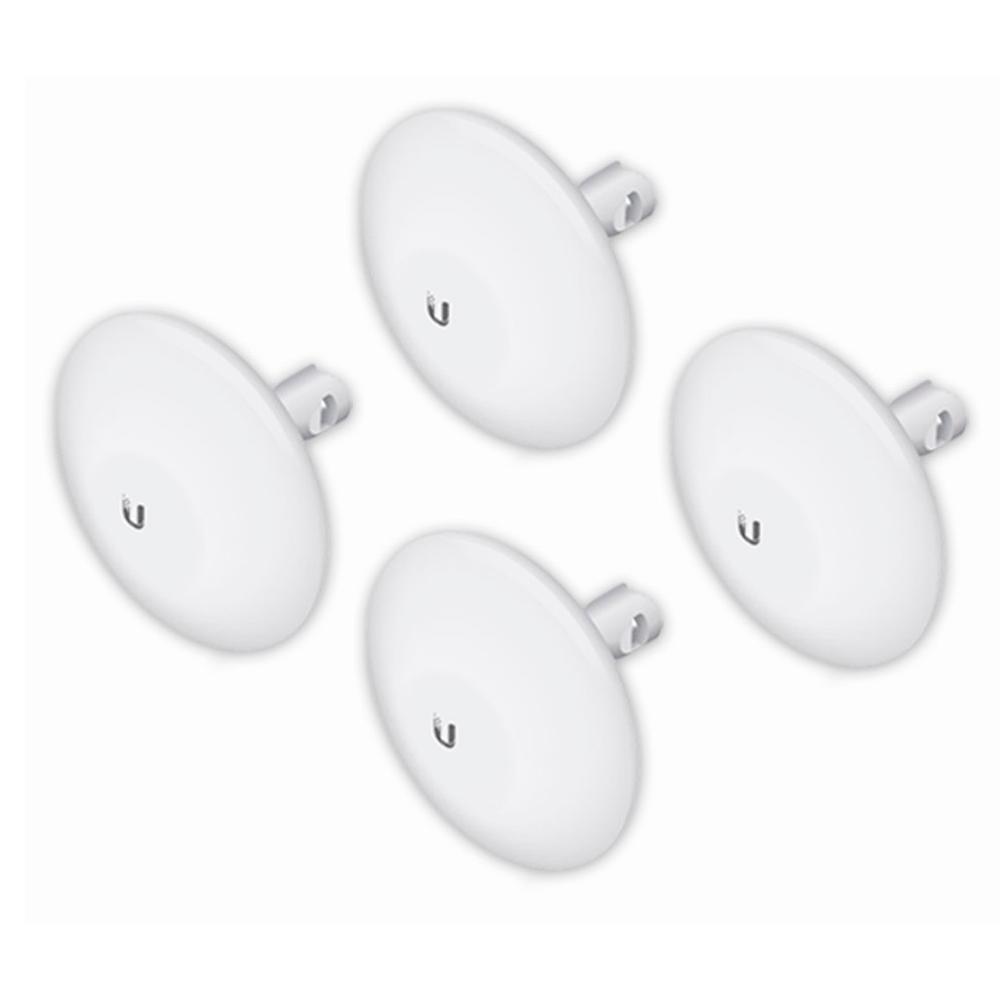

Ubiquiti NanoBeam M5 16dBi 4-PACK 5GHz airMAX CPE NBE-M5-16 NanoBeamM 5GHz 16 dBi airMAX bridge


Product Highlights
  • Ubiquiti NanoBeam M5 NBE-M5-16 5GHz airMAX High-Performance airMAX Bridge 16dBi (4-PACK)
  • Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.
  • The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment.
  • The form factor of the NanoBeam® features the highest gain for its size.
  • The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.

    • Model#: NBE-M5-16X4

    Sku: IT1471

    Out of stock

    Your Price: N/A


    Model: NBE-M5-16 (4 Pack)

                                               NanoBeam M5

                                              High-Performance airMAX Bridge

    The NBE-M5-16 NanoBeam M5 16dBi 5 GHz NanoBeam airMAX Bridge from Ubiquiti directs RF energy in a tighter beamwidth. NanoBeam maximizes noise immunity by its uniform bandwidth. With focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. With focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is important in an area crowded with other RF signals of the same or similar frequency.

    Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam.

    • 16dBi airMAX Bridge
    • Ubiquiti NBE-M5-16
    • Suitable for CPE wireless client, PtP and PtMP links in the 5 GHz band.
    • Passive PoE



    System Information:

    • Processor Specs: Atheros MIPS 74KC, 560 MHz
    • Memory Information: 64MB DDR2, 8 MB Flash
    • Networking Interface: 1 x 10/100Base-TX (Cat. 5, RJ-45) Ethernet Interface
    • Approvals: FCC, IC, CE
    • RoHS Compliance: Yes

    Antenna Characteristics:

    • Frequency Range: 5.725 - 5.5850 GHz (US), 5.170-5.875 (WW)
    • Gain: 16 dBi Dual Linear Polarized
    • Dimensions: 140x140x54 mm
    • Weight: 1.203g
    • Enclosure Characteristics: Outdoor UV Stabilized Plastic
    • Mounting Kit: Pole Mounting Kit included
    • Maximum Power Consumption: 6 Watts
    • Power Supply: 24V, 0.5A POE Adapter Included
    • Power Method: Passive PoE (pairs 4,5+; 7,8 return)
    • Operating Temp Range: -40°C to 70°C
    • Wind loading: 4.8 lbf @ 125 mph
    • Wind Survivability: 125 mph
    • ESD/EMP Protection: Air: +/- 24kV, Contact +/- 24kV
    • Shock and Vibration: ETSI300-019-1.4
