AF-5X US

Ubiquiti

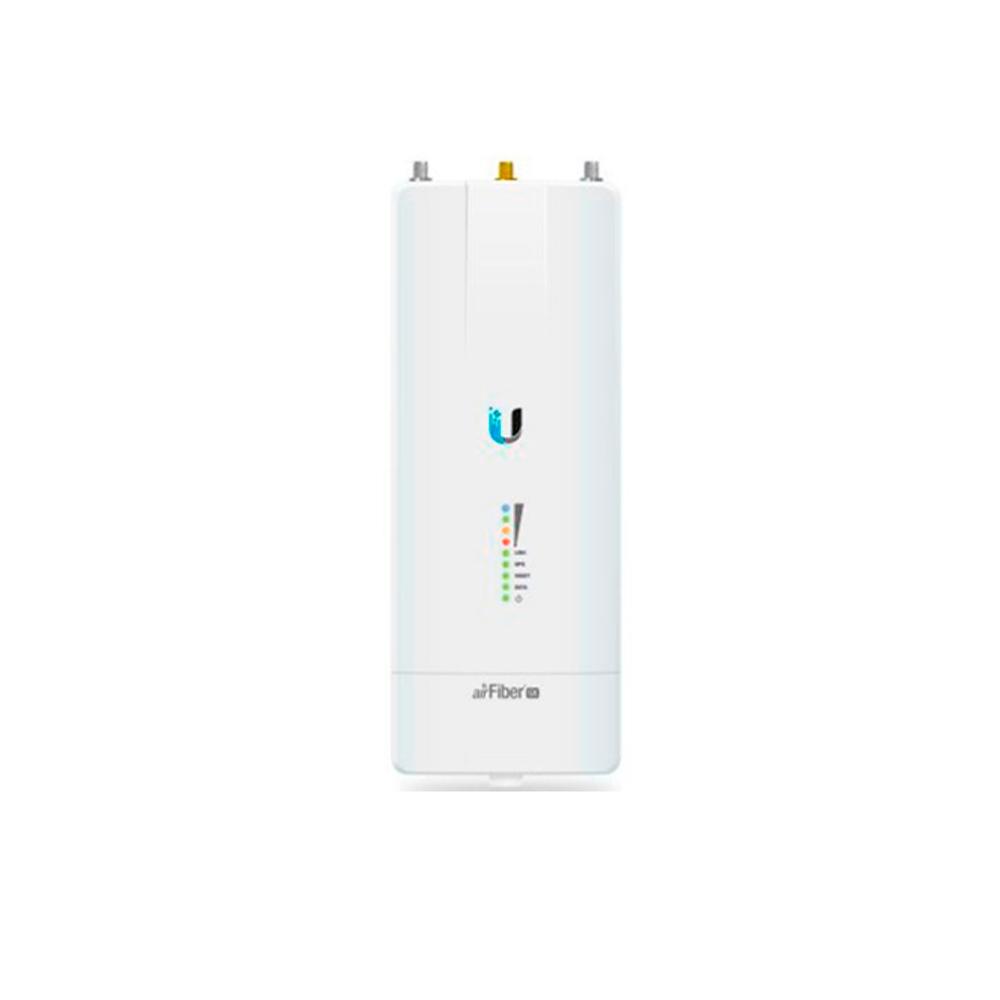

Ubiquiti Networks airFiber 5X AF-5X US 5 GHz Carrier Backhaul Radio Wireless 500Mbps


Product Highlights
  • Ubiquiti airFiber 5X AF-5X US 5 GHz Carrier Backhaul Radio Wireless 500Mbps
  • The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.
  • Ubiquiti’s INVICTUS custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
  • The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket™link that uses a RocketDish RD-5G30/RD-5G34* antenna.
  • Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for t

    • Model#: AF-5X US

    Sku: IT1499



    MSRP: $399.00


    Out of stock

    Models: AF-5X-US

                                      Carrier Backhaul Radio

                                                                  airFiber X

    The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.



    • Engineered for Performance

    Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

    • Carrier Backhaul for the World

    Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.

    • Optimal Operation and Channel Configuration

    Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

    • Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
    • Weight 0.35 kg (0.77 lb)
    • RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
    • (1) SMA Weatherproof (GPS)
    • GPS Antenna External, Magnetic Base
    • Power Supply 24V, 1A PoE Gigabit Adapter (Included)
    • Power Method Passive Power over Ethernet
    • Mounting airFiber X Mount (Rocket Mount Compatible)
    • GPS Pole Mount (Included)
    • DFS Certified
    • FCC Part 15.407
    • CE EN 302502 v1.2.1, EN 301 893 v1.7.1
    • Operating Temperature -40 to 55° C (-40 to 131° F)
    • Data Port (1) 10/100/1000 Ethernet Port
    • Management Port (1) 10/100 Ethernet Port
    • Processor INVICTUS IC
    • Maximum Throughput 500+ Mbps*
    • Maximum Range 200+ km*
    • Encryption 128-bit AES
    • OS airOS F
    • Wireless Modes Master/Slave
    • Operating Frequency 5150-5925 MHz
    • (Dependent on Regulatory Region)
    • Max. Conducted TX Power 26 dBm
    • (Dependent on Regulatory Region)
    • Frequency Accuracy ± 2.5 ppm without GPS Synchronization
    • ± 0.2 ppm with GPS Synchronization
    • Channel Bandwidth 10/20/30/40/50 MHz Selectable
    • Programmable Uplink and Downlink Duty Cycles
