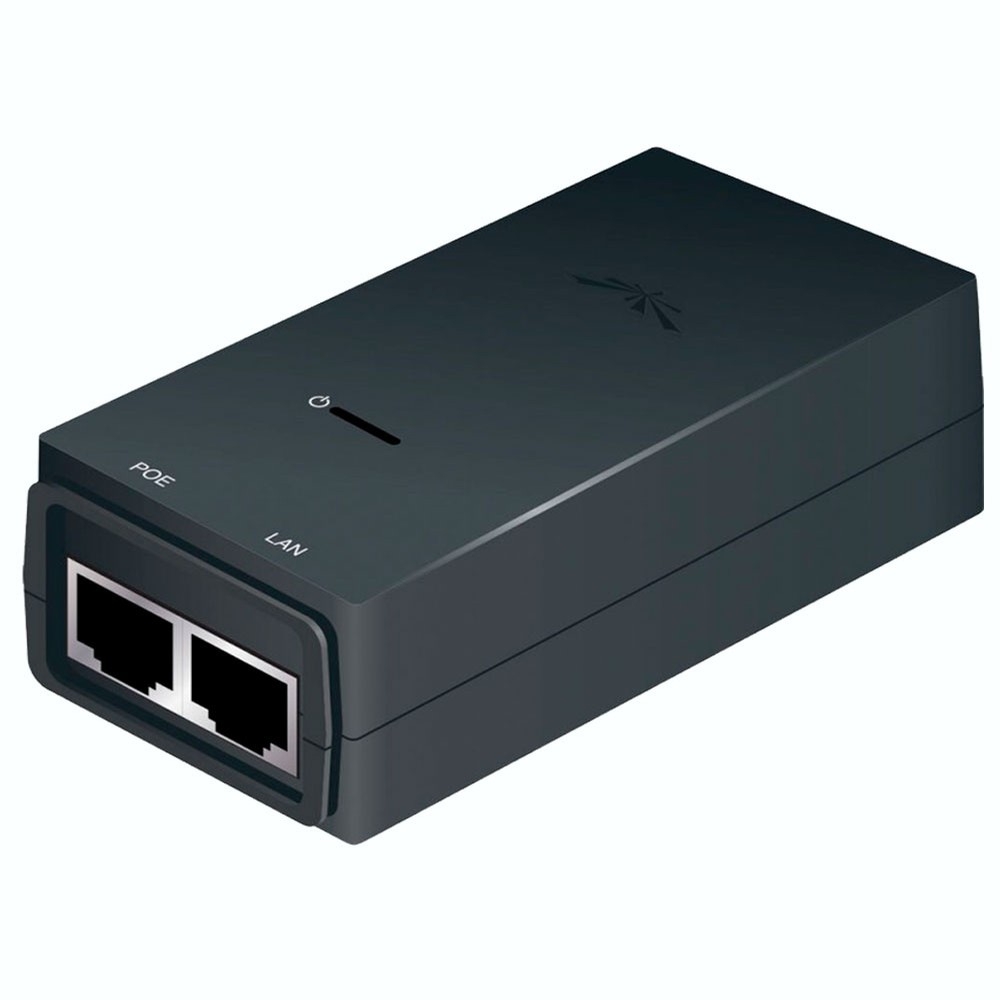

Ubiquiti Networks POE-24-24W-G 24V PoE 1A Gigabit w/US Power Cord
Product Highlights
Model#: POE-24-24W-G
Sku: IT1513
MSRP: $15.99
In Stock
Your Price: $15.99
Model: POE-24-24W-G
The Ubiquiti POE-24-24W-G Power over Ethernet PoE Injector is highly reliable, and when used with Ubiquiti TOUGHCable, the Ubiquiti POE-24-24W-G provides earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
Seamless airGateway™ Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.
Specifications POE-24-24W-G
| Model | POE-24-24W-G |
| Dimensions | 88 x 57 x 33 mm (3.47 x 2.24 x 1.30 in) |
| Weight | 158.5 g (5.59 oz) |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Input Voltage | 90-260VAC @ 47-63 Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @120VAC, <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ± 1% |
| Load Regulation | ± 3% |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Non-Condensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20µS) Power |
| Peak Pulse Current | 36A (10/1000µS) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 nS |
| Compliance | IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B |
| AC Cable with Earth Ground | USA, EU, AR, BR, UL, CCC, Mexico |
