Ubiquiti Networks AF-MPX8 airFiber 8x8 MIMO Multiplexor for AF-5X
Product Highlights
Model#: AF-MPX8
Sku: IT1543
MSRP: $118.95
In Stock
Your Price: $118.95
MODEL: AF-MPX8

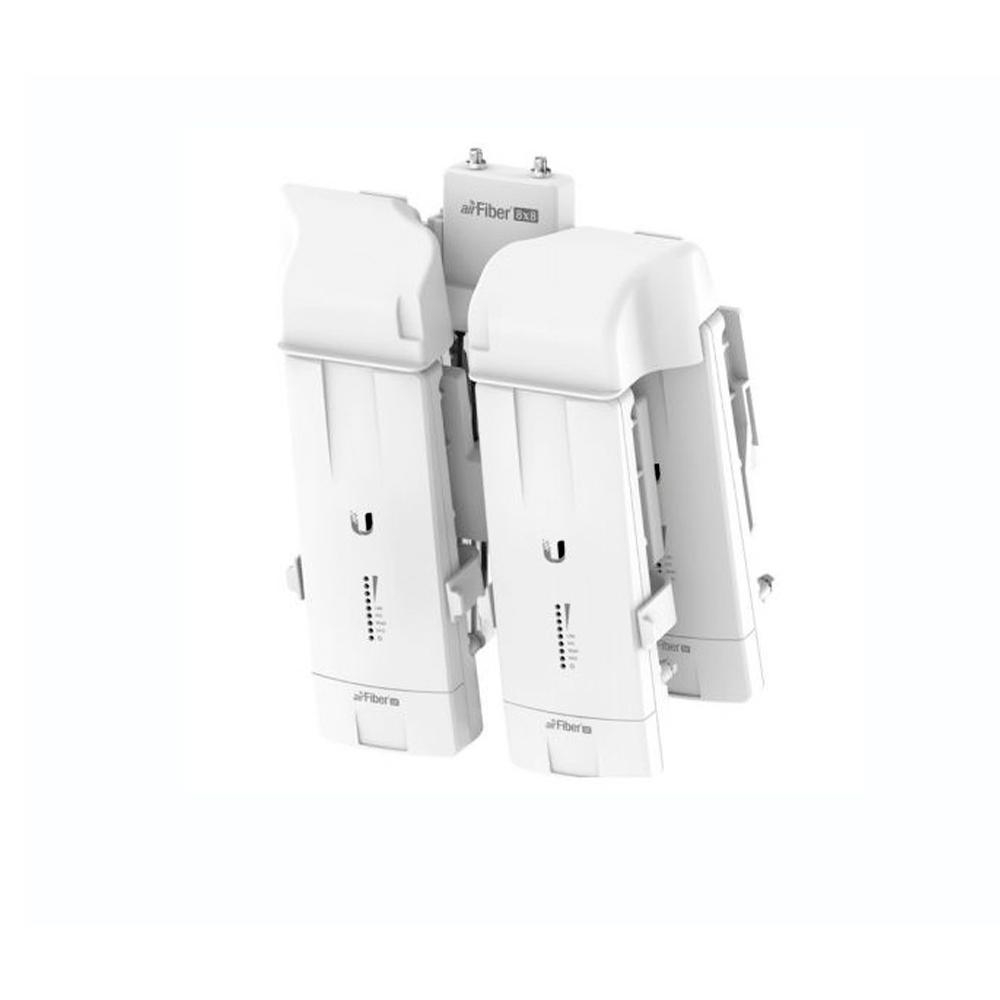

Introducing the airFiber NxN, a thoughtfully engineered MIMO multiplexer that increases the amazing throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas.
The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber 5X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit throughput.
Upgrading a 5 GHz airMAX or airFiber link is fast and easy. Simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables.
• 8x8 MIMO
• Multiplex up to (4) airFiber 5X radios (airFiber radios and antennas sold seperately)
• Aggregate Throughput up to 2+ Gbps
• Up to 3 Redundant Links
- Product Specifications:
• Redundant link: Up to 3
• Aggregate throughput: 2+ Gbps
• Dimensions: 210.5 x 240.9 x 109 mm (8.29 x 9.48 x 4.29")
• Weight: 0.45 kg (1.0 lb)
• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) ; (8) RP-SMA Weatherproof (A0, A1, B0, B1, C0, C1, D0, D1)
• Cable Loss: 7.2 dB
• Supported airFiber X Radio: AF-5X
• Multiplex MIMO: 4 x (2x2)
• Mounting: airFiber X/Rocket Mount Compatible
