R5AC-Lite+AM-5G19-120

Ubiquiti

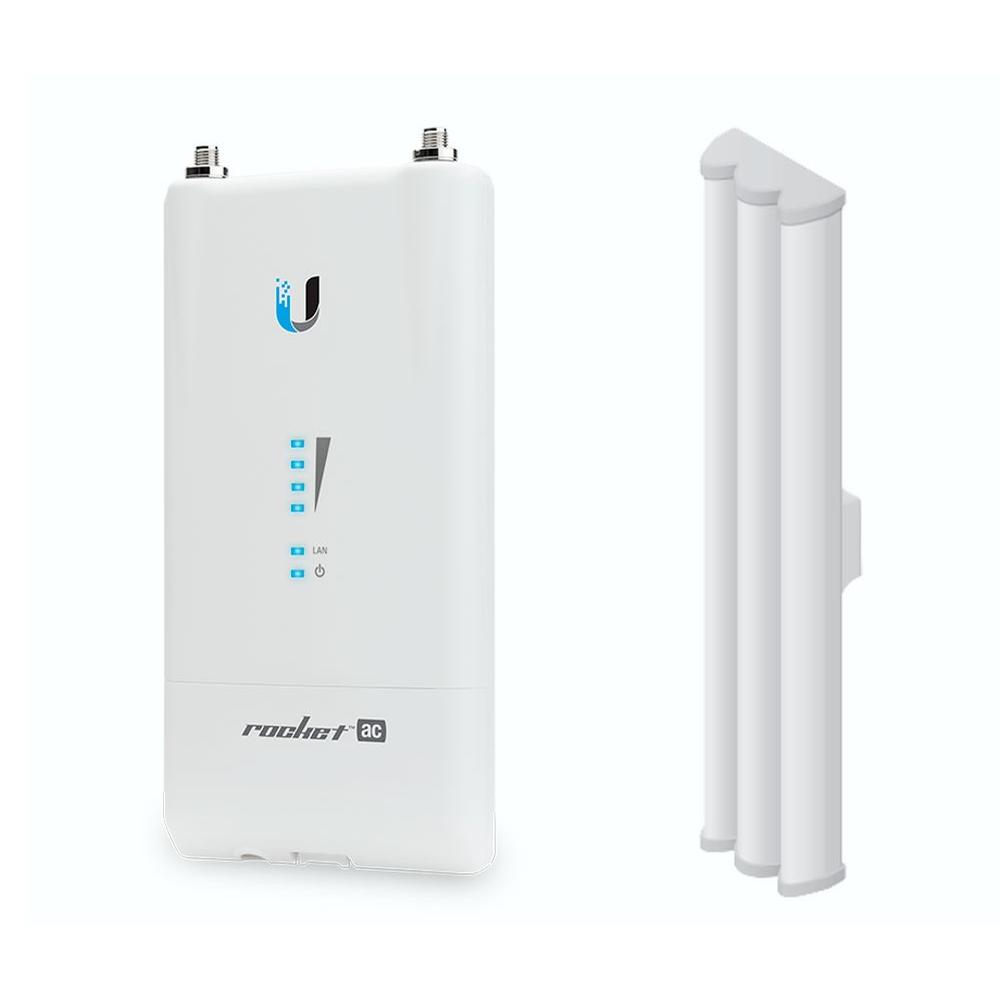

Ubiquiti Rocket ac Lite R5AC-Lite airMAX AC Basestation with Sector Antenna AM-5G19-120 5GHz 19dBi


Model#: R5AC-Lite+AM-5G19-120

Sku: IT1565



MSRP: $400.00


Out of stock

Your Price: $400.00


  • The R5AC-LITE rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal. Ports on the BaseStation include one Gigabit Ethernet port and two waterproof RP-SMA RF connections to prevent against water damage.

  • The AM-5G19-120 AirMAX 5 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 19 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

R5AC-Lite

  • Enclosure Characteristics: Outdoor UV Stabilized Plastic

  • Networking Interface: (1) 10/100/1000 Ethernet Port

  • RF Connections: (2) RP-SMA (Waterproof)

  • LEDs: Power, Ethernet, (4) Signal Strength

  • Max. Power Consumption: 8.5W

  • Power Supply: 24V, 0.5A Gigabit PoE Adapter

  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

  • ESD/EMP Protection ± 24KV Air / Contact





AM-5G19-120

  • Frequency Range: 5.10-5.85GHz

  • Gain: 18.6-19.1dBi

  • Polarization: Dual Linear

  • Cross-polarization Isolation: 28dB min

  • H-Pol beamwidth (6 dB): 123 deg

  • V-Pol beamwidth (6 dB): 123 deg

  • Elevation Beamwidth (6dB): 4 deg

  • Electrical Downtilt: 2 deg

  • ETSI Specification: EN 302 326 DN2
