NBE-M5-19X6

Ubiquiti

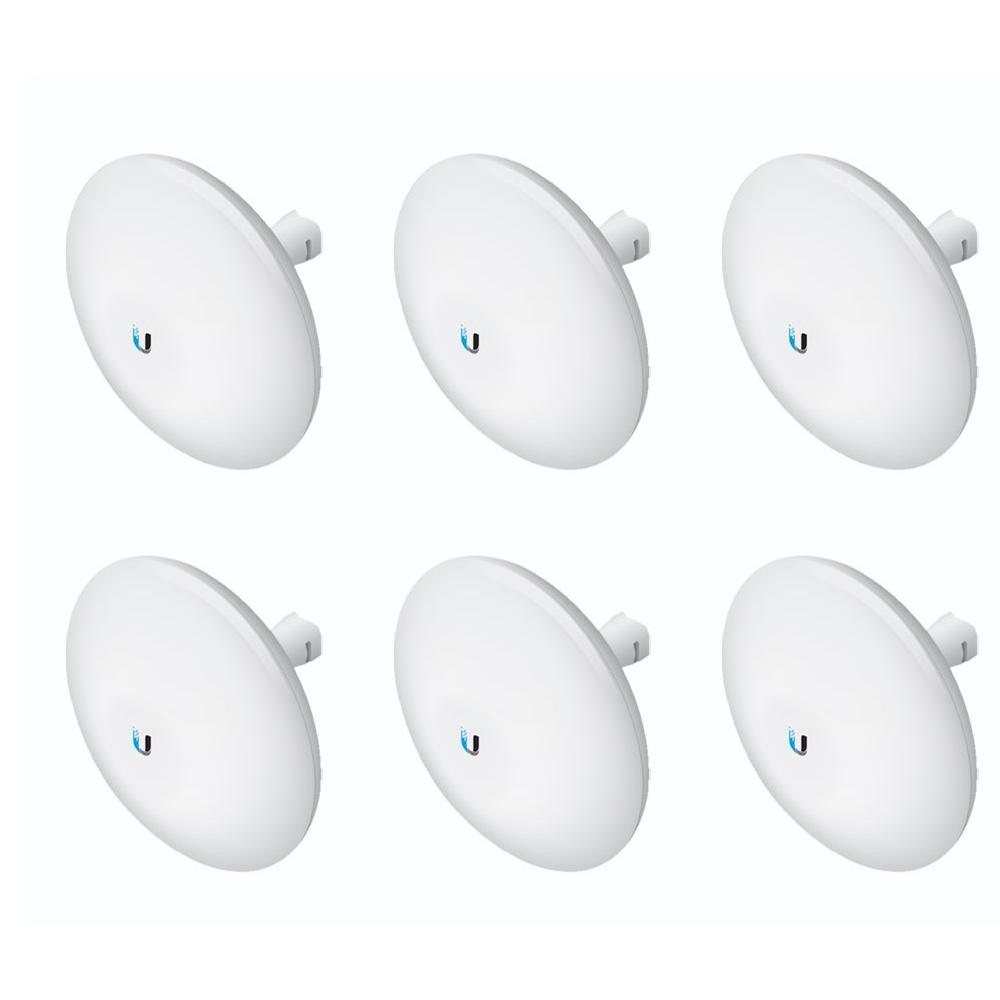

Ubiquiti Nanobeam M5 NBE-M5-19 6-PACK 5GHz 19dBi Antenna airMAX Bridge


Model#: NBE-M5-19X6

Sku: IT1569

Out of stock

  •  Ubiquiti NBE-M5-19 6-PACK High-performance 5GHz airMAX bridge with an integrated 19dBi antenna

    The NBE-M5-19 5 GHz 19dBi High-Performance airMAX Bridge from Ubiquiti Networks directs RF energy in a tighter beamwidth. NanoBeam maximizes noise immunity by its uniform bandwidth. With focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is important in an area crowded with other RF signals of the same or similar frequency.

     Starting with the first-generation NanoBridge, Ubiquiti Networks pioneered the all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the NanoBeam.

    Improved Noise Immunity

    Available for the 2.4 and 5 GHz frequency bands, the NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

    airControl

    airControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.

    • Network Map

    • Monitor Device Status

    • Mass Firmware Upgrade

    • Web UI Access

    • Manage Groups of Devices

    • Task Scheduling

    Ubiquiti NBE-M5-19 High-performance 5GHz airMAX bridge with an integrated 19dBi antenna

  • The new NanoBeam M has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design.
  • The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
  • The Ubiquiti Research and Development team combined the radio and antenna to create a more efficient and compact CPE. The NanoBeam gets maximum gain out of the smallest footprint.
  • Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.
  • Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
  • This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
  • Frequency Range: 5.725 - 5.5850 GHz (US), 5.170-5.875 (WW)
  • 64 MB DDR2, 8 MB flash
  • 1 x 10/100 Ethernet port
  • Atheros MIPS 74Kc, 560 MHz
  • Gain: 19 dBi Dual Linear Polarized
  • Dimensions: 189x189x125 mm
  • Weight: 0.530g
  • Enclosure Characteristics: Outdoor UV Stabilized Plastic
  • Mounting Kit: Pole Mounting Kit included.
  • Wall mount optional.Maximum Power Consumption: 8 WattsPower Supply: 24V, 0.5A POE Adapter Included
  • Power Method: Passive PoE (pairs 4,5+; 7,8 return)
  • Operating Temp Range: -40°C to 70°C
  • Wind loading: 10.2 lbf @ 125 mph
  • Wind Survivability: 125 mph
  • ESD/EMP Protection: Air: +/- 24kV, Contact +/- 24kV
  • Shock and Vibration: ETSI300-019-1.4

  •
