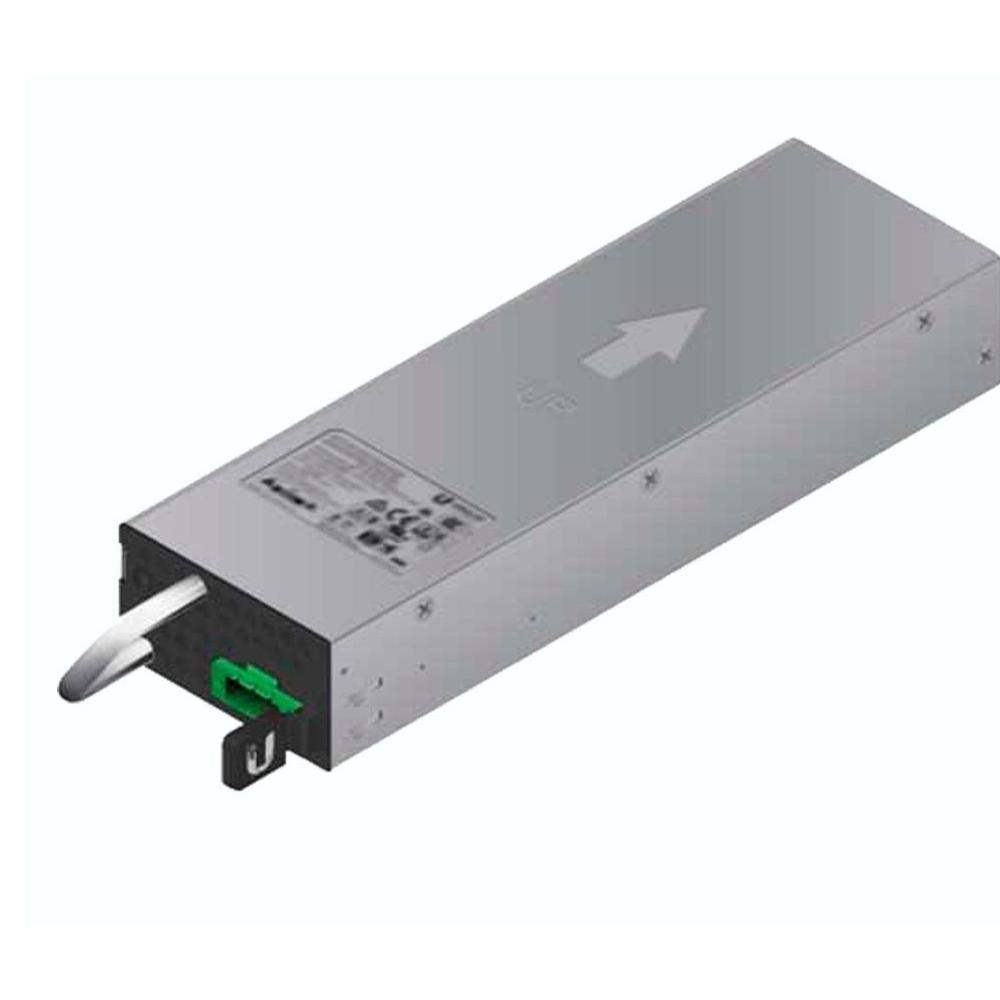

Ubiquiti EdgePower 54V, 150W DC to DC PSU Module
Model#: EP-54V-150W-DC
Sku: IT1591
MSRP: $79.99
In Stock
Your Price: $79.99
Model: EP-54V-150W-DC
The EdgePower™ is a high-power, modular PSU system designed to connect to EdgePoint routers/switches, and provide reliable power to attached PoE devices.
The EdgePower uses modular PSUs for flexible configuration options. The EdgePower can utilize two modular PSUs to provide up to 300W of power, or be configured to provide up to 150W of power with an automatic PSU backup.
The EdgePower consists of a rack-mountable, two-bay housing and control unit, and includes one AC-DC 54V, 150W PSU module. The second PSU bay can house an AC-DC or DC-DC PSU module (sold separately):
- EP-54V-150W-AC
- EP-54V-150W-DC
SPECIFICATIONS
Specifications EP-54V-150W-DC
| Dimensions | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.675") |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Maximum Power Output | 150W (1 PSU Module) / 300W (2 PSU Modules @ 150W Each |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
