AF-5U US

Ubiquiti

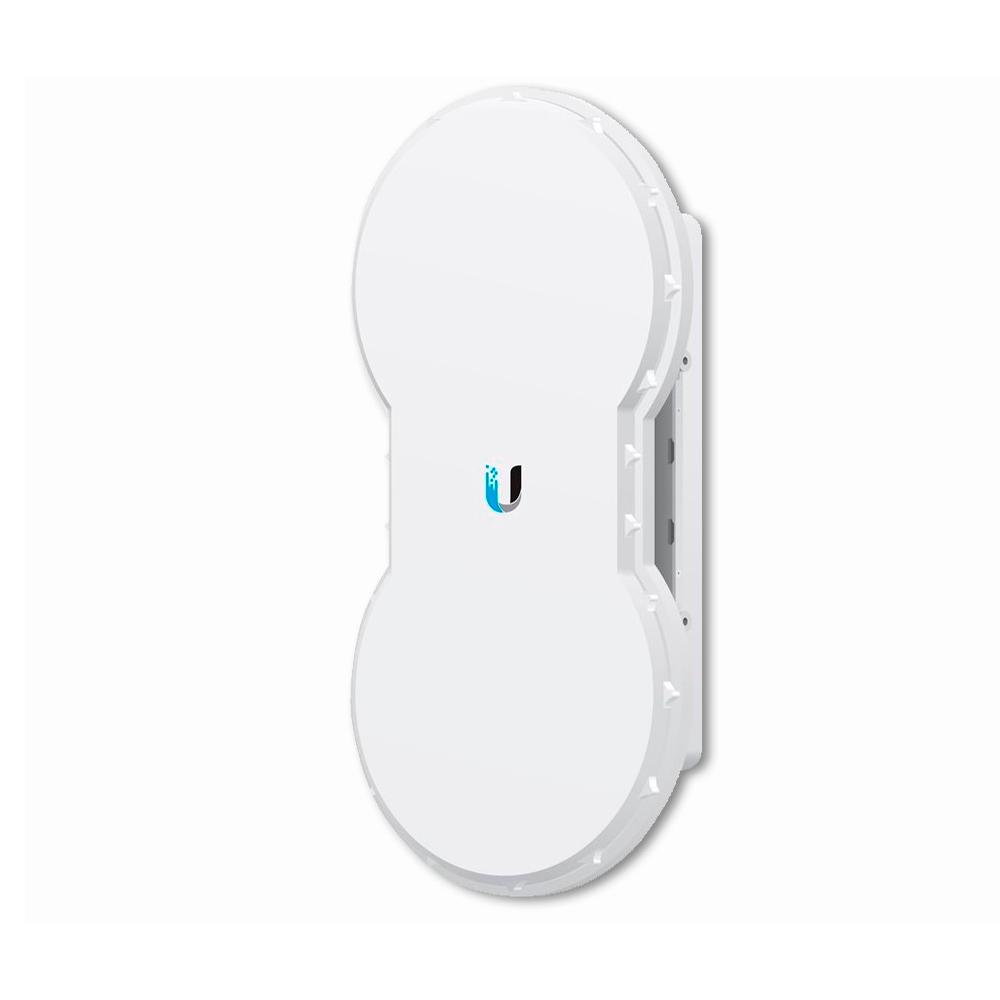

Ubiquiti Networks AirFiber 5 AF-5U-US 5GHz Full Duplex Carrier Class Point-to-Point Gigabit Radio


Product Highlights
  • Ubiquiti Networks airFiber 5 Full Duplex Point-to-Point Gigabit Radio 5 GHz
  • The airFiber 5 is purpose-built for outdoor, PtP bridging and carrier-class network backhauls.
  • The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.
  • Surpassing conventional wired backhauls, the airFiber 5 delivers real throughput of up to 1.2+ Gbps.
  • Designed to be a high-performance backhaul, the airFiber 5 performs at a range of up to 100+ km.

    • Model#: AF-5U US

    Sku: IT1597



    MSRP: $1,259.99


    Out of stock

     Model: AF-5U-US

     airFiber 5 Full Duplex Point-to-Point Gigabit Radio 5 GHz

    The airFiber 5 is purpose-built for outdoor, PtP bridging and carrier-class network backhauls. Operating in the 5GHz band, AF-5U-US airFiber 5 builds on the innovations in airFiber 24 to enable speeds up to 1Gbps and introduces new extended Range Technology (xRT) to provide 100+Km maximum range.



    • Innovative Antenna Design

    The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.

    • Revolutionary Performance

    Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.

    • Long-Range Links: 100+ km

    Designed to be a high-performance backhaul, the airFiber 5 performs at a range of up to 100+ km.

    • Low-Latency Carrier Backhaul

    The airFiber 5 supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

    • 5 GHz Unlicensed Band

    The airFiber 5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).

    • Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08 in)
    • Weight 16 kg (35.27 lb) Mount Included
    • Max. Power Consumption 40 W
    • Power Supply 50V, 1.2A PoE GigE Adapter (Included)
    • Power Method Passive Power over Ethernet (42-58VDC)
    • Certifications CE, FCC, IC
    • Mounting Pole Mount Kit (Included)
    • Wind Loading 863 N @ 200 km/hr (194 lbf @ 125 mph)
    • Wind Survivability 200 km/hr (125 mph)
    • Operating Temperature -40 to 55° C (-40 to 131°F )
