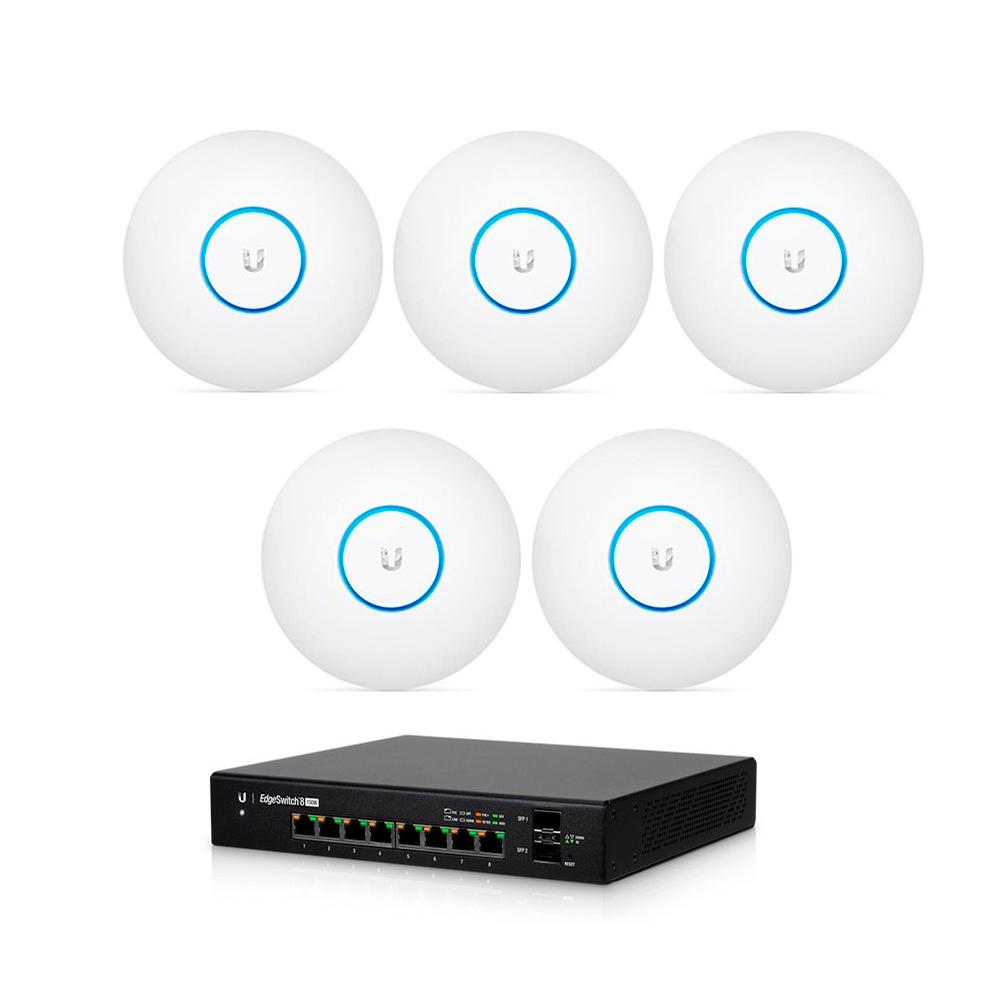

UbiquitI Unifi AP AC PRO UAP-AC-PRO-5-US Wireless AP 3x3MIMO w/ EdgeSwitch 8-Port ES-8-150W Managed
Product Highlights
Model#: UAP-AC-PRO-5+ES-8-15
Sku: IT1629
MSRP: $1,282.99
Out of stock
Model: UAP-AC-PRO-5-US
UniFi 802.11ac PRO Access Point
The UAP-AC-PRO-5 UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3x3 MIMO technology for each band. It has a range of up to 400' and two Gigabit Ethernet ports. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.
- Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology
The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.
- Versatile Design
The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.
WITH
Model: ES-8-150W
EdgeSwitch ES-8-150W 8-Port Managed Gigabit Switch PoE+
The ES-8-150W EdgeSwitch 8-Port 150-Watt Managed PoE+ Gigabit Switch with SFP from Ubiquiti Networks is a full featured networking solution. Along with the two 1 Gbps SFP Ethernet ports, you can take advantage of 8 Gigabit Ethernet ports supporting a max power over Ethernet wattage of 34.2 watts per port. The voltage ranges from 50 to 57 volts with a maximum passive power over Ethernet wattage per port of 17 watts. Other networking features include VLAN, private VLAN, voice VLAN, link aggregation, DHCP snooping, IGMP snooping, and much more. The unit comes with rack mount brackets
- Gigabit Connectivity
The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.
- Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.
- Optical Fiber Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.
- Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.
-
Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
UAP-AC-PRO-5
- Networking Interface: 2 x 10/100/1000 Ethernet ports
- Button: Reset
- Antennas: 3 x Dual-band antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
- Wi-Fi Standards: 802.11a/b/g/n/ac
- Passive Power over Ethernet (48 V), 802.3af/803.2at
- Supported Voltage Range: 44 to 57 VDC
- Power Supply: N/A
- Maximum Power Consumption: 9 W
- Maximum TX Power: 2.4 GHz: 22 dBm / 5 GHz: 22 dBm
- BSSID: Up to 4 per radio
- Power Save: Supported
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Certifications: CE, FCC, IC
ES-8-150W
- (8) Gigabit RJ45 Ports
- (2) SFP Ports
- (1) Serial Console Port
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Maximum Power Consumption: 150W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Wallmountable with Mount Brackets (Included)
- Desktop-Mountable (Do not physically stack the ES-8-150W.)
- DC Input Option (Redundant or Stand-Alone)
