LBE-5AC-Gen2

Ubiquiti


Ubiquiti Networks LBE-5AC-GEN2 5GHz LiteBeam ac Gen2 23dBi-International Version - Does not work in USA



Product Highlights
  • Improved Radio Design
  • Improved Mounting
  • Improved Surge Protection
  • Management WiFi Radio/UISP Mobile App
  • AirOS 8
  • Model#: LBE-5AC-Gen2

    Sku: IT1710



    MSRP: $75.00

    In Stock

    Your Price: $75.00






    Model: LBE-5AC-Gen2

    International Version

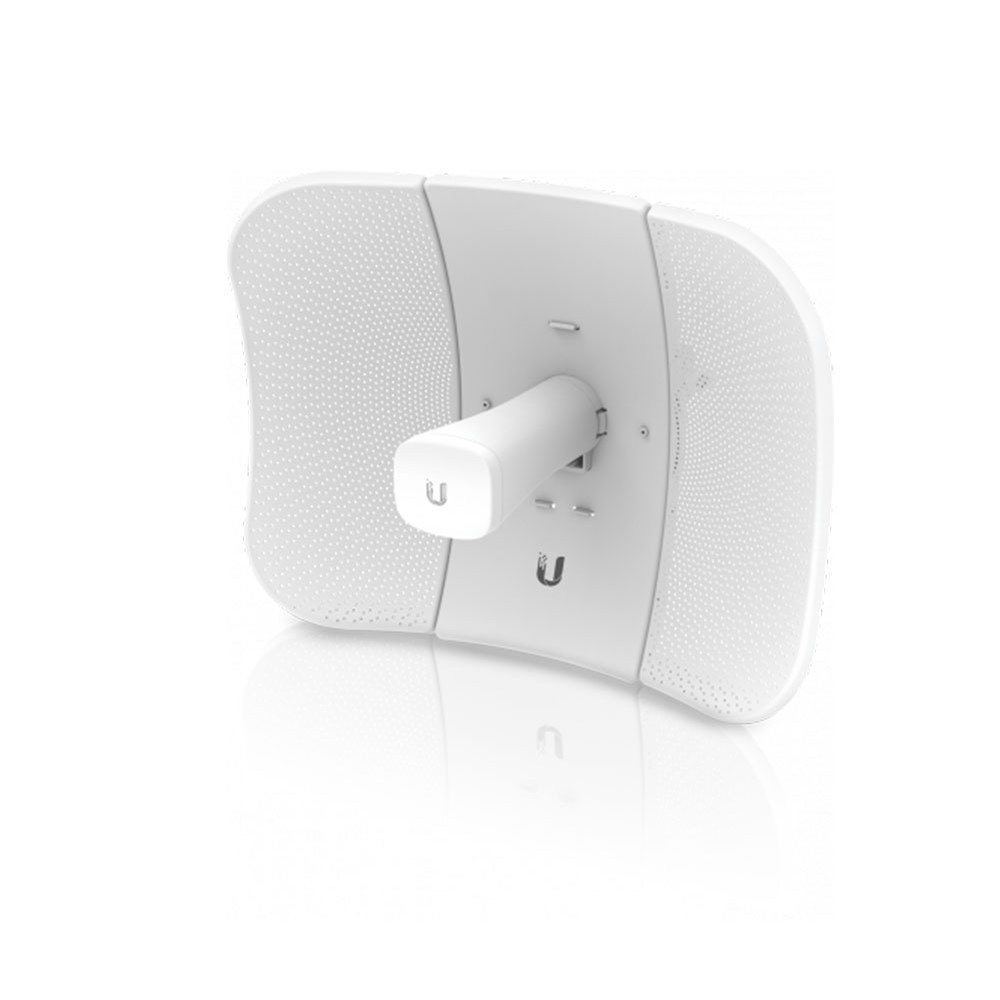

    Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management.

    Improved Noise Immunity The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

    Integrated Design Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.

    Product Specifications:


    • Dimensions: 358 x 271.95 x 272.5mm (14.09 x 10.71 x 10.73")
    • Weight:
        Without Mount: 800g (1.76lbs)
        With Mount: 980g (2.16lbs)
    • Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)
    • Max. Power Consumption: 7W
    • Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
    • Supported Voltage Range: 24V±10%
    • Operating Frequency: 2412 - 2462MHz ( Management Radio )  / 5150 - 5875MHz
    • Gain: 23dBi
    • Networking Interface: (1) 10/100/1000 Ethernet Port
    • Processor Specs: MIPS 74Kc
    • Memory: 64 MB DDR2
    • LEDs: Power, Ethernet
    • Channel Sizes:
        PtP Mode: 10/20/30/40/50/60/80MHz
        PtMP Mode: 10/20/30/40MHz
    • Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
    • Mounting: Pole-Mounting Kit (Included)
    • Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)
    • Wind Survivability: 200km/h (125mph)
    • ESD/EMP Protection: ±24kV Contact / Air
    • Operating Temperature: -40 to 70°C (-40 to 158°F)
    • Operating Humidity: 5 to 95% non-condensing
    • Certifications: CE, FCC, IC

    Product Includes:


    • (1) Antenna Feed
    • (1) Central Reflector Panel
    • (2) Side Reflector Panels
    • (1) Feed Receiver
    • (1) Azimuth Mount
    • (1) Elevation Mount
    • (1) Metal Strap
    • (1) Knob Kit
    • (1) Gigabit PoE (24V, 0.3A) with Mounting Bracket
    • (1) Power Cord
    • (1) Quick Start Guide
