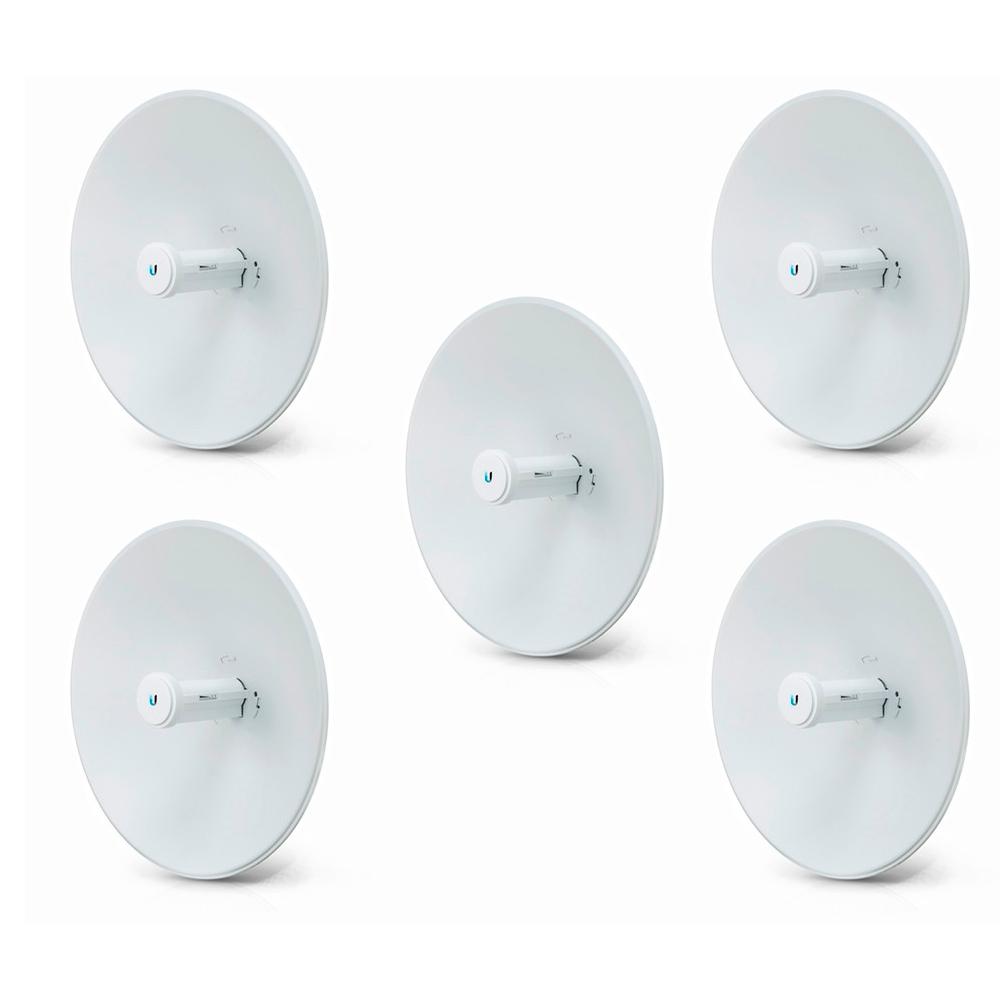

Ubiquiti Networks PowerBeam ac Gen2 PBE-5AC-GeN2 5GHz High Performance airMAX Bridge 25dBi ROW (5 Pack)
Model#: PBE-5AC-GeN2-5PK
Sku: IT1711
Out of stock
Model PBE-5AC-GeN2 (5-Pack)
PowerBeam AC Gen 2 airMAX CPE with dedicated Wi-Fi management (Customer Premises Equipment)
Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the PowerBeam 5AC Gen 2, with dedicated Wi-Fi management.The PowerBeam 5AC Gen 2 (5 Pack) directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative design, the PowerBeam 5AC Gen 2 is versatile and cost-effective to deploy.
Product Specifications:
• Dimensions: 420 x 420 x 230mm (16.54 x 16.54 x 9.06")
• Weight: 2.22kg (4.89lbs)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Gain: 25dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64MB
• LEDs: Power, Ethernet, (4) Signal Strength
• Channel Sizes:
PtP Mode: 10/20/30/40/50/60/80MHz
PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics:
Antenna Feed: Outdoor UV Stabilized Plastic
Dish Reflector: Powder-Coated SPCC
• Mounting: Pole-Mounting Kit (included)
• Wind Loading: 380N @ 200km/h (85.4lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• RoHS Compliance: Yes
• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
• Vibration Test: IEC 68-2-6
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40°C (104°F), Equivalent: ETS 300 019-1-4
• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
• Certifications: CE, FCC, IC
• Operating Frequency: 2412 - 2472MHz / 5150 - 5875MHz
Product Includes:
• (1) Dish Reflector
• (1) Antenna Feed
• (1) Rear Housing
• (1) Adjustment Bracket
• (1) Mounting Bracket
• (4) Hex Bolts with Washers
• (1) Pole Clamp
• (2) Long Carriage Bolts
• (2) Flange Nuts
• (1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
