EXTEND YOUR COVERAGE WIRLESS AREA WITH UAP-AC-HD FROM UBIQUITI NETWORKS.

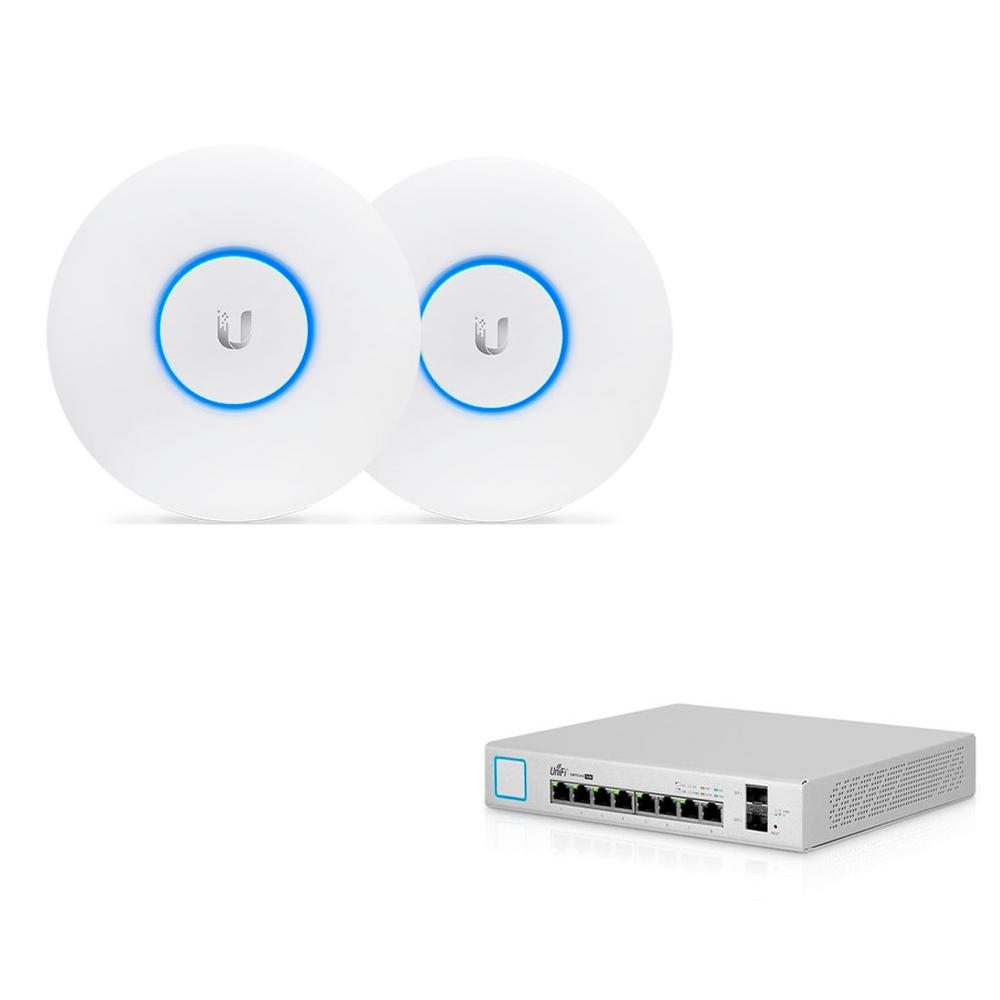

Model: UAP-AC-HD-US (2 Units)

The UAP-AC-HD-US  Wave 2 Enterprise Wi-Fi Access Point from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wave 2 Wi-Fi standard with speeds of up to 1733 Mbps in the 5 GHz radio band, and up to 800 Mbps in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual-band operation with 4x4 MIMO technology for each band. Install the UAP-AC-HD-US access point inside or outdoors (covered) using the included wall or ceiling mount kits. Once installed, the dual PoE compliant Gigabit Ethernet ports make it easy to connect the AP to the network without the need for a standalone power source.

• 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience
• UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC HD AP has a refined industrial design and can be easily installed using the included mounting hardware.



• 802.11ac Technology

Initial 802.11ac Wave 1 SU MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP, such as the UniFi AC Pro AP, to communicate with only one client at a time.

802.11ac Wave 2 MU MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi AC HD AP, to communicate with multiple clients at the same time – significantly increasing multi-user throughput and overall user experience.

• Powerful Hardware

The UniFi AC HD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.

• Expandable

Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a five pack) and expand to thousands while maintaining a single unified management system.

• Wireless Uplink

Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.

+

Model: US-8-150W (1 Unit)

The US-8-150W UniFi Managed PoE+ Gigabit 8 Port Switch with SFP from Ubiquiti Networks it is easy to expand the capacity and reach of an existing network. This switch features 8 Gigabit Ethernet ports along with 2 SFP ports making it easy to incorporate high speed local storage networks into the configuration. In addition to Gigabit Ethernet connectivity, the network ports support 802.3af/at PoE networking standards designed to power devices such as VoIP phones, access points, IP cameras, and more.

• PoE+

The UniFi Switch models are available with 8 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

• Versatile Port Configuration

Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

• Sleek Design and Management

The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.

• Advanced Enterprise Switching

The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
