US-24

Ubiquiti


Ubiquiti UniFi Switch 24 port managed gigabit switch US-24 2xSFP port UniFi Controller 26Gbps


Product Highlights
  • Ubiquiti UniFi Switch 24 US-24 Managed Gigabit Switch with SFP 2 SFP Port RJ45 Non-Blocking Throughput 26 Gbps
  • The UniFi Switch is a fully managed Gigabit switch, delivering robust performance and intelligent switching for your growing networks.
  • The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps
  • For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
  • The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

    • Model#: US-24

    Sku: IT1731



    MSRP: $215.00


    Out of stock

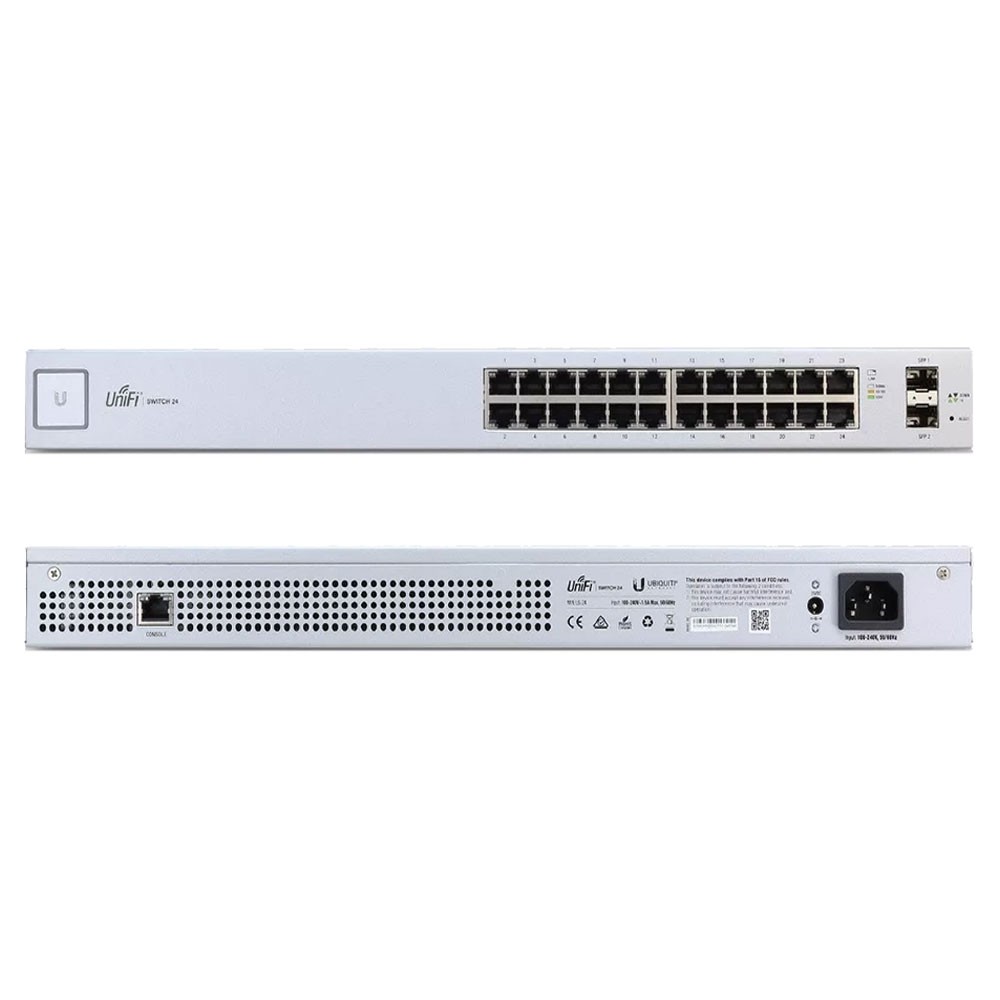

    Model: US-24

                                            UniFi Switch 24

                                               Managed Gigabit Switches with SFP

    The Ubiquiti Networks US-24 is a UniFi 24 port managed Gigabit switch designed to deliver robust performance and intelligent switching for your growing networks. The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps. This model includes two SFP ports for uplinks of up to 1 Gbps.



    • Multi-Site Management

    A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

    • Versatile Mounting Options

    The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

    • Switching Performance

    The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port model supports up to 26 Gbps.



    Product Specifications

    • Dimensions: 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")

    • Networking Interfaces: (24) 10/100/1000 Mbps RJ45 Ethernet Ports, (2) 1 Gbps SFP Ethernet Ports

    • Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

    • Total Non-Blocking Throughput: 26 Gbps

    • Switching Capacity: 52 Gbps

    • Forwarding Rate: 38.69 Mpps

    • Power Method: 100-240VAC/50-60 Hz, Universal Input

    • Power Supply: AC/DC, Internal, 25W DC

    • Max. Power Consumption: 25W

    • LEDs per Port: Speed/Link/Activity

    • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

    • Rack Mount: Yes, 1U High

    • Shock and Vibration: ETSI300-019-1.4 Standard

    • Operating Temperature: -5 to 40° C (23 to 104° F)
