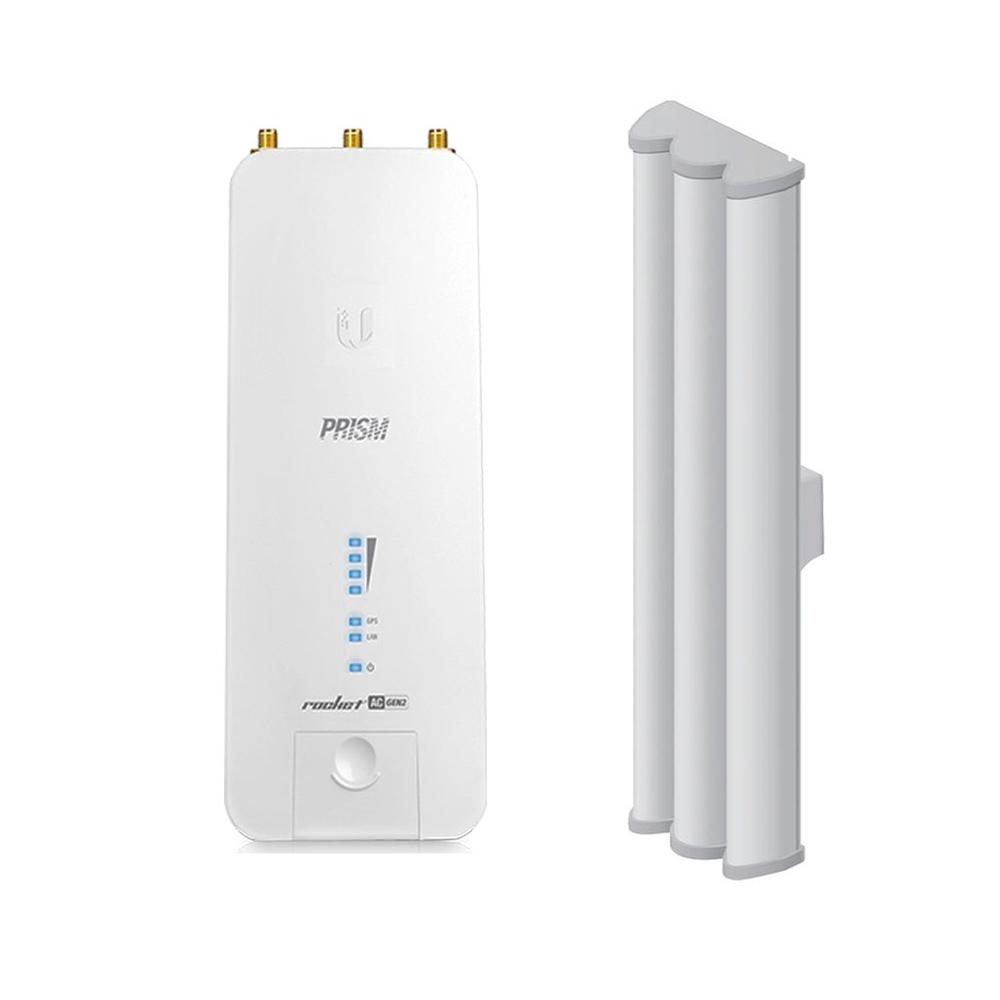

Model: RP-5AC-Gen2-US

airMAX ac BaseStation with airPrism Technology

The RocketPrism 5AC Gen 2 features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The RP-5AC-Gen2 is an airMAX Rocket with airPrism, part of the wide selection of products from Ubiquiti Networks. This basestation operates on both 2.4 and 5GHz.

The Ubiquiti Networks RP-5AC-Gen2 utilizes airPrism technology to provide breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Rocket Prism 5AC features EMI shielded metal housing, GPS, airPrism, circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

• GPS for Superior Co-Location Performance

Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.

• 5 GHz Frequency Band

With plenty of available spectrum, this unlicensed band works well for long-distance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.

• High Performance:

Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities

+

Model: AM-5G19-120

airMAX 2x2 BaseStation Sector Antenna

The AM-5G19-120 AirMAX 5 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 5 GHz frequency and offers a gain of 19 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

• Seamlessly integrates with RocketM radios
• Remarkable cross-polarization isolation
• Scalability: High capacity and scalability
• Long Distance: Capable of high-speed, carrier-class links
• Up to 100 airMAX clients can be connected to an airMAX sector antenna0
