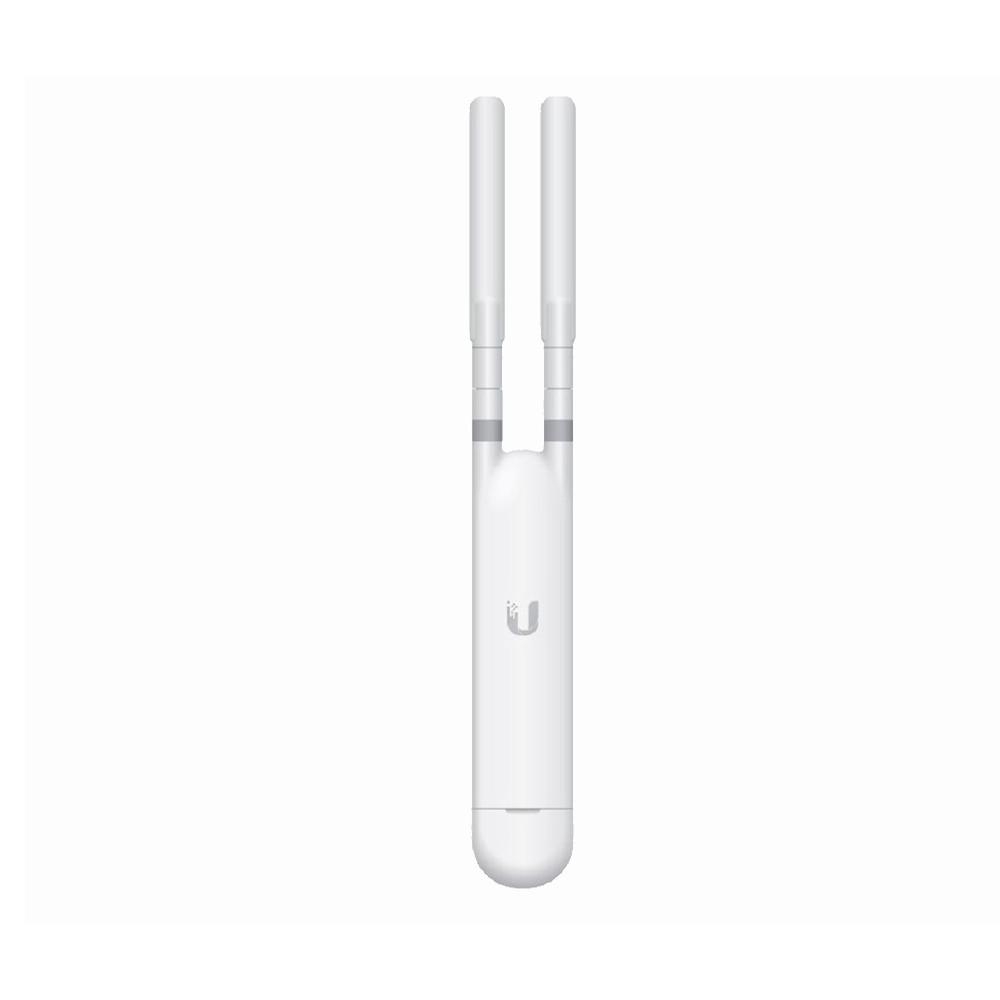

Ubiquiti Networks UAP-AC-M UniFi AP ac Mesh - INTERNATIONAL VERSION
Model#: UAP-AC-M
Sku: IT1800
MSRP: $99.99
In Stock
Your Price: $99.99
Model: UAP-AC-M
International Version
The UniFi AC Mesh AP provides simultaneous, dual-band, 2x2 MIMO technology and is available in single- and five-packs.
The UniFi AC Mesh AP is designed to discreetly integrate into any environment. The UniFi AC Mesh AP can be used indoors or outdoors. The UniFi AC Mesh AP can be mounted on a wall, pole, or fast-mount of a Ubiquiti high-gain antenna. (All accessories are included.)
The UniFi AC Mesh AP is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative A compatible switch, EdgePoint™ EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter. Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.
Product Specifications
• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35 ")
• Weight: 152 g (5.36 oz) with Antennas
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Power Method:
24V Passive PoE (Pairs 4, 5+; 7,8 Return)
802.3af Alternative A (Pairs 1, 2+; 3,6 Return)
(Supported Voltage Range: 44 to 57 VDC)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Save: Supported
• Maximum Power Consumption: 8.5 W
• Maximum TX Power:
2.4 GHz: 20 dBm
5 GHz: 20 dBm
• Antennas: (2) External Dual-Band Omni Antennas
2.4 GHz: 3 dBi
5 GHz: 4 dBi
• Wi-Fi Standards: 802.11 a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to Four per Radio
• Mounting: Wall/Pole/Fast-Mount (Kits Included)
• Operating Temperature: -30 to 70°C (-22 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
Advanced Traffic Management
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 200+
Supported Data Rates (Mbps)
• 802.11ac: 6.5 to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
• 802.11n: 6.5 to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
Datasheet
