Model: R2AC-US

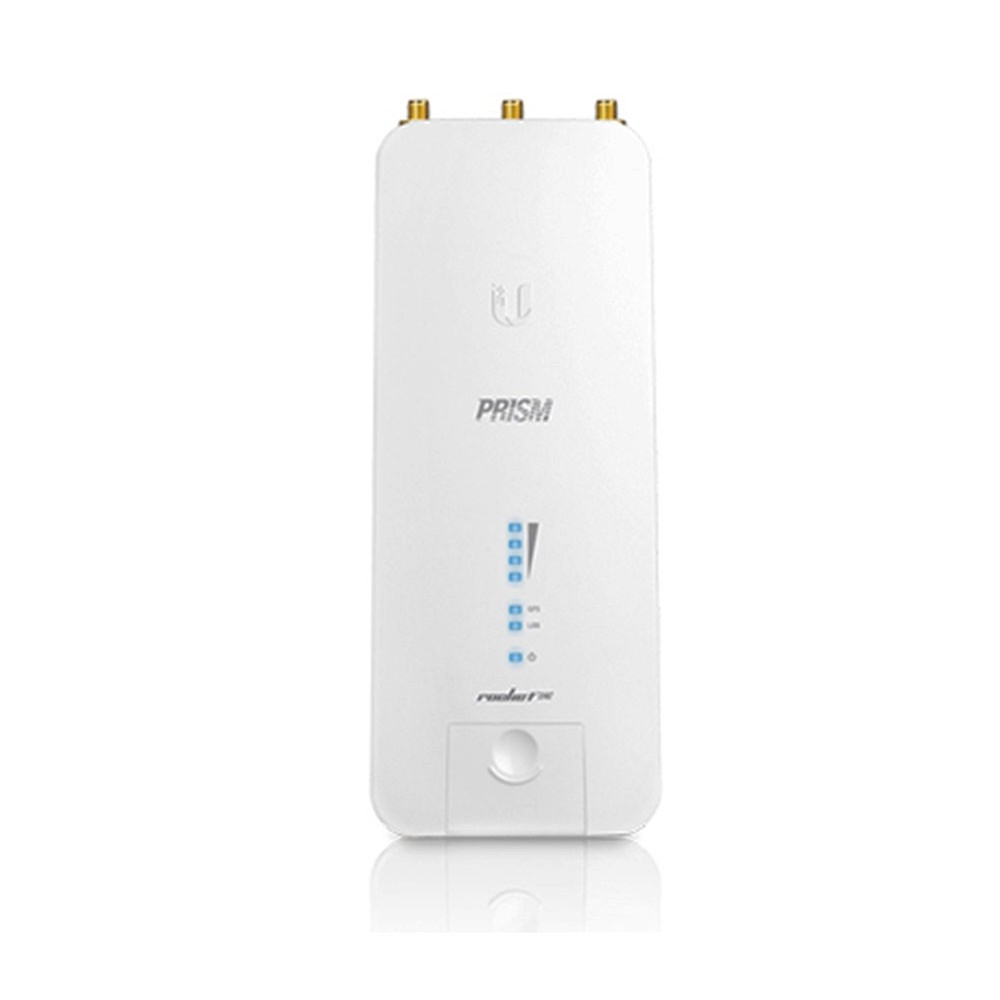

2GHz Rocket ac Prism (US Version)

Ubiquiti Networks has designed airMAX ac radios with high performance and ease of installation in mind. The Rocket®2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas.

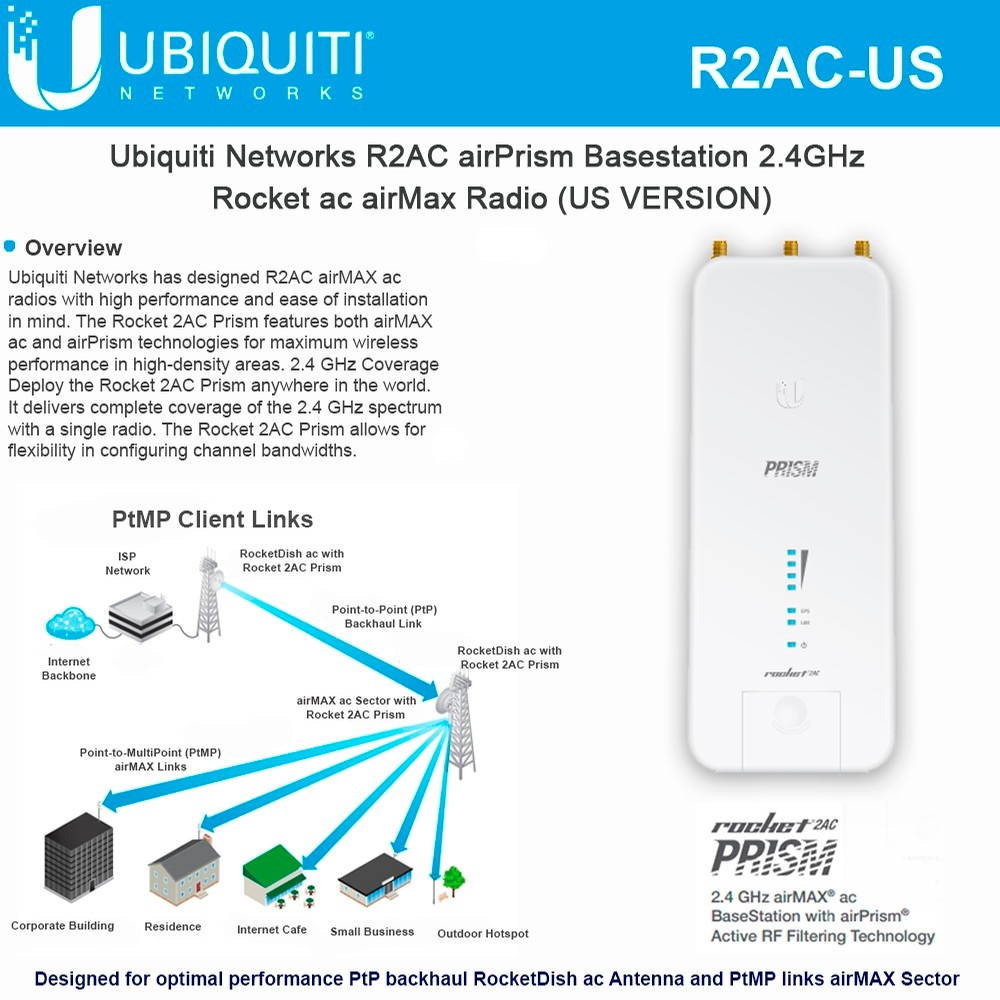

Pair the Rocket 2AC Prism with airMAX ac antennas for optimal performance:

• PtP backhaul RocketDish™ ac Antenna
• PtMP links airMAX ac Sector

2.4 GHz Coverage Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations).

Management Wi-Fi Radio

The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The Rocket® Prism AC features enhanced protection against ESD events.

GPS Synchronization

The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Revolutionary Filtering Technology

Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

Designed for High Performance

The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
