UAP-AC-M-2PK

Ubiquiti

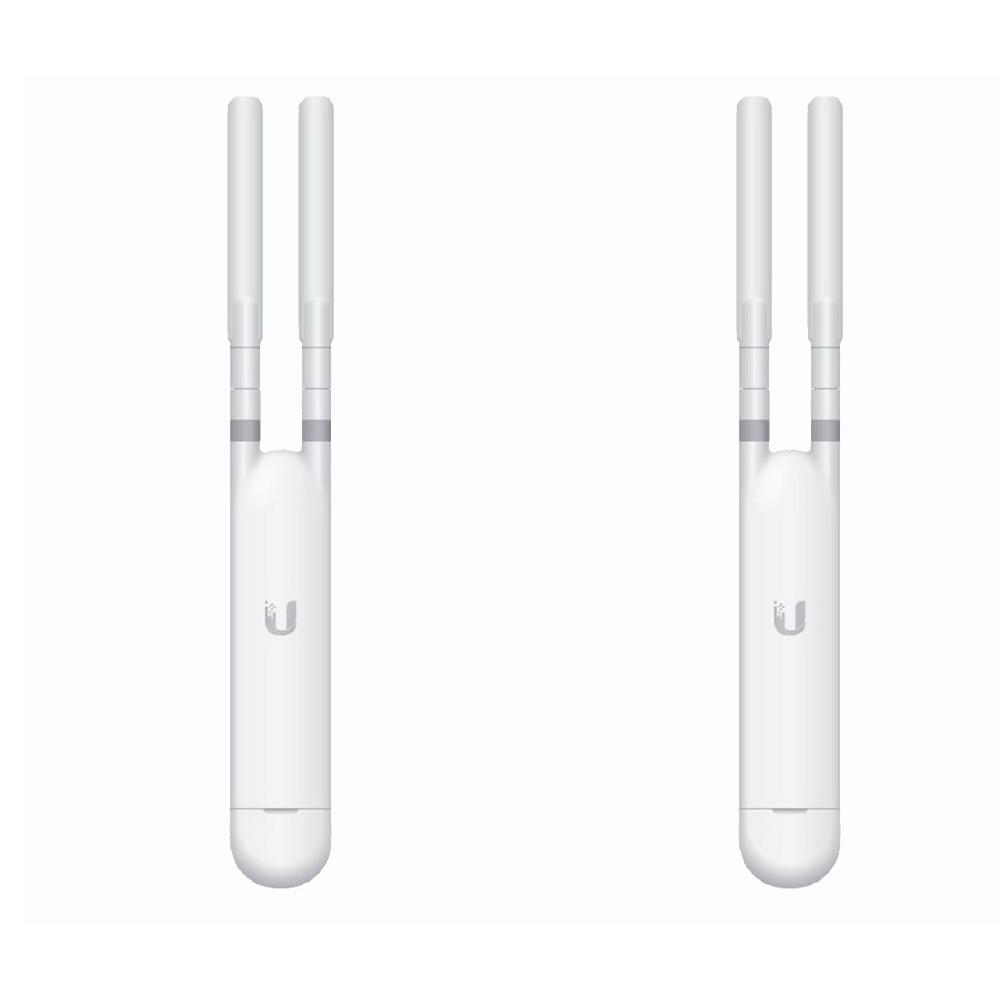

Ubiquiti Networks UAP-AC-M UniFi AP AC Mesh Wide-Area In/Out Dual-Band Access Point (2 Pack)


Model#: UAP-AC-M-2PK

Sku: IT1829

Out of stock

  • UAP-AC-M (2 Pack)

The Ubiquiti UAP-AC-M is an 802.11 mesh access point. With mesh multi-hop, you can can cover a large outdoor area with minimal infrastructure, with just a few mesh access points. These APs include adjustable dual-band omnidirectional antennas, but can be used with any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients. These models are great for temporary installations, with quick setup and takedown, ideal for music festivals and concert venues.

Product Features
• Compact Form Factor: The UniFi AC Mesh AP is designed to discreetly integrate into any environment.
• Weather-Resistant Enclosure: AP can be used both indoors and outdoors.
• LED: Unique provisioning LED provides administrator location tracking and alerts for each device.
• Versatile Mounting: UniFi AC Mesh AP can be mounted on a wall, pole, or fast mount of a Ubiquiti high-gain antenna. (all accessories are included).
• Multiple Power Options: Compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with an 802.3af Alternative switch, EdgePoint EP-R6, UniFi PoE Switch, or the included Gigabit PoE adapter.
• Antenna Options: Use the included omni antennas,or use the included fast-mount adapter to install the AP on an optional connectorized antenna for expanded range coverage and customized pattern shaping.

Product Specifications


Networking Interface: (1) 10/100/1000 Ethernet Port
Maximum TX Power:  2.4 GHz: 20 dBm / 5 GHz: 20 dBm
Antennas: (2) External Dual-Band Omni Antennas
    2.4 GHz: 3 dBi
    5 GHz: 4 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC

Advanced Traffic Management
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort, and Background
• Concurrent Clients: 200+

Supported Data Rates (Mbps)
• 802.11ac: 6.5 to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
• 802.11n: 6.5 to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
