UF-OLT

Ubiquiti

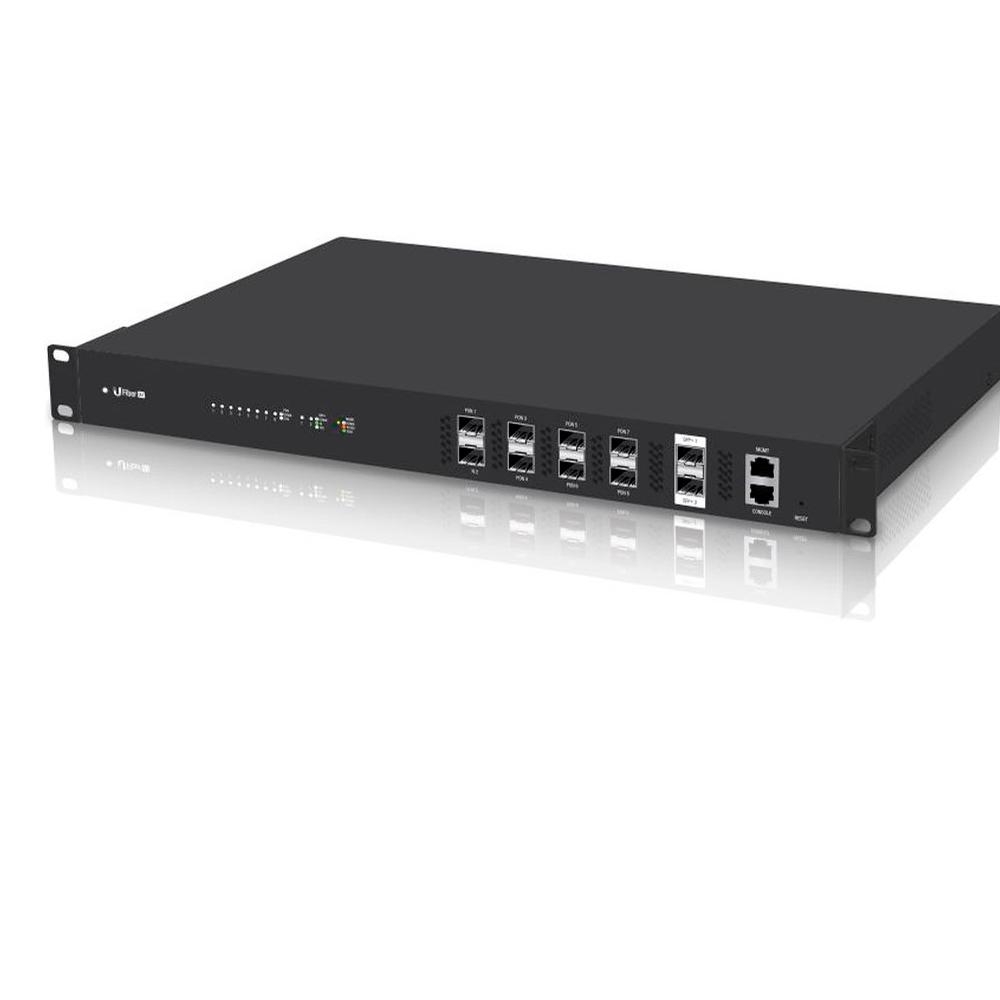

Ubiquiti UF-OLT 8-Port GPON Optical Line Terminal with SFP+


Product Highlights
  • GPON Range: Up to 20 km Link
  • (8) GPON SFP Ports
  • (2) SFP+ Ports
  • 2.488 Gbps Upstream (TX)
  • 1.244 Gbps Downstream (RX)

    • Model#: UF-OLT

    Sku: IT1844



    MSRP: $1,899.99

    In Stock

    Your Price: $1,899.99






    Modelo: UF-OLT

    The UFiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity.

    The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

    Features

    • Ports: (8) GPON SFP Ports, (2) SFP+ Ports
    • Concurrent Clients: 1024 ONUs
    • GPON Range: Up to 20 km Link
    • GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
    • Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
    • Max. Power Consumption: 40W
    • Power Method: 54VDC PSU Module

    Specifications UF-OLT

    Dimensions 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
    Weight (with Mount Brackets) 4.40 kg (9.7 lb) 4.495 kg (9.91 lb)
    Networking Interfaces (8) GPON OLT SFP (2) 1G/10G SFP+
    Concurrent Clients 1024 Registered ONUs/ONTs (128 per GPON Port)
    Management Interfaces (1) Ethernet for Out-of-Band Management, (1) RJ45 Serial Console Port
    GPON Speeds 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
    Operating Wavelengths 1490 nm TX, 1310 nm RX
    Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm RX: -8 dBm to -28 dBm
    Range Physical Reach Logical Reach Max. Differential Fiber Distance 20 km 60 km 20 km (B+) /40 km (C+)
    Power Method (2) PSU Module Bays
    Power Supply (1) 54V 100W AC/DC PSU Module (Included)
    Max. Power Consumption 40W (Excluding SFP Modules)
    Operating Mode OLT 2/3 Ethernet Switch and GPON Core
    Advanced QoS Supports 8 Priority Queues per User Port and Traffic Classification
    Processor Specs MIPS 1004kc 880 MHz Dual Core
    Memory Information 512 MB DDR3, 512 MB NAND
    Operating Temperature -10 to 45° C (14 to 113° F)
    Operating Humidity 10 to 90% Noncondensing
    Certifications CE, FCC, IC

    Datasheet

    PDF File Ubiquiti UF-OLT 8-Port GPON Optical Line Terminal with SFP+
