Ubiquiti Networks PS-5AC-45 US airMAX PrismStation 5AC 5GHz 14dBi CPE (w/ Horn Antenna) US
Model#: PS-5AC-45-US
Sku: IT1846
MSRP: $349.00
Out of stock
PS-5AC-45-US
Operating Frequency: 5150-5250 MHz*, 5725-5850 MHz*
Ubiquiti Networks PS-5AC-45 US is a 5GHz 14dBi CPE with a removable horn antenna. The PrismStation directs RF energy in a tighter beamwidth and filters noise.
Ubiquiti PrismStation 5AC directs RF energy in a tighter beamwidth using an interchangeable isolation antenna horn, available in both symmetrical and asymmetrical designs. With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

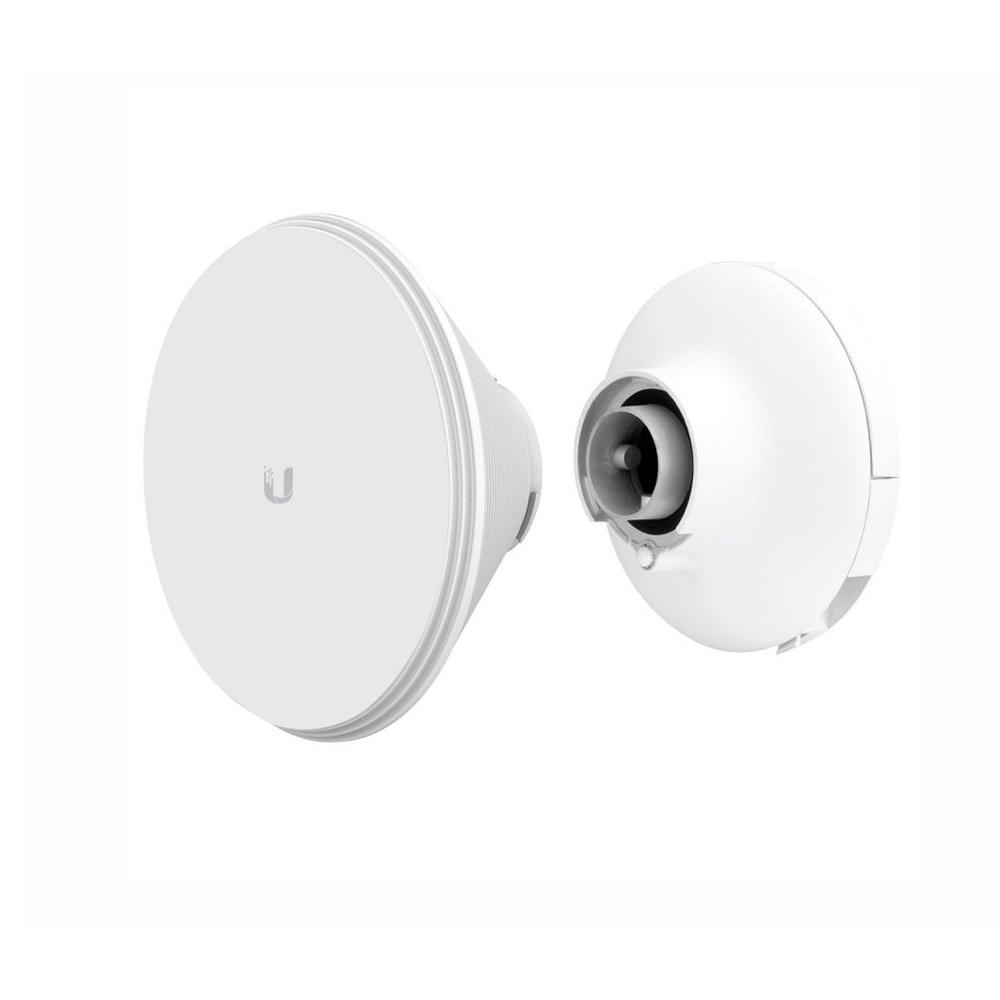

With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. The PrismStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain.
Product Specifications
• Dimensions: 174 x 174 x 184mm (6.85 x 6.85 x 7.24")
Without Horn Antenna: 155 x 155 x 104mm (5.16 x 5.16 x 4.09")
Mounting Hardware Only: 83 x 117 x 69mm (3.27 x 4.61 x 2.72")
• Weight: 1.07kg (2.36lbs)
Without Horn Antenna: 0.77kg (1.70lbs)
Mounting Hardware Only: 0.79kg (1.74lbs)
• Gain: 14dBi
• Beamwidth: 45° (Default Horn)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• RF Connector: (1) GPS
• LED: (1) Power
• Max. Power Consumption: 10W
• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Processor Specs: MIPS 74 Kc
• Memory: DDR2 128MB
• Max. VSWR: 2:1
• Polarization: Dual-Linear
• Wind Loading: 31N @ 200km/h (7lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Mounting: Pole-Mount (Kit Included)
• ESD/EMP Protection: ±24kV Contact/Air
• Certifications: FCC, IC, CE
• Operating Frequencies:
2412 - 2462MHz
USA U-NII-1: 5150 - 5250MHz
USA U-NII-3: 5725 - 5850MHz
Product Includes:
• (1) PrismStation AC
• (1) GPS Antenna
• (1) Metal Strap
• (1) Mounting Bracket
• (1) Pole Clamp
• (2) Carriage Bolts
• (2) Flange Nuts
• (1) Allen wrench
• (1) Gigabit PoE (24V, 1A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
