UAP-AC-LR-5-BD2

Ubiquiti

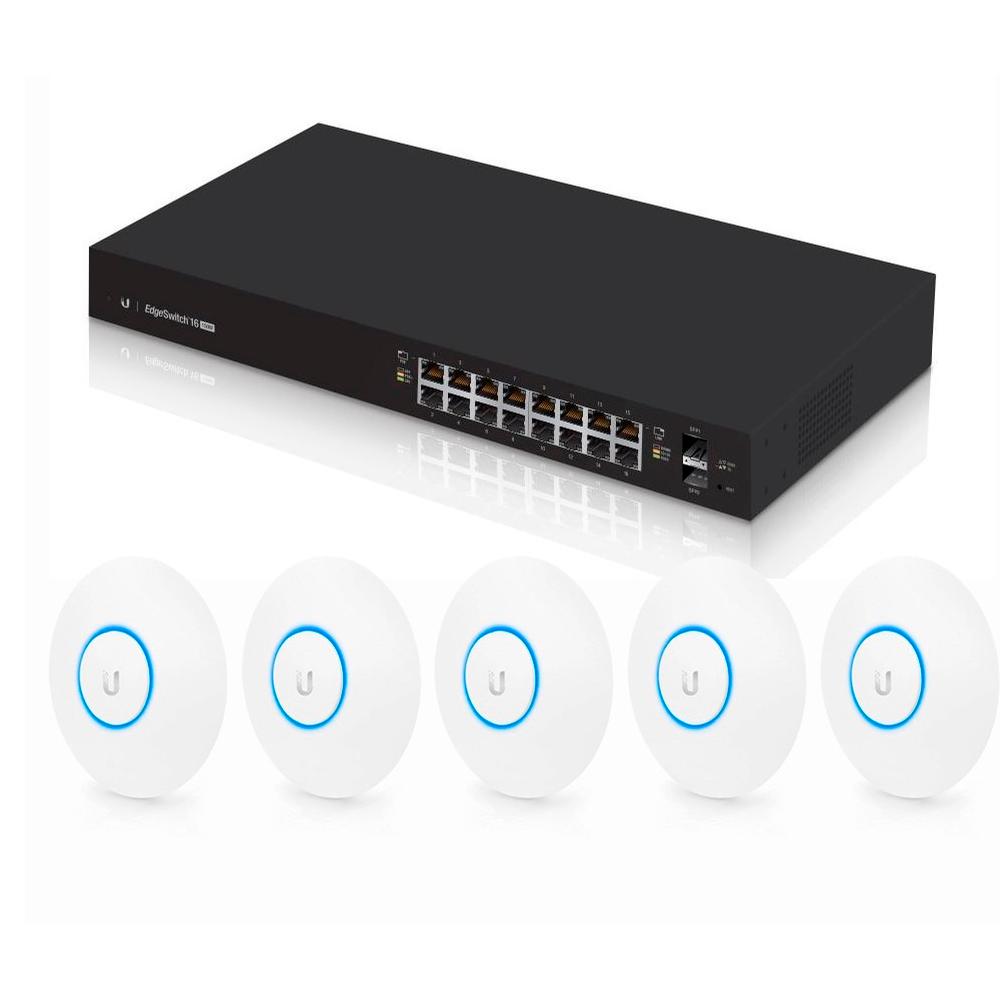

Ubiquiti UniFi AP AC LR Wireless AP Long Range UAP-AC-LR-5 w/ EdgeSwitch ES-16-150W 16-Port Managed


Model#: UAP-AC-LR-5-BD2

Sku: IT1851

Out of stock

Model: UAP-AC-LR-5

                                                        UniFi AP AC LR

                                          802.11ac Long Range Access Point

The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high-performance wireless networks.

Ideal for long-range deployments, the UAP-AC-LR-5 UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band. The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

  • Innovative Antenna Design

The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

  • Designed for Optimal RF Performance

The newly redesigned UniFi Controller optimizes RF performance:

Scalable Enterprise Wi-Fi Mana

+

Model: ES-16-150W

                                          EdgeSwitch

                                    Managed PoE+ Gigabit Switch with SFP

The EdgeSwitch ES-16-150W is 16-Port Gigabit switch. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.

EdgeSwitch, 16 ports, Managed PoE+ Gigabit Switches, 150 W. Non-Blocking Throughput Switching performance, Gigabit Ethernet RJ45 and SFP+/SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capability.



  • Enterprise-Class Features

The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

  • Convenient PoE+ Support

The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

UAP-AC-LR-5
• Networking Interface: (1) 10/100/1000 Ethernet Ports
• Antennas: (1) Dual-Band Antenna, Tri-Polarity, 3 dBi
• Max TX Power: 2.4GHz: 24 dBm - 5GHz: 22 dBm
• Buttons: Reset
• Wifi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter
• Maximum Power Consumption: 6.5W
• BSSID: Up to Four Per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC
• Mounting: Wall and Ceiling
• Operating Temperature: -10 to 70°C (14 to 158°F)
• Operating Humidity: 5 to 95% non-condensing

Advanced Traffic Management
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort and Background
• Concurrent Clients: 200



+

ES-16-150W

  • 18Gbps Total Non-Blocking Throughput
  • 36Gbps  Switching Capacity
  • Includes PoE Output: 150W
  • Excludes PoE Output: 28W
  • (16) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports
  • (1) RJ45 Serial Port, Ethernet In/Out Band
  • CE, FCC, IC
  • Yes, 1U High
  • PoE+ IEEE 802.3af/at (Pins 1,2+;3,6-) / 24VDC Passive PoE (Pins 4,5+;7,8-)
