AF-4X US

Ubiquiti


Ubiquiti Networks airFiberX AF-4X US airFiber X PtP 4GHz Carrier Backhaul Radio 500 Mbps


Product Highlights
  • Ubiquiti airFiberX AF-4X US airFiber X PtP 4GHz Carrier Backhaul Radio 500 Mbps
  • The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.
  • INVICTUS custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
  • The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket link that uses a RocketDish RD-5G30/RD-5G34* antenna.
  • The airFiber X features multiple channel width options to suit your deployment needs.

    • Model#: AF-4X US

    Sku: IT1872



    MSRP: $509.99


    Out of stock

    Model: AF-4X-US

                                                 airFiber X

                                                        Carrier Backhaul Radio

    The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.

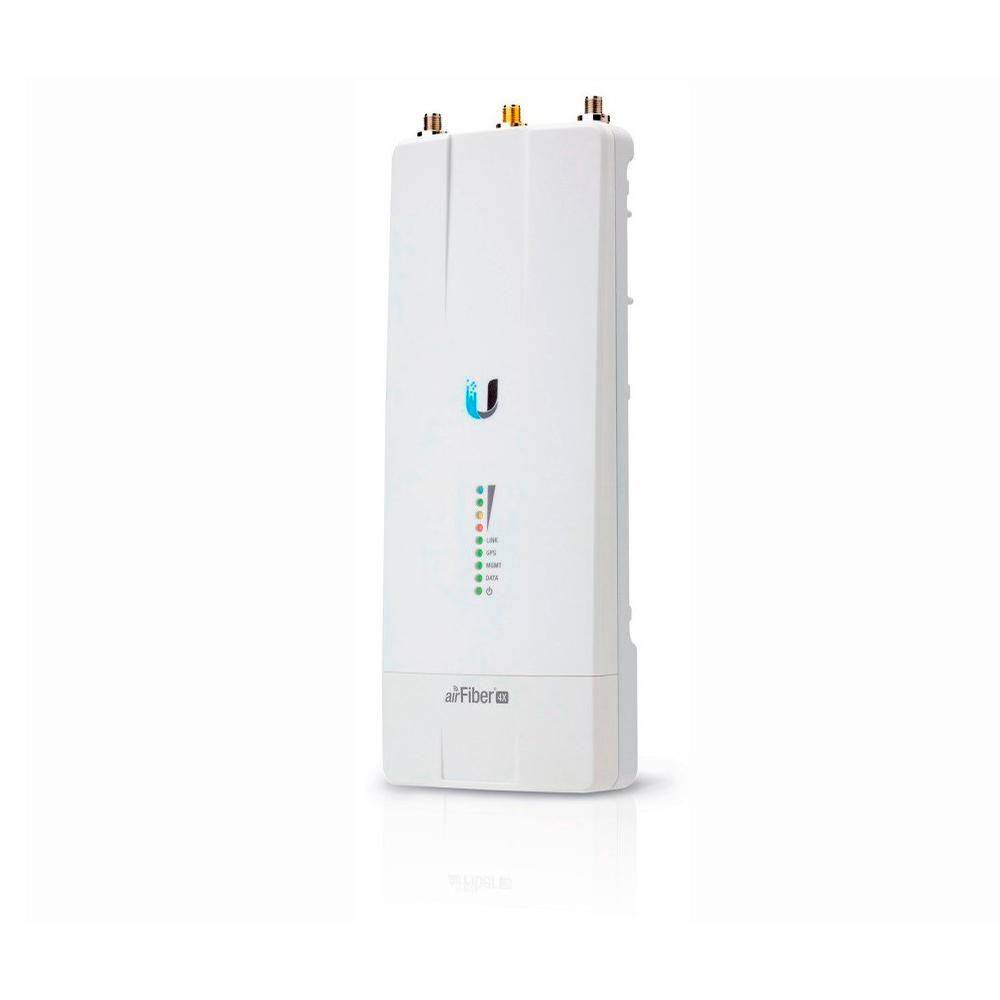

    The airFiber AF-4X-US 4 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 4X also allows users to customize backhaul links or upgrade existing PtP links.

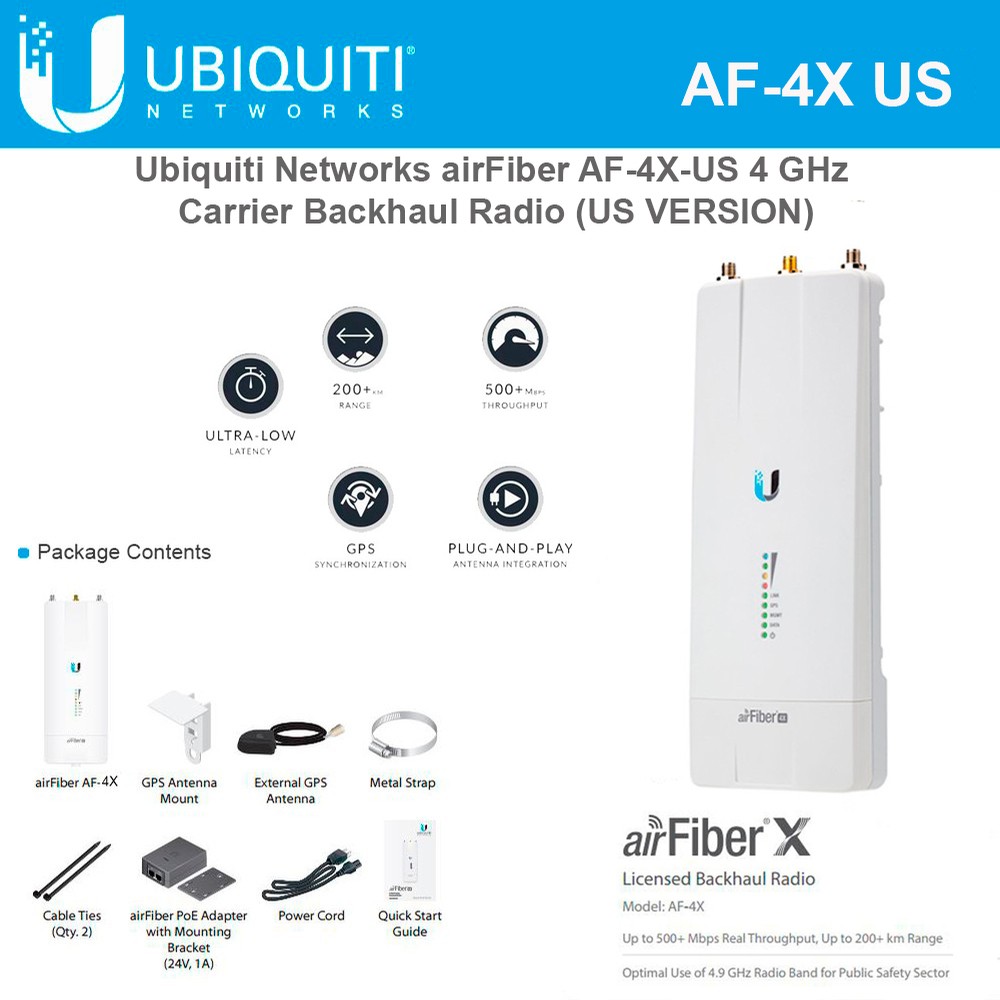

    The airFiber AF-4X operates using the 4 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord.



    • Engineered for Performance

    Ubiquiti’s INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

    • Carrier Backhaul for the World

    Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.

    • Optimal Operation and Channel Configuration

    Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

    Model: AF-4X-US

    • Range: up to 124 mi (200 km)
    • Up to 500+ Mbps Real Throughput
    • Full Band Certification including DFS
    • Operates using the 4 GHz Band
    • Hybrid Division Duplexing (HDD)
    • Low Latency
    • Enhanced Spectral Efficiency
    • Operation in Unlicensed Bands
    • Co-Location
    • GPS Sync & Clean Power Output
    • (1) 10/100/1000 Ethernet Port
    • (1) 10/100 Ethernet Port
    • 24V, 1A PoE Gigabit Adapter (Included)
    • Passive PoE

    Specifications:

    • RF Connectors: 2 x RP-SMA Weatherproof (CH0, CH1)/1 x SMA Weatherproof (GPS)
    • GPS Antenna: External, Magnetic Base
    • Power Supply: 24 V, 1 A PoE Gigabit Adapter (included)
    • Power Method: Passive Power over Ethernet
    • Mounting: airFiber X Mount (Rocket Mount compatible) / GPS Pole Mount (included)
    • Certifications: CE, FCC, IC

    Networking Interfaces:

    • Data Port: 1 x 10/100/1000 Ethernet Port
    • Management Port: 1 x 10/100 Ethernet Port

    System:

    • Processor: INVICTUS IC
    • Maximum Throughput: 500+ Mbps
    • Maximum Range: 656,168' / 200,000 m
    • Encryption: 128-bit AES
    • Operating System: airOS F
    • Wireless Modes: Master/Slave

    Dimensions & Weight:

    • Dimensions: 8.82 x 3.32 x 1.89" / 224.03 x 84.33 x 48.01 mm
    • Weight: 0.77 lb / 0.35 kg

    Packaging Info:

    • Package Weight     2.55 lb
    • Box Dimensions (LxWxH)     10.4 x 4.4 x 4.3"
