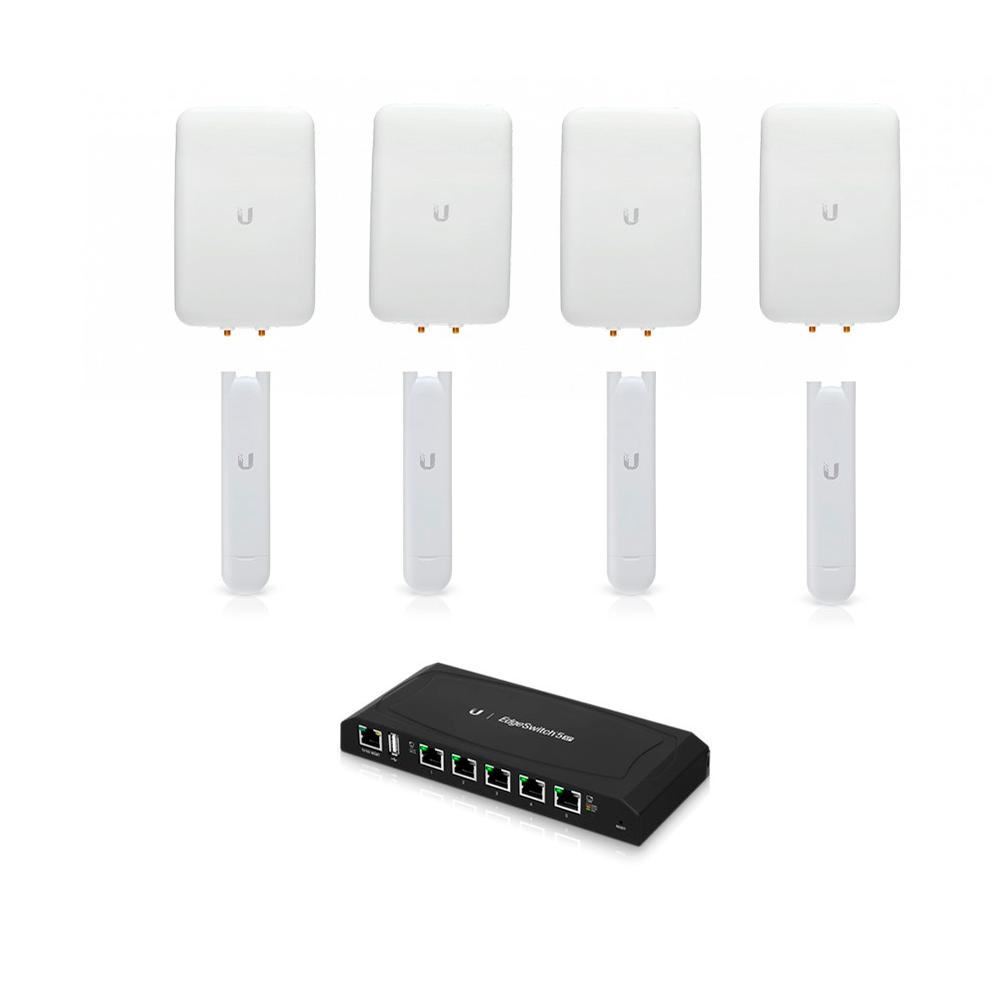

Ubiquiti UAP-AC-M-US UniFi AP AC Mesh Dual-Band Access Point (4-Pack) with UMA-D UniFi Dual-Band Directional Antenna (4-Pack) and EdgeSwitch XP ES-5XP 5-Port Advanced PoE Controller Managed Switch Gigabit
Product Highlights
Model#: UAP-AC-M-US-BD3
Sku: IT1910
Out of stock
Model: UAP-AC-M-US (4 Units)
The Ubiquiti UAP-AC-M US is an 802.11 mesh access point. With mesh multi-hop, you can can cover a large outdoor area with minimal infrastructure, with just a few mesh access points. These APs include adjustable dual-band omnidirectional antennas, but can be used with any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients. These models are great for temporary installations, with quick setup and takedown, ideal for music festivals and concert venues.
Product Features
• Compact Form Factor: The UniFi AC Mesh AP is designed to discreetly integrate into any environment.
• Weather-Resistant Enclosure: AP can be used both indoors and outdoors.
• LED: Unique provisioning
+
Model: UMA-D (4 Units)
The Ubiquiti UniFi Antenna, UMA-D, is an optional mesh antenna designed to work with the Ubiquiti UniF® AC Mesh AP, the UAP-AC-M. With dual-band support, the Ubiquiti UMA-D expands range coverage and provides customized pattern shaping.
Product Features
• Antenna Features: Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
• Weather-Resistant Enclosure: Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
• Versatile Mounting: The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
• Compatibility: The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
+
Model: ES-5XP
EdgeSwitch XP Advanced Power over Ethernet Switch
The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected. EdgeSwitch XP is available in multiple versions to meet your deployment needs.
Model: UAP-AC-M-US (4 Units)
• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35 ")
• Weight: 152 g (5.36 oz) with Antennas
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Power Method:
24V Passive PoE (Pairs 4, 5+; 7,8 Return)
802.3af Alternative A (Pairs 1, 2+; 3,6 Return)
(Supported Voltage Range: 44 to 57 VDC)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Save: Supported
• Maximum Power Consumption: 8.5 W
• Maximum TX Power:
2.4 GHz: 20 dBm
5 GHz: 20 dBm
• Antennas: (2) External Dual-Band Omni Antennas
2.4 GHz: 3 dBi
5 GHz: 4 dBi
• Wi-Fi Standards: 802.11 a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
+
Model: UMA-D (4 Units)
• Enclosure: Outdoor UV Stabilized Plastic
• RF Connections: (2) RP-SMA
• Supported Frequency Range: 2.4 - 2.5GHz, 5.1 - 5.9GHz
• HPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
• VPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
• Elevation Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
• Maximum VSWR: 2:1
• Polarization: Dual-Linear
• Cross-Pol Isolation: 2.4GHz - 25dB / 5Ghz - 30dB
• Antenna Gain: 2.4GHz - 10dBi / 5Ghz - 15dBi
• Mounting: Wall/Pole (kits included)
• Dimensions: 7.93 x 5.04 x 1.28"
+
Model: TS-5-POE (1 Unit)
- 5 Gigabit PoE Ports
- 5 x 10/100/1000 Ethernet Data Ports
- 1 x 10/100 Ethernet Management Port
- MIPS 24K, 400 MHz Processor
- USB 2.0 Type A Port
- 64MB System Memory
- 8MB Code Storage
- 24V Configurable Passive PoE
- PoE Configuration Interface
- Wall-Mountable
- CE, FCC, IC Certified
