Ubiquiti Networks NS-5AC-US 5GHz NanoStation 5AC -US Version
Product Highlights
Model#: NS-5AC-US
Sku: IT1913
MSRP: $129.99
Out of stock
Your Price: $129.99
Model: NS-5AC-US

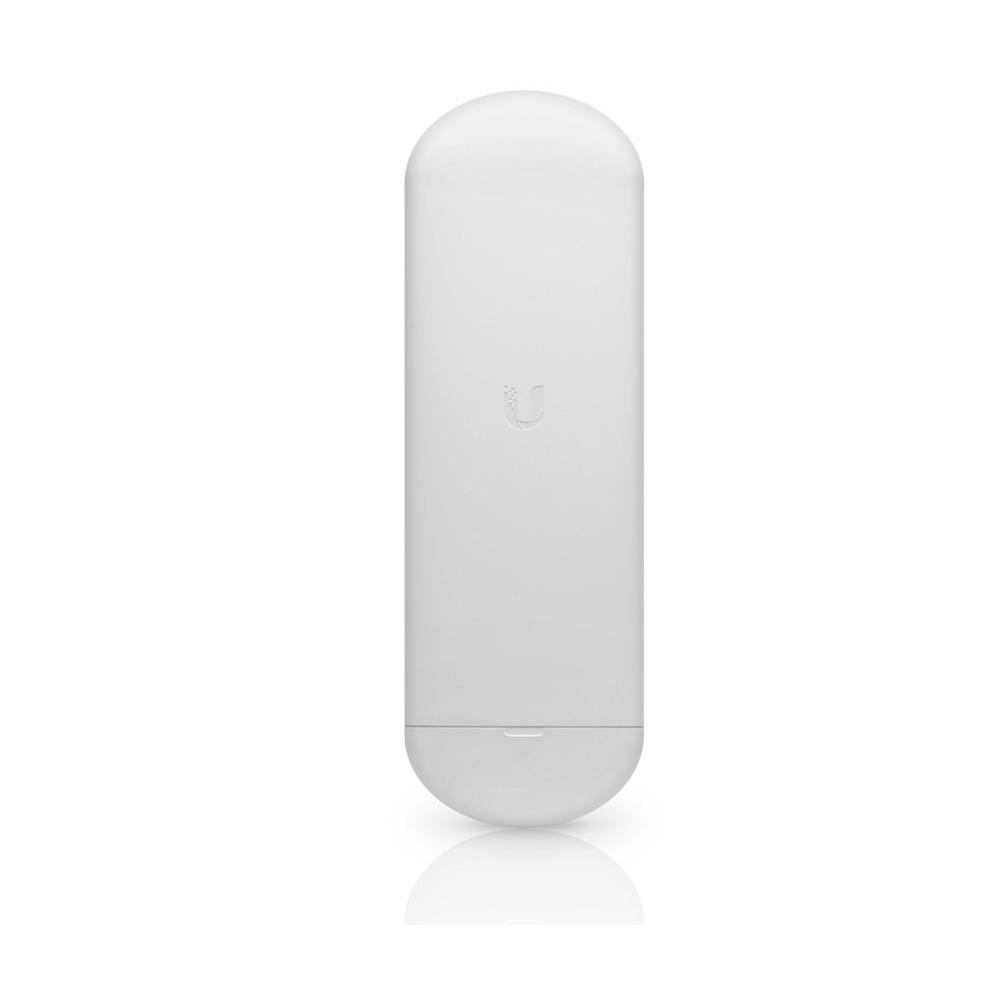

Ubiquiti NanoStation AC 5GHz airMAX ac CPE
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry. The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration. Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
- Versatile Mounting: Nanostation AC are suitable for indoor and outdoor installations
- Improved Surge Protection: The NanoStation AC utilize the latest ESD Protection to help protect against power surges.
- Efficient Footprint: The radio and antenna are combined into a single body that takes up minimal space.
- Quick Installation: No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
Features:
- Frequency 5GHz
- Throughput 450+ Mbps
- Range 15+ km
- Management Radio ?
- PoE PSU Included ?
- 802.3af Support ?
- Secondary Ethernet Port with PoE Out ?
Specifications NS-5AC-US
| Dimensions With Mount Without Mount | 257 x 84 x 30 mm (10.12 x 3.31 x 1.18") 257 x 84 x 41 mm (10.12 x 3.31 x 1.61") |
| Weight | 233 g (8.22) oz |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Included) |
| Max. Power Consumption | 8.5W |
| Power Method | 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Gain | 16 dBi |
| Networking Interface | (2) 10/100/1000 Mbps Ethernet Ports |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2 |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.6:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | UV Resistant Polycarbonate |
| LEDs | (1) Power, Eth1, Eth2; (1) Signal Strength |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| ESD/EMP Protection | ±24kV Contact/Air |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
