UAP-AC-LITE-BD6

Ubiquiti

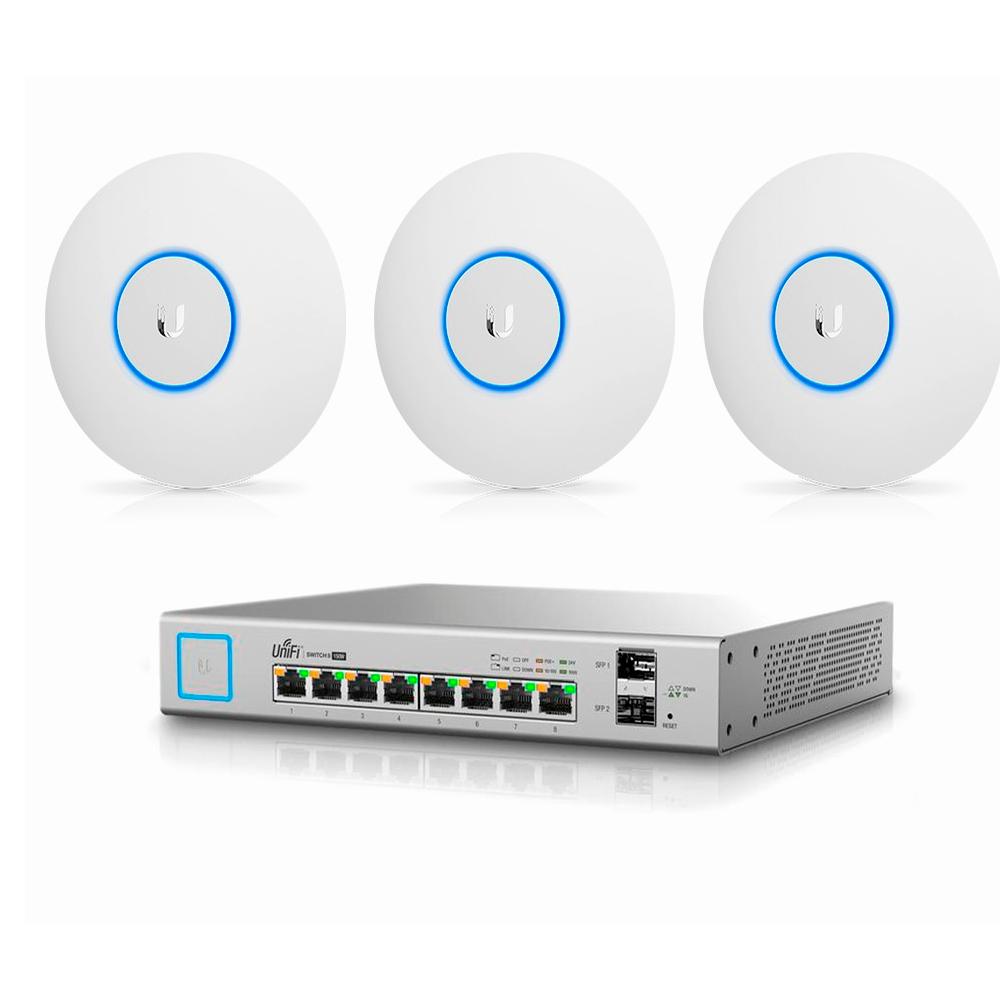

Ubiquiti UAP-AC-LITE (x3) Access Point Dual Band 11ac + US-8-150W Managed Switch PoE+ 8-Ports SFP


Model#: UAP-AC-LITE-BD6

Sku: IT1932

Out of stock

Ubiquiti UniFi Access Point UAP-AC-LITE Dual Band - 3Pack w/ US-8-150W Managed Switch 8-Ports

Model: UAP-AC-LITE (3 Units)

Ubiquiti's Lite Indoor WiFi Access Point supports 802.11ac and speeds of up to 867Mbps in the 5GHz radio band and up to 867Mbps in the 2.4GHz radio band and up to 300Mbps. The UAP-AC-LITE offers simultaneous dual-band operation with 2x2 MiMO technology for each band. It has a range of up to 122m (400ft) and one Gigabit Ethernet ports.

- (5 GHz Speed 867Mbps; 2.4 GHz Speed 300Mbps)

  • Dual-Radio Performance, Gigabit Speeds

The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.

+

Model: US-8-150W (1 Unit)

The US-8-150W UniFi Managed PoE+ Gigabit 8 Port Switch with SFP from Ubiquiti Networks it is easy to expand the capacity and reach of an existing network. This switch features 8 Gigabit Ethernet ports along with 2 SFP ports making it easy to incorporate high speed local storage networks into the configuration. In addition to Gigabit Ethernet connectivity, the network ports support 802.3af/at PoE networking standards designed to power devices such as VoIP phones, access points, IP cameras, and more.

  • PoE+

The UniFi Switch models are available with 8 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

Model: UAP-AC-LITE (3 Units)
• Networking Interface: (1) 10/100/1000 Ethernet Ports
• Antennas: (2) Dual-Band Antennas, 3 dBi Each
• Max TX Power: 2.4GHz: 20 dBm - 5GHz: 20 dBm
• Buttons: Reset
• Wifi Standards: 802.11 a/b/g/n/ac
• Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter
• Maximum Power Consumption: 6.5W
• BSSID: Up to Four Per Radio
• Power Save: Supported
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Certifications: CE, FCC, IC
• Mounting: Wall and Ceiling
• Operating Temperature: -10 to 70°C (14 to 158°F)
• Operating Humidity: 5 to 95% non-condensing

Advanced Traffic Management
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• WMM: Voice, Video, Best Effort and Background



+

Model: US-8-150W (1 Unit)

  • (8) Gigabit RJ45 Ports
  • (2) SFP Ports
  • Non-Blocking Throughput: 10 Gbps
  • Switching Capacity: 20 Gbps
  • Forwarding Rate: 14.88 Mpps
  • Maximum Power Consumption: 150W
  • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
  • Quiet, Fanless Operation
  • Rackmountable with Rack-Mount Brackets (Included)
  • Desktop-Mountable (Do not physically stack the US-8-150W.)
