AF-5XHD-US-BD1

Ubiquiti

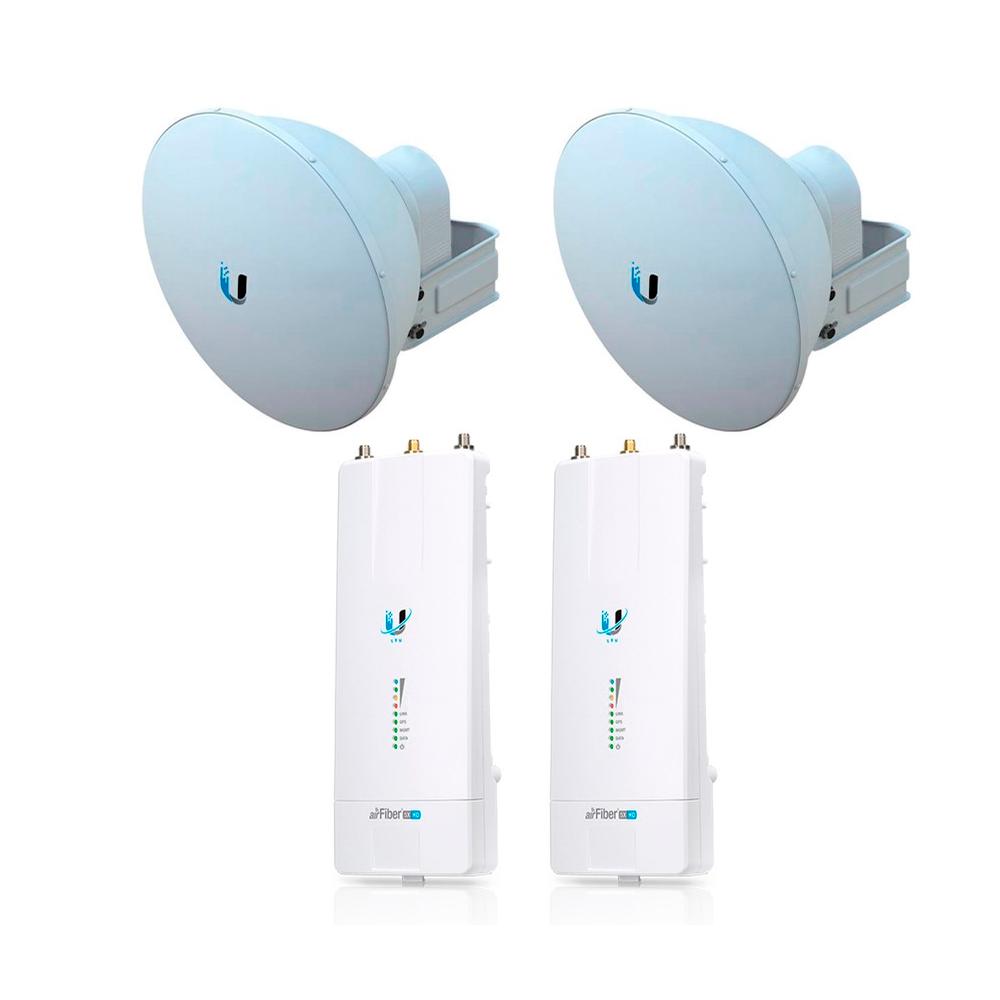

Ubiquiti airFiber 5XHD 2PACK AF-5XHD 5GHz PtP w/2x airFiber X dish antenna AF-5G23-S45 23dBi slant 45


Product Highlights
  • AirFiber X PtP AF-5XHD US (2pack) 5GHz1Gbps Radio WISP Backhaul
  • The New Standard for WISP Backhaul Performance, true 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s.
  • Technology Specifically Designed for WISP’s Game-Changing LTU Technology Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU.
  • The airFiber Dish AF-5G23-S45 (2pack) 5GHz 23dBi Slant 45 Antenna for airFiber. U Fiber offers internet and telecom service providers a cost-effective fiber optic delivery system for data, voice IPTV/VoD
  • The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

    • Model#: AF-5XHD-US-BD1

    Sku: IT1945

    Out of stock

    Model: AF-5XHD-US (2 UNITS)

    Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components.

    The AF -5XHD features industryleading 21.2 bps/Hz spectral efficiency*, line -rate data packet processing for up to 1.34 Gbps of real data throughput*, and innovative xtreme Range Technology (xRT ™)

    • Pair the AF-5XHD with a compatible Ubiquiti airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution.

    +

    Model: AF-5G23-S45 (2 UNITS)

    Ubiquiti Networks AF-5G23-S45 23 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio delivers 2x2 dual-polarity performance. Incorporating a dish reflector design for consistent beam directivity, the airFiber X antenna features robust mechanical design using industrial-strength hardware for outdoor application use.

    • The airFiber X antenna and airFiber X radio have been designed to seamlessly work together.

    • The antenna has a built-in airFiber X radio mount, so installation requires no special tools.

    • Snap the airFiber X radio securely into place and mount the antenna to get the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

    Model: AF-5XHD-US (2 UNITS)

    • Processor: airFiber LTU IC
    • Maximum Throughput: 1 Gbps
    • Maximum Range: 100 km
    • Packets per Second: 2+ million
    • Encryption: WPA2-PSK (AES)
    • OS: airFiber-airOS 8
    • Wireless Modes: AP/CPE


    Radio

    • Frequency: 5150-5250 MHz; 5740-5850 MHz (dependent on regulatory region)
    • Frequency Range: 4.8 - 6.2 GHz (dependent on regulatory region)
    • Max. Conducted TX Power: 29 dBm (dependent on regulatory region)
    • Frequency accuracy: <2 ppm
    • Channel Bandwidth: 10/20/30/40/50/60/80/100 MHz

    Product Specifications

    • Dimensions: 8.82 x 3.23 x 1.89"
    • Weight: 12.3 oz
    • RF Connectors: (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS)
    • GPS Antenna: External, Magnetic Base
    • Power Supply: 24V, 1A Gigabit PoE Adapter
    • Power Method: Passive Power over Ethernet; pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
    • Max. Power Configuration: 6-12 W
    • Supported voltage consumption: 24 - 50 V DC
    • Mounting: airFiber X mount (Rocket mount compatible) GPS pole mount (included)
    • Operating Temperature: -40°C to 55°C (-40°F to 131°F)
    • IP rating: IP67
    • Certifications: CE, FCC, IC
    • Networking Interface: Data port: (1) 10/100/1000 Ethernet port Management port: (1) 10/100/1000 Ethernet port



    +

    Model: AF-5G23-S45 (2 UNITS)

    • Frequency Range: 5.1 - 5.9GHz
    • Gain: 23dBi
    • +45° Beamwidth: 10° (3dB)
    • -45° Bewamwidth: 10° (3dB)
    • F/B Ratio: 30dB
    • Max. VSWR: 1.5:1
    • Wind Loading: 190N @ 200km/h (43lbf @ 125mph)
    • Wind Survivability: 200km/h (125mph)
    • Polarization: Dual-Linear
    • Cross-pol Isolation: 35dB Min.
    • ETSI Specification: EN 302 326 DN2
    • Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
