SKU: ACB-AC-US

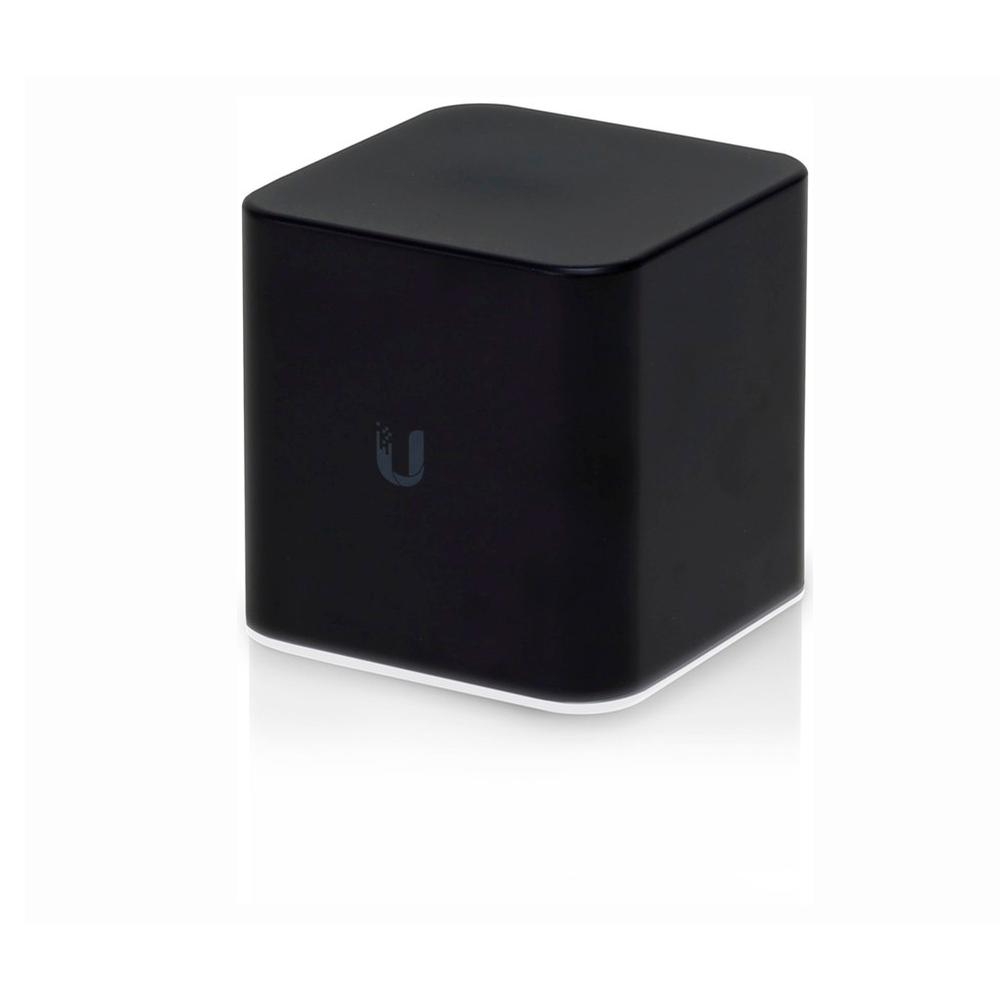

Ubiquiti Networks' airCube is a cost-effective wireless access point for use in your customer deployments. It offers convenient PoE passthrough to power a 24V airMAX CPE device, so you can use a single PoE adapter to power both devices. To provide sufficient power for PoE passthrough, the airCube AC requires the included power adapter or 24V, 1A PoE input.
The airCube AC Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
Management options feature a graphical user interface designed for streamlined setup and control. Available options include:
Weight | 280g |
Power Supply | 24VDC |
Supported Power Voltage | 22-26V |
Max Power Consumption | 8.5W |
PoE Out | Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port |
Management Interface | Wi-Fi / Ethernet |
Networking Interface | (4) Gigabit Ethernet Ports |
Max. TX Power | 22 dBm |
Antenna Gain | 2.4GHz, 4dBi / 5GHz, 5dBi |
Max. Speeds | 2.4GHz, 300Mbps / 5GHz, 866.7Mbps |
Enclosure Characteristics | Black Plastic |
ESD/EMP Protection | ±24 kV Contact / Air |
Operating Temperature | -10 to 50° C (-14 to 122° F) |
Operating Humidity | 5 to 95% Non-condensing |
Certifications | CE, FCC, IC |
