NS-5AC

Ubiquiti

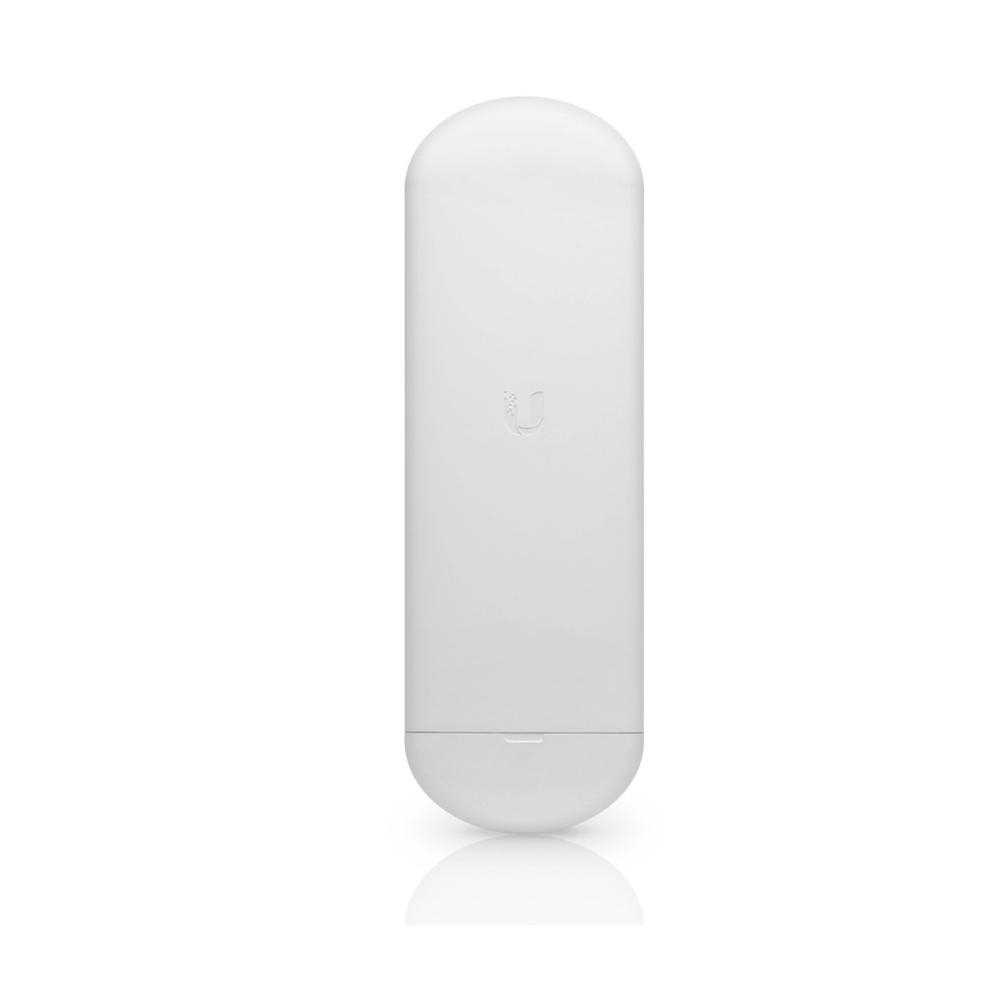

Ubiquiti Networks NS-5AC 5GHz NanoStation 5AC - International Version


Product Highlights
  • Frequency 5GHz
  • Management Radio
  • PoE PSU Included
  • 802.3af Support
  • Secondary Ethernet Port with PoE Out

    • Model#: NS-5AC

    Sku: IT1968



    MSRP: $149.99

    In Stock

    Your Price: $149.99






    Model: NS-5AC  - International Version

    Ubiquiti NanoStation AC 5GHz airMAX ac CPE

    The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry. The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration. Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

    • Versatile Mounting: Nanostation AC are suitable for indoor and outdoor installations
    • Improved Surge Protection: The NanoStation AC utilize the latest ESD Protection to help protect against power surges.
    • Efficient Footprint: The radio and antenna are combined into a single body that takes up minimal space.
    • Quick Installation: No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.

    Features:

    • Frequency 5GHz
    • Throughput 450+ Mbps
    • Range 15+ km
    • Management Radio ?
    • PoE PSU Included ?
    • 802.3af Support ?
    • Secondary Ethernet Port with PoE Out ?

    ?????Specifications NS-5AC

    Dimensions With Mount Without Mount 257 x 84 x 30 mm (10.12 x 3.31 x 1.18") 257 x 84 x 41 mm (10.12 x 3.31 x 1.61")
    Weight 233 g (8.22) oz
    Power Supply 24V, 0.5A Gigabit PoE Supply (Included)
    Max. Power Consumption 8.5W
    Power Method 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Gain 16 dBi
    Networking Interface (2) 10/100/1000 Mbps Ethernet Ports
    Channel Bandwidths 10/20/30/40/50/60/80 MHz
    Processor Specs Atheros MIPS 74Kc, 560 MHz
    Memory 64 MB DDR2
    Cross-pol Isolation 20 dB Minimum
    Max. VSWR 1.6:1
    Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
    Polarization Dual Linear
    Enclosure UV Resistant Polycarbonate
    LEDs (1) Power, Eth1, Eth2; (1) Signal Strength
    Mounting Pole-Mount (Kit Included)
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Noncondensing
    RoHS Compliance Yes
    ESD/EMP Protection ±24kV Contact/Air
    Shock & Vibration ETSI300-019-1.4
    Certifications CE, FCC, IC
