B-DB-AC-US-BD5

Ubiquiti

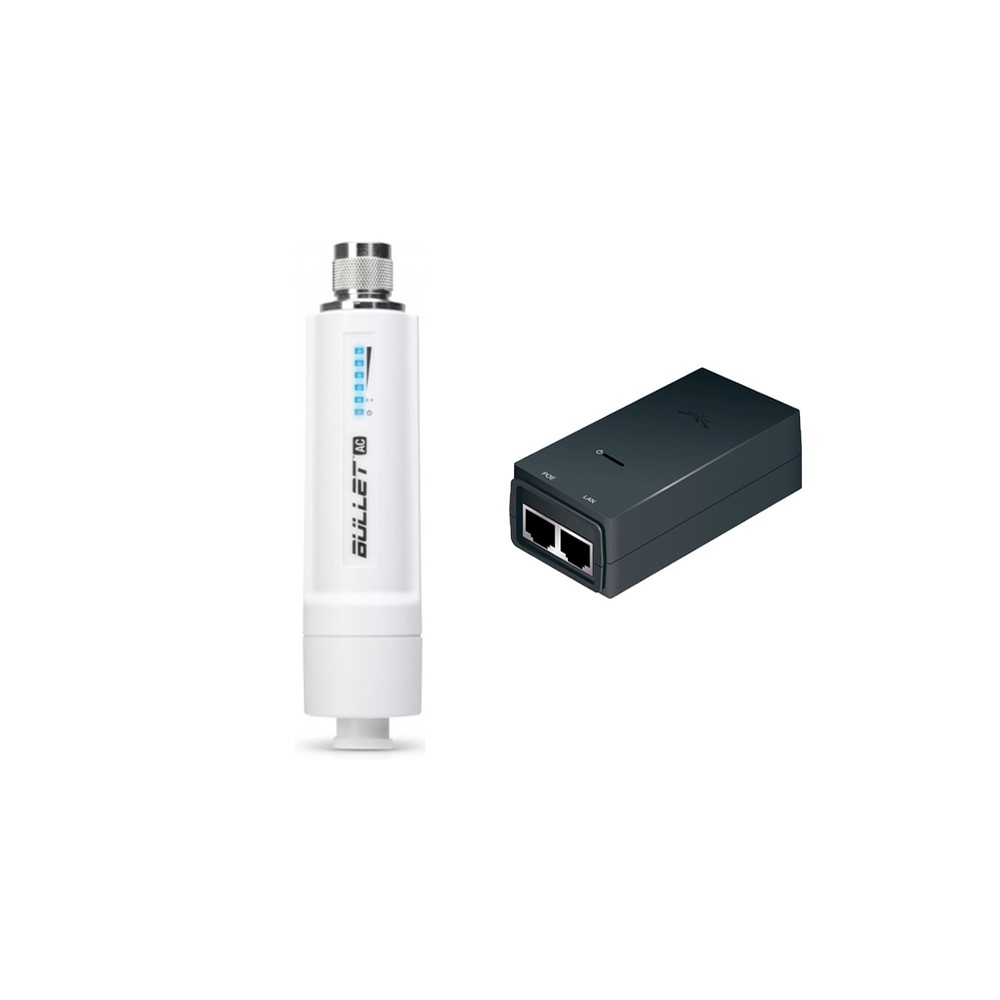

Ubiquiti Bullet ac B-DB-AC-US Dual-Band Radio Outdoor Wireless Device with PoE Adapter POE-24-12W 24V DC 0.5A 12 Watts


Product Highlights
  • Ubiquiti Bullet ac B-DB-AC-US Dual-Band 2.4/5GHz 802.11 AC Integrated Radio Outdoor Wireless Access Point
  • Bullet AC covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links.
  • The Bullet design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.
  • The BulletAC delivers up to 300+ Mbps real TCP/IP throughput.
  • Ubiquiti PoE Adapters POE-24-12W Power over Ethernet Adapters

    • Model#: B-DB-AC-US-BD5

    Sku: IT1999

    Out of stock

    Model: B-DB-AC-US (1 Unit)

    Bullet AC Dual-Band airMAX ac Radio with Dedicated Wi-Fi Management

    The Bullet AC covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links.Bullet Dual-Band AC airMAX ac Bullet Radio with Dedicated WiFi Management 802.11ac, 2.4/5 GHz, Dual-band, 22dBm ouput power, PoE, N-type.



    • Fully Integrated Radio

    Launched in 2008, the Bullet design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.



    •  Carrier-Class Throughput

    The Bullet AC delivers up to 300+ Mbps real TCP/IP throughput.



    • Durability to Last Outdoors

    The robust, weatherproof case withstands harsh outdoor conditions.



    • Plug and Play Integration

    Connect the Bullet AC to any existing antenna with an N-type female connector to create an airMAX® basestation.





    Model: POE-24-12W  (1 Unit)

    PoE Adapters Power over Ethernet Adapters

    Ubiquiti Networks POE-24-12W is for use with airMAX and UniFi products. It's a replacement 12V, 12W PoE adapter, with remote hardware reset circuitry.

    The POE-24 (24V, 12W) features earth grounding/ESD protection, power LED, and is available in USA (NEMA 5-15). Remote re-start capability is a key feature of the power injector.



    • Device Protection

    PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

    • Convenient Wall-Mounting

    The 24V, 0.5A models, POE-24-12W, are wall-mountable using the optional wall-mount brackets.



    Model: B-DB-AC-US (1 Unit)

    • Frequency

    2412 - 2462

    U-NII-1: 5150 - 5250 U-NII-3: 5725 - 5850

    • Dimensions

    190 x 46 mm (7.48 x  1.81")

    • Weight

    196 g (6.91 oz)

    • Enclosure

    Powder-Coated Aluminum

    • Networking Interface

    Gigabit Ethernet Port

    • Antenna Connector

    N-Type Connector

    • Throughput

         2.4 GHz - 160+ Mbps
         5 GHz - 300+ Mbps

    • Max. Power Consumption

    8W

    • Output Power

    22 dBm

    • Power Supply

    AC to 24VDC, 0.5A Gigabit PoE Adapter

    • Power Method

    24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

    • ESD/EMP Protection

    ± 24 kV Contact / Air

    • Operating Temperature

    -40 to 70° C (-40 to 158° F)

    • Operating Humidity

    5 to 95% Condensing

    • Shock and Vibration

    ETSI300-019-1.4

    • Certifications

    CE, FCC, IC







    Model: POE-24-12W  (1 Unit)

    Dimensions: 87 x 44 x 29mm (2.43 x 1.73 x 1.14")
    • Weight: 92g (3.25oz)
    • Remote Reset Capability: Yes
    • Reset Button Yes
    • Input Voltage: 90-260VAC @ 47064Hz
    • Input Current:
        0.3A @ 120VAC
        0.2A @ 240VAC
    • Inrush Current:
        <30A Peak @ 120VAC
        <60A Peak @ 230VAC
    • Efficiency: 75+%
    • Output Ripple: 1% Max.
    • Switching Frequency: 50kHz
    • Line Regulation: ±1%
    • Load Regulation: ±3%
    • 2-Pair Powering: Pins 4,5(+) and Pins 7,8(-)
    • Operating Temperature: 0 to 40°C (32 to 104°F)
    • Storage Temperature: -30 to 70°C (-22 to 158°F)
    • Operating Humidity: 35 to 95% non-condensing
    • AC Connector: IEC-320 C6
    • Data IN/PoE: RJ45 Shielded Socket
    • Surge Protection: Difference and Common Mode
    • Clamping Protection: 11V Data, 60V Power
    • Max. Surge Discharge: 1500A (8/20us) Power
    • Peak Pulse Current: 36A (10/1000us) Data
    • Shunt Capacitance: <5pF Data
    • Response Time: <1ns
