UAP-AC-SHD-US-2PK

Ubiquiti

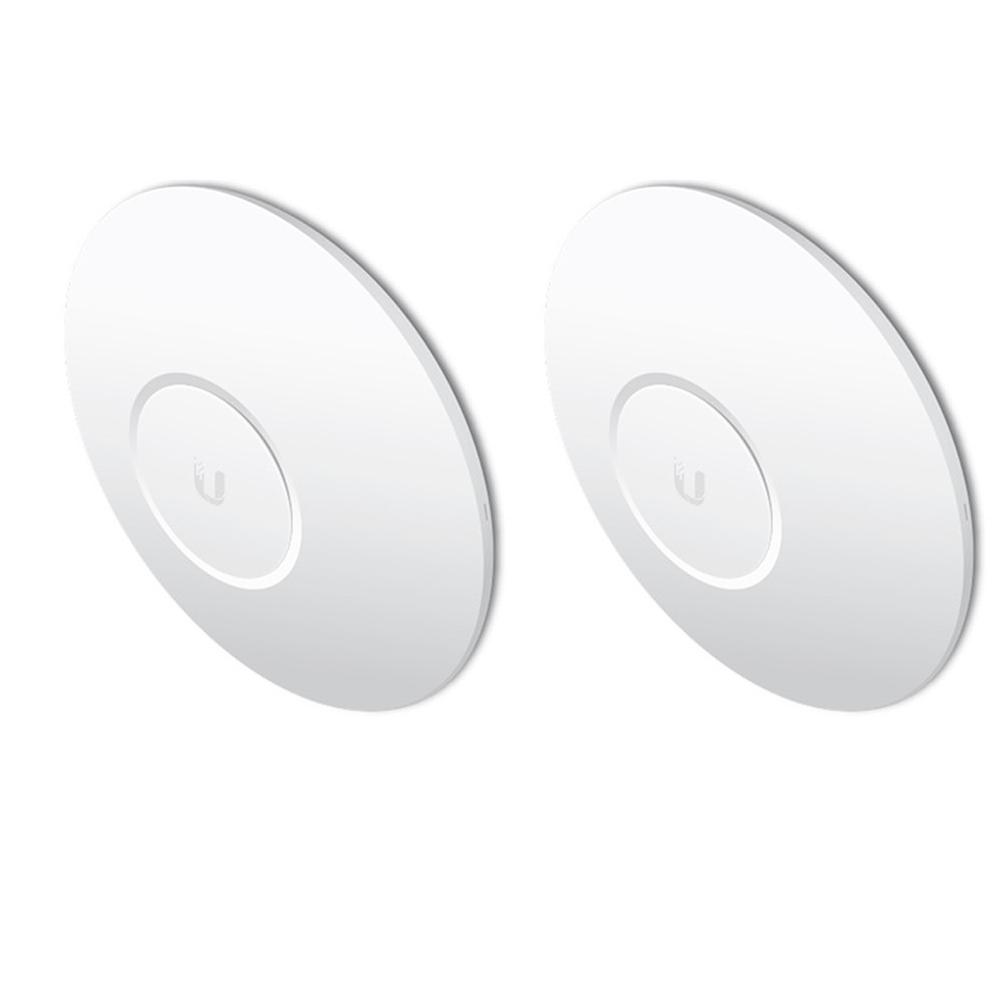

Ubiquiti UniFi AC SHD UAP-AC-SHD-US 802.11AC Dual Band Access Point Dedicated Security Radio (2Pack)


Model#: UAP-AC-SHD-US-2PK

Sku: IT2006



MSRP: $1,029.99


Out of stock

Model: UAP-AC-SHD-US (2 Pack)

                                   Unifi SHD Access Point

                  Unifi AC High Density 802.11ac with Dedicated Security Radio

Deploy UniFi AC HD AP in high-density environments requiring maximum wireless performance. The UniFi AC HD AP features simultaneous dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+ compatibility. The Wave 2 MU-MIMO technology allows the AP to communicate with multiple clients at the same time - significantly increasing multi-user throughput and overall user experience. The UniFi AC HD AP is the first UniFi 802.11ac Wave 2 AP. It combines the performance increases from MU-MIMO technology and the use of 4x4 spatial streams to deliver up to 125% greater performance than a typical Wave 1 AP.


  • Radio Hardware Acceleration

Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency.



  • CPU Hardware Acceleration

 Dedicated hardware offload for QoS, guest control, and client management



  • Optimized for MU-MIMO

Antenna system optimized for 802.11ac Wave 2 MU-MIMO beamforming

Product Specifications


• Dimensions: 220 x 220 x 49.1mm (8.66 x 8.66 x 1.89")


• Weight: 700g (1.54lbs)


• Weight w/ Mounting Kits: 830g (1.83lbs)


• Networking Interface: (2) 10/100/1000 Ethernet Ports


• Buttons: Reset


• Power Method: Passive Power over Ethernet (48V), 802.3at PoE+ Supported


• Supported Voltage Range: 44 to 57VDC


• Power Supply: 48V, 0.5A PoE Gigabit Adapter


• Power Save: Supported


• Maximum Power Consumption: 17W


• TX Power:
     2.4GHz: 6-25dBm
     5GHz: 6-25dBm


• Antennas:
     2.4GHz: (2) Dual-Port, Dual-Polarity Antennas, 3dBi each
     5GHz: (2) Dual-Port, Dual-Polarity Antennas, 4dBi each


• Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2


• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)


• BSSID: Up to Four per Radio


• Mounting: Wall/Ceiling (Kits Included)


• Operating Temperature: -10 to 70°C (14 to 158°F)


• Operating Humidity: 5 to 95% non-condensing


• Certifications: CE, FCC, IC



Advanced Traffic Management


• VLAN: 802.1Q


• Advanced QoS: Per-User Rate Limiting


• Guest Traffic Isolation: Supported


• WMM: Voice, Video, Best Effort, and Background


• Concurrent Clients: 500+




Supported Data Rates (Mbps)


• 802.11a: 6, 9, 12,18, 24, 36, 54 Mbps


• 802.11n: 6,5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)


• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)


• 802.11b: 1, 2, 5.5, 11 Mbps


• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps





Product Includes:


• (1) UniFi AP AC HD


• (1) Mounting Bracket


• (1) Ceiling Backing Plate


• (4) Flat Head Screws


• (4) Keep Nuts


• (4) Screws


• (4) Screw Anchors


• (1) Gigabit PoE (48V, 0.5A) with Mount Bracket


• (1) Power Cord


• (1) Quick Start Guide
