NBE-2AC-13-US-2PK

Ubiquiti

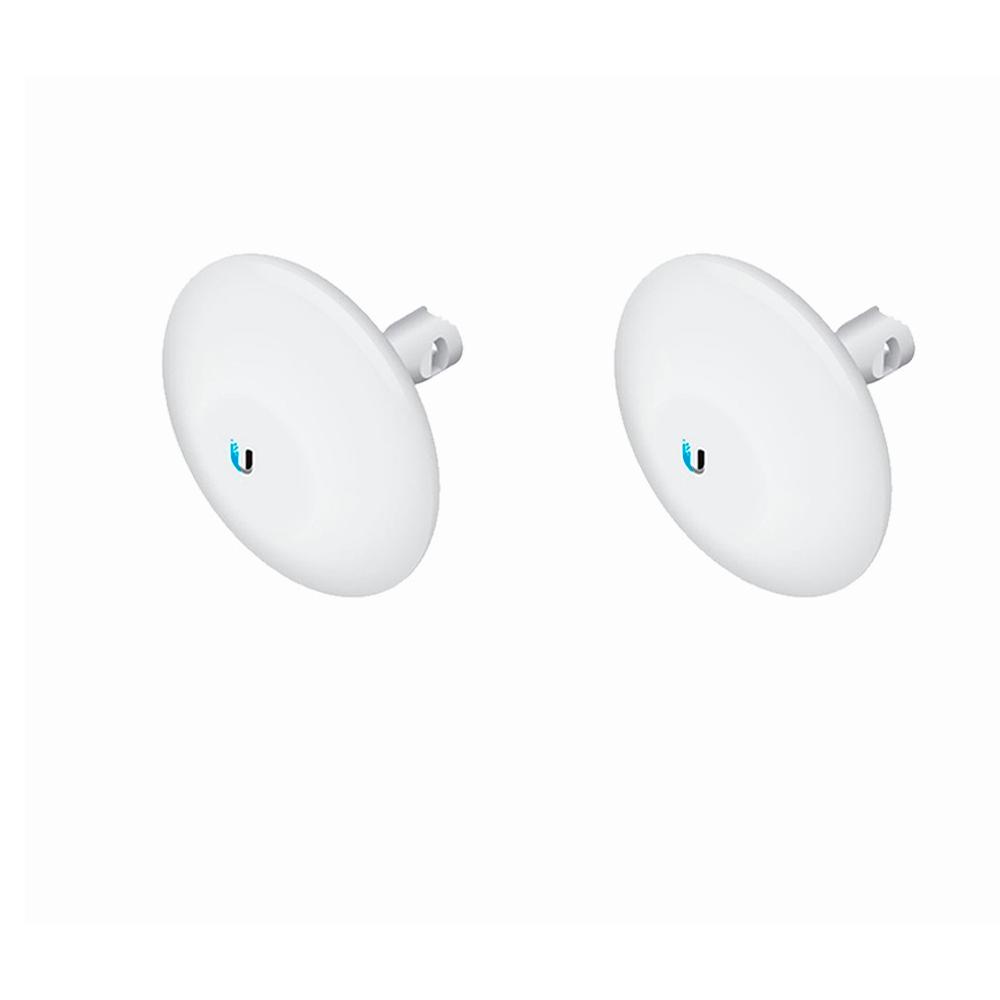

Ubiquiti NanoBeam AC NBE-2AC-13-US airMAX Bridge 2.4Ghz 13dBi CPE Wireless Management (2-Pack)


Product Highlights
  • Ubiquiti Networks NanoBeam AC NBE-2AC-13-US High-Performance airMAX ac Bridge 2.4Ghz 13dBi CPE with Dedicated Wi-Fi Management
  • Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
  • The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
  • The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • The NanoBeam AC features enhanced protection against ESD events.

    • Model#: NBE-2AC-13-US-2PK

    Sku: IT2021

    Out of stock

    Model: NBE-2AC-13-US  (2 Pack)

                                                 NanoBeam AC

                                             High-Performance airMAX ac Bridge

    Ubiquiti NanoBeam 2AC 13Dbi 2.4Ghz 802.11N MiMO Antenna, 150+ Mbps, Range 10+ Km (NBE-2AC-13) The NanoBeam 2AC utilizes a stronger RF energy beam width for better noise filtration. It features a one direction focus for a stronger frequency signal.





    • Management Wi-Fi Radio

    The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    • Improved Surge Protection

    The NanoBeam AC features enhanced protection against ESD events.

    • Superior Processing

    Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.



    • Incredible Antenna “Beam” Performance

    The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

    Product Specifications:


    • Dimensions (Mount Included): 189 x 189 x125mm (7.44 x 7.44 s 4.92")
    • Weight (Mount Included): 530g (1.17lb)
    • Operating Frequency: 2412 -2462 Mhz
    • Gain: 13dBi
    • Networking Interface: (1) 10/100/1000 Ethernet port
    • Enclosure : Outdoor UV Stabilized Plastic
    • Max. Power Consumption: 8.5W
    • Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
    • Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
    • Wind loading: 45.4 N@ 200 km/h (10.2 lbf @ 125 mph)
    • Wind Survivability: 200 km/h (125mph)
    • Certifications: CE, FCC, IC
    • Mounting: Pole-Mount (Kit included) / Wall-Mount (Not Included)
    • ESD/EMP: ±24kV Contact / Air
    • Operating Temperature: 5 to 95% Noncondensing


    Product Includes:


    • 1 x Ubiquiti NanoBeam 2AC US
    • 1 x Ball Joint Mount
    • 1 x Lock Ring
    • 1 x Metal Strap
    • 1 x Gigabit PoE Adapter with Mounting Bracket
    • 1 x Power Cord
    • 1 x Quick Start Guide
