AF-11FX-BD1

Ubiquiti

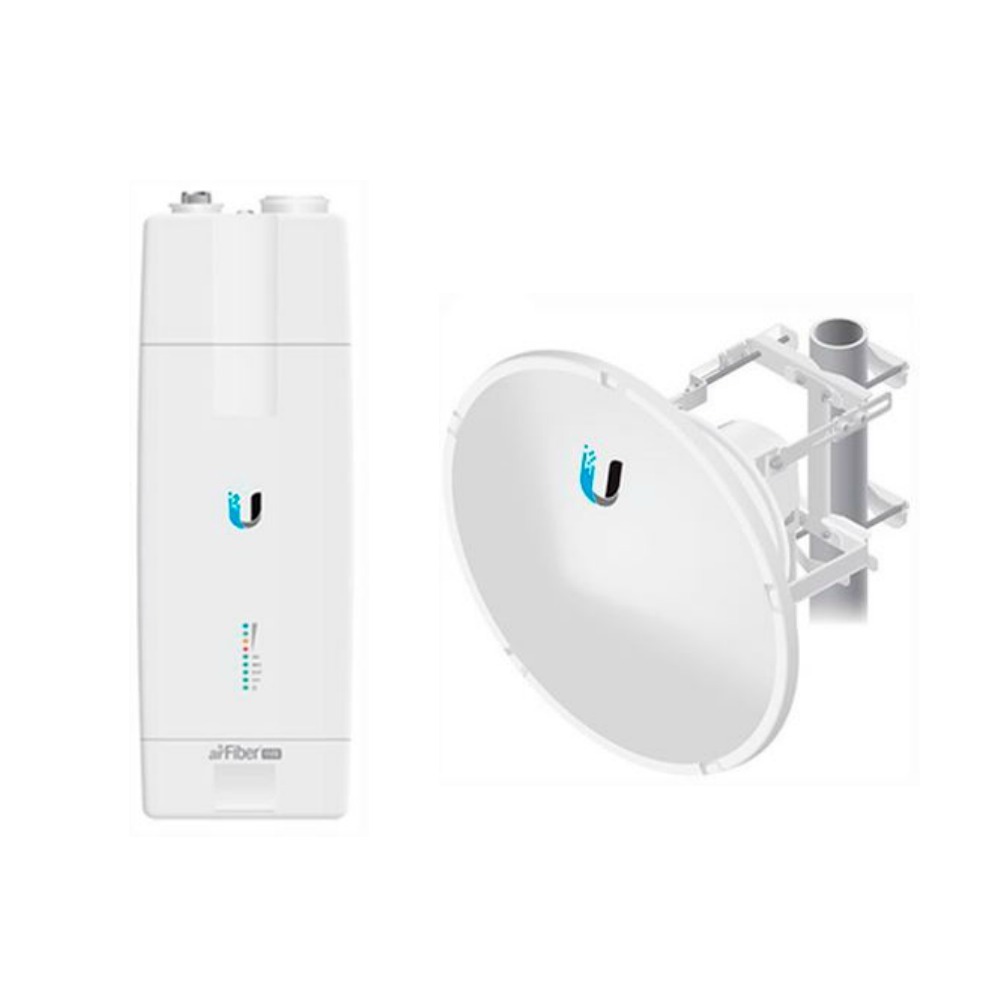

Ubiquiti airFiber X AF-11FX Licensed Backhaul Radio 11GHz WITH airFiber X Antenna AF-11G35 35dBi


Model#: AF-11FX-BD1

Sku: IT2026



MSRP: $979.00


Out of stock

Model: AF-11FX

                              Licensed Backhaul Radio

                                                           airFiber 11FX

The airFiber AF-11FX, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band.

The AF-11FX breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity. For maximum flexibility, the airFiber AF-11FX works with the Ubiquiti AF-11G35 antenna, or with most third-party antennas using an optional adapter kit (not included).



  • Advanced Engineering

Ubiquiti’s INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.

  • Power Source Options

Support for PoE or DC power gives you the flexibility to power the AF-11FX separately from Ethernet traffic.

  • Reversible Duplexers

Each AF-11FX requires one or two Duplexers (sold separately; models AF-11FX-DUP-H and AF-11FX-DUP-L).



  • Channel Configuration

The airFiber AF-11FX can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements. The AF-11FX also features different channel widths to suit your deployment needs, and you can independently configure TX and RX channel frequencies

+

Model: AF-11G35

                                 airFiber X Antenna

                                        Slant 45 Antenna for airFiber

The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.The AF-11G35 is ideal to use with airFiber AF-11FX Radio offering Powerful Performance for Long-Range.

Ubiquiti Networks introduces the airFiber AF-11G35 antenna, designed for use in the licensed 11 GHz band. Break free of the crowded 5 GHz spectrum by pairing the airFiber AF-11G35 antenna with the airFiber AF-11FX radio (available separately), to create the endpoint of an 11 GHz high-performance, full-duplex, Point-to-Point bridge or network backhaul.

The airFiber AF-11G35 antenna delivers SISO or 2x2 MIMO, dual-polarity performance. On the right is one example of how the AF-11G35 antenna with the AF-11FX radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the WISP’s customers.





  • Compact Footprint for Deployment Flexibility

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.



  • Plug and Play Integration

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.



  • Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.







Model: AF-11FX

  • Dimensions 327 x 112 x 86 mm (12.87 x 4.41 x 3.39")
  • Weight 2.26 kg (5.0 lb)
  • Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
  • Power Method Passive Power over Ethernet, DC Power Block
  • Supported Voltage Range 38-56VDC
  • Certifications FCC Part 101, ETSI EN 302 217
  • Networking Interface (1) 10/100/1000 Ethernet Port  (1) 10/100 Ethernet Port
  • System Processor INVICTUS™ 2 IC
  • Maximum Throughput 1.2+ Gbps
  • Wireless Modes SISO/MIMO
  • Radio Operating Frequency 10.7-11.7 GHz (Depends on Regulatory Region1)

+

Model: AF-11G35

  • Integrated Radome
  • 11 GHz
  • 35 dBi Gain
  • 60 dB Front-to-Back Ratio
  • 2:1 Max. VSWR
  • Pole Mountable
